4. APPLIANCE DESCRIPTION
The conditioner consists of indoor and outdoor units connected by
pipelines.The conditioner may be controlled from a remote control board
orfromanindoorunitcontrol panel.

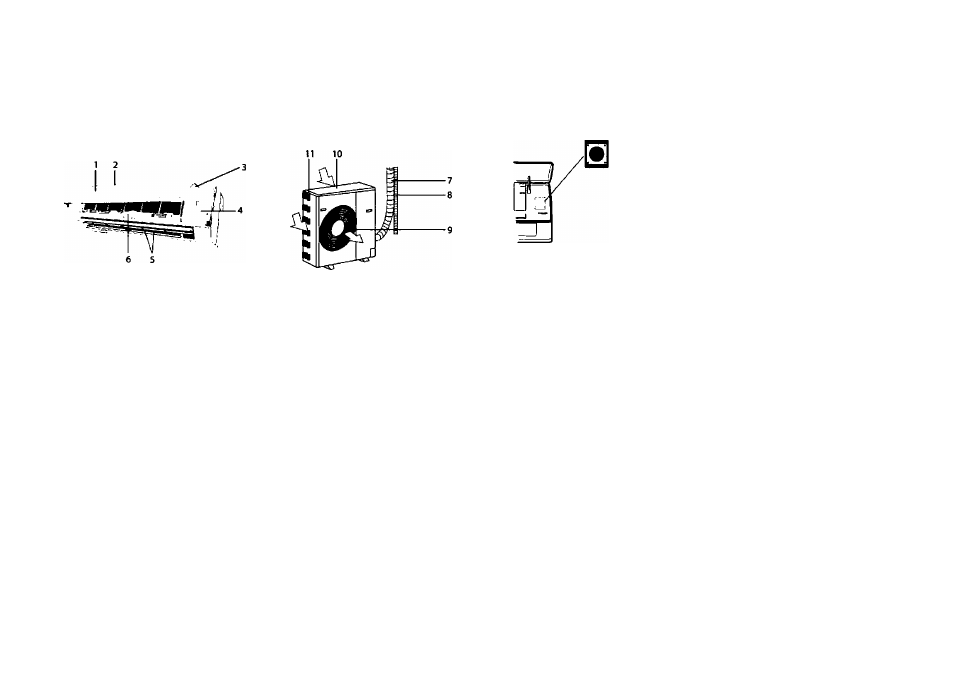

Rgure 1. Appliance description
1 .Conditioner unit for indoor installation.
2.Air-intakegrille of the indoor unit.
3.1 ndication panel.
4. Control panel (start/stop button, mode selection button) if there is no remote
control board.
5. BIinds (deflectors) fordistribution of treated air.
6. Air outlet of the indoor unit.
y.Copper tube for gas (freon), connection line.
S.Tube for condensate removal.
9. Air-outlet grille of the outdoor unit.
10. Conditioner unit for outdoor installation.
11. Air-intake grilles of the outdoor unit.
5. DELIVERY SET
Complete set of air conditioner (split system) includes:
Conditioner unit for indoor installation-1 piece
Conditioner unit for outdoor installation -1 piece
Remote control board-1 piece
Batteries for remote control board - 2 pcs.
User manual-1 piece
Guarantee slip-1 piece
Packing of indoor-installation unit-1 piece
Packing of outdoor-installation unit -1 piece
ENGLISH
6. APPLIANCE CONTROL
The conditioner may be controlled from a remote control board orfrom an
indoor unit control panel.
Figure 2. Description of indoor unit control panel
If the remote control board is lost or cannot be used at the moment, you
may use a control button «on/off» located behind the front panel.
For that, open the front panel carefully by pulling it from the left and
right. Press the control button to select a needed mode.
1. If you press the button once, the conditioner will start working in
cooling mode. In 30 minutes the conditioner will switch to automatic
mode.
2. If you press the button twice, the conditioner will start working in
heating mode. In 30 minutes the conditioner will switch to automatic
mode.
3. If you press the button for the third time, the conditioner will turn off.
4. «Auto-restart» function: switching off and switching on. With the use of
this function the conditioner may keep the specified settings after
shutdown or voltage drop. To cancel the function, hold the «on/off»
button on the conditioner for 10 seconds until you hear an audio signal. If
you hold the «on/off» button on the conditioner repeatedly for 10
seconds until you hear an audio signal, the «Auto-restart» function will be
activated.
The front panel of air conditioner there is a display that shows the current
temperature and defined, and indicators * display modes and settings:
power, night mode, temperature, timer, compressor operation (see Figure
below**).
The front panel of the conditioner comprises a display showing specified
and current temperature, as well as indicators* reflecting modes and
parameters of work: power supply, sleep mode, temperature, timer,
compressor operation (see the figure below**).
