Two Way Car Alarm System MONGOOSE EMS 1.9R
3
ENGLISH
10. To enable the mode push button 1 of the transmitter, to disable it push button 2. If the
Software switch includes more than two states, follow the instruction within a respective
line of the table below.
11. After altering the switch mode value press the override switch to proceed to the next
switch. To proceed to the next switch group, turn the ignition off/on and repeat the above
procedure.
12. To exit this programming mode, turn the ignition off and press the override switch.
Installer Software Switches
Software Switch Function
Default
Key#1
Key#2
(LED ON)
(LED OFF)
1 1
Electric/Vacuum Locking
0.6s
0.6s
4s
1 2
Single/Double Locking Pulse
Single
Single
Double
1 3
Single/Double Unlocking Pulse
Single
Single
Double
1 4
Armed Output
Grounded while armed
Grounded while armed
Grounded while
(Brown/white wire)
(for NC relay)
(for NC relay)
disarmed (for NO relay)
1 5
Blocking in Trouble Situation
OFF
ON
OFF
1 6
Positive Programmable Input
Door (+) Input
Door (+) Input
Shining Light Warning
1 7
Dome Light Car Software Switch
OFF
ON
OFF
1 8
Programmable Output
Latch Output
Latch Output
Brake/Clutch Output
2 1
Manual/Automatic Transmission
Manual
Manual
Automatic
2 2
Turbo Timer Mode
OFF
Press 1 time –
OFF
3 minutes delay
Press 2 times –
5 minutes delay
2 3
Gasoline/Diesel Engine Type
Gasoline
Gasoline
Diesel
Attempt #
1 2 3 4
1 2 3 4
Wait to Start, sec
3 5 7 10
10 15 20 25
2 4
Flashing the Indicators when Engine is running after
OFF
ON
OFF
remote start
2 5
Remote Starter Control Input
Tachometer (RPM) Sensor Tachometer (RPM) Sensor Generator/Oil Sensor
2 6
Manual arming with the key via the CDL control input
OFF
ON
OFF
2 7* RPM Learning
On Together
2 8** RPM Cranking Time Adjustment
8
Increase (Maximum 16)
Decrease (Minimum 1)
3 1
Comfort/2 Stage unlock
Comfort
Comfort
2 stage Unlock
3 2
ACC Output
1 minute
1 minute
2 seconds
3 3*! Handbrake Controlled Ignition Support
ON
ON
OFF
3 4
Engine Shut Down
After Disarming
After Disarming
1 minute after
disarming (or with
release of handbrake
1
)
1
Only if Handbrake Controlled Ignition Support is set to ON.
*! WARNING! It Is Recommended always use the Handbrake Controlled Ignition Support ON
mode. Enabling the Handbrake Controlled Ignition Support OFF mode is realized under
responsibility of user solely.
When enabling the Handbrake Controlled Ignition Support OFF mode take necessary measures,
guaranteeing stillness of car during remote (automatic) start the engine, as well as for the whole
time of parking!
* Engine RPM Idle Frequency Learning
The idle frequency of the RPM signal must be taught to the system. This is done by using
installer switch 2 7 as follows:
Инструкция по установке
EMS 1.9R
18

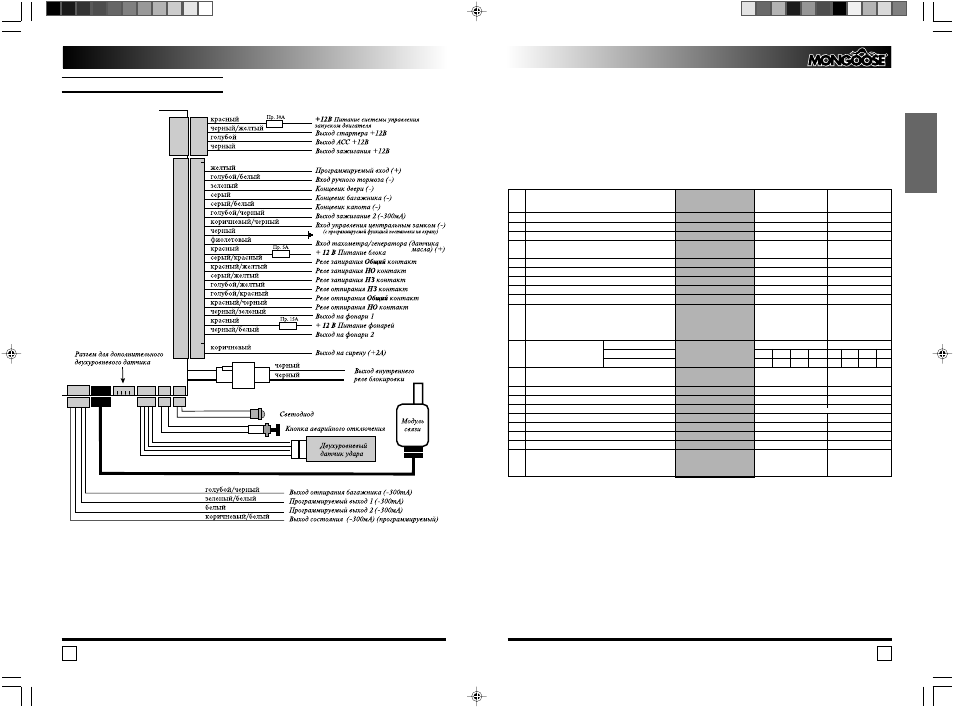

СХЕМА ПОДКЛЮЧЕНИЙ
