3 Connections
Make.the.following.connection.to.use.this.
product.
C onnecting to a TV
Connect.the.product.to.TV.to.view.disc.play.
Select. the. best. video. connection. that. TV.
can.support:

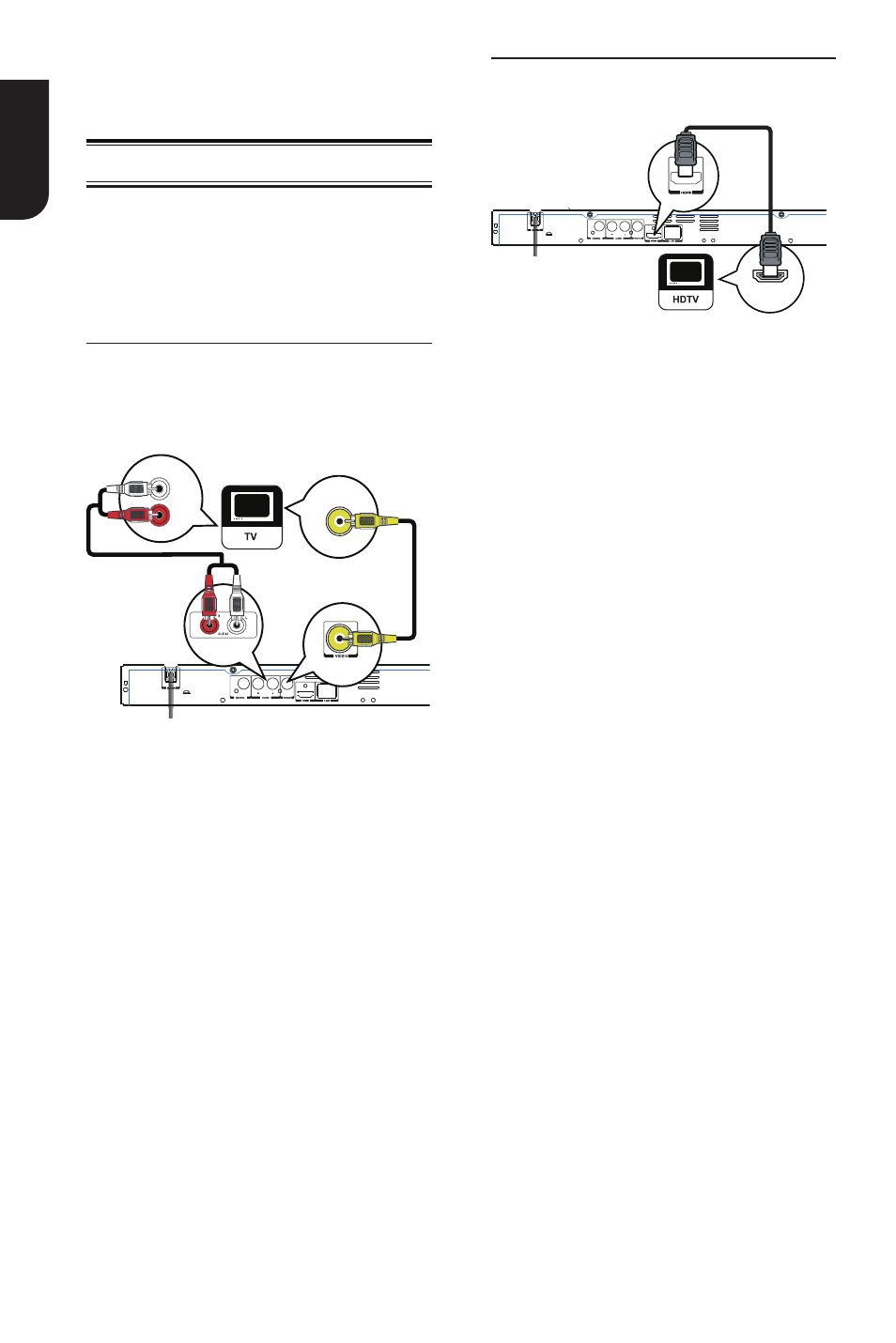

Option 1:.Connect.to.the.composite.video.
jack.(VIDEO)
Option 2:.Connect.to.the.HDMI.Jack
Option 1: Connect to the composite
video jack (VIDEO)
You.can.connect.this.product.to.a.TV
through.the.composite.video.cable.which
provides.standard.picture.quality.
AUDIO IN
VIDEO IN
1..Connect.a.composite.cable.from.the.
VIDEO.OUTPUT.jack.and.analogue.AUDIO.
OUTPUT.jacks.on.this.product.to.the.video.
input.jack.(yellow).and.audio.input.jacks.
(white/red).on.the.TV.
Note:
-Connect this unit directly to the TV. If the
composite Audio / video cables are connected
to a VCR, pictures may be distorted due to the
copy right protection system.
Option 2: Connect to the HDMI Jack
This.type.of.connection.provides.better.
picture.quality .
HDMI IN
1..Connect.a.HDMI.cable.from.the.HDMI.
output.jack.on.this.product.to.the.HDMI.
input.jack.on.the.TV.
Notes:
– If the TV has a DVI connector only, connect
via an HDMI/DVI adapter. Connect an audio
cable for sound output.
– You can optimize the video output by
pressing the HDMI button repeatedly to select
the best resolution which the TV can support.
– When the player is connected to both VIDEO
OUTPUT jack and HDMI OUTPUT jack, resolution is
set to 720p/1080i/1080p, there will be no video
output through VIDEO OUTPUT jack.
