Connections
- 6 dB + 6 dB - 6 dB +6 dB - 6 dB + 6 dB - 6 dB +6 dB
When making or changing connections, always turn off the
power and disconnect the power cord from its outlet.
Also, be sure to read the operating instructions for the other
components to which you are connecting these speakers.
Do not connect the power cord until all other connections are
completed.
Use only the furnished accessory power cord.
In the event that the desired installation requires a longer Link
cable than the one provided, purchase a commercially available
MINI DIN 8a extension cable and connect it to the furnished Link
cable. Note:
! When controller and Link cable are connected, set the
speaker’s main LEVEL dial fully counterclockwise to the MIN
position, since an unexpected loud sound could be emitted
from the speaker in the event the controller and Link cable are
suddenly detached.
! When connecting the controller, set the controller’s LEVEL
dial fully counterclockwise to the MIN position, then adjust the
sound level as desired after the connection is complete. If the
connection is performed when the controller’s LEVEL dial is at a
high setting, an unexpected loud sound could be emitted from
the speaker.
When the controller is connected, the speaker’s main LEVEL
dial function is disabled.
WARNING
Do not use a commercially available MINI DIN 8a extension
cable alone; always connect it to the Link cable furnished as
an accessory with this unit, since malfunctions, fire, or electric
shock could result if the furnished cable is not used.
* Illustration depicts the S-DJ08 model.

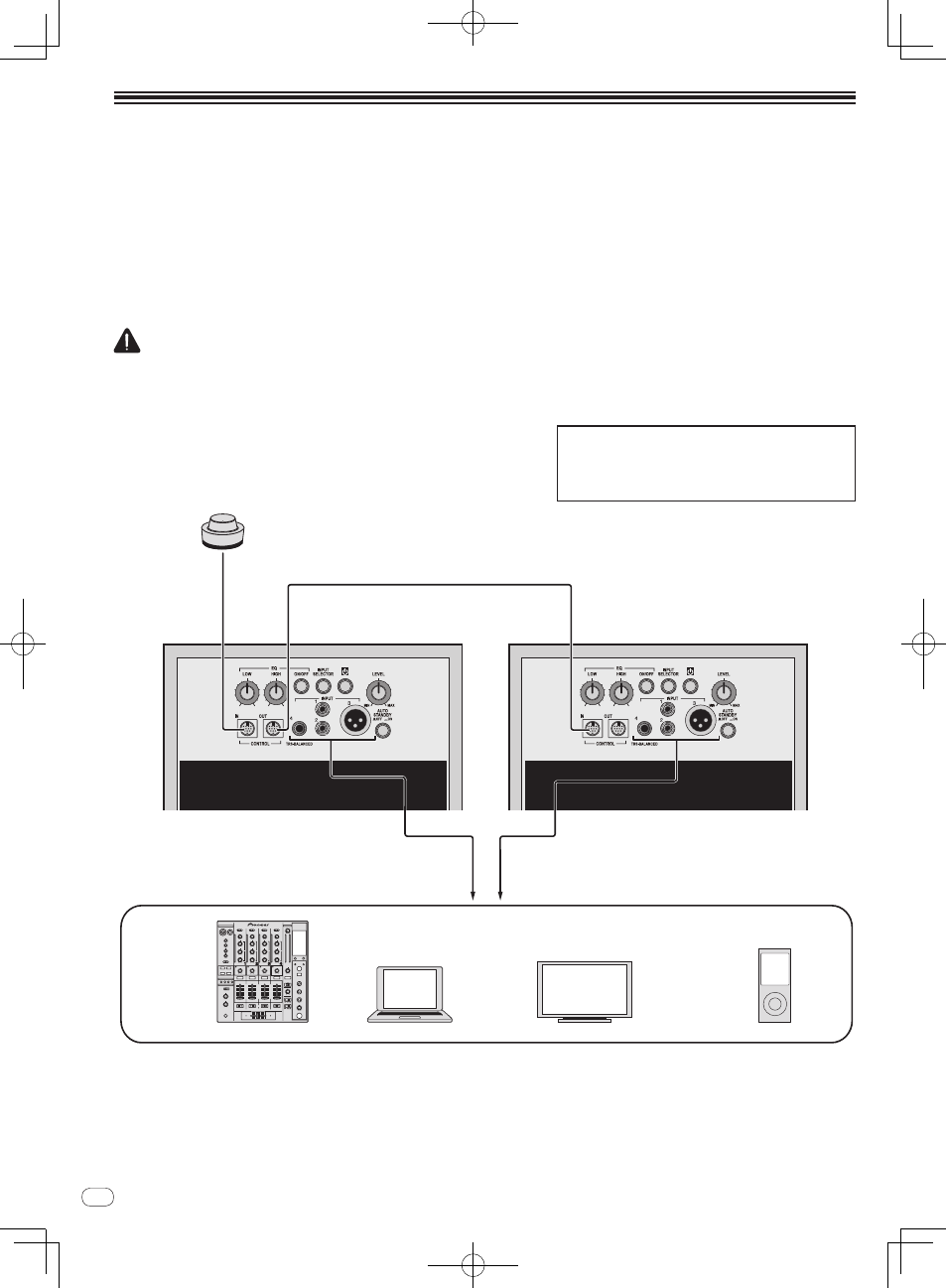

Controller
Link cable (accessory)
Speaker rear panel
Connect to INPUT 1-4
DJ mixer Portable audio
Speaker rear panel
If the controller is connected to one speaker’s
CONTROL IN connector, use the Link cable to
connect that speaker’s CONTROL OUT connector
to the other speaker’s CONTROL IN connector.
PC TV
