En 6
- 6 dB + 6 dB - 6 dB +6 dB
4
h
f
a
g
b
c
d
5 6 7 8 9
e
4 EQ LOW dial
Use to adjust low-frequency sounds. This dial functions only
when the EQ ON/OFF button is set to ON.
5 EQ HIGH dial
Use to adjust high-frequency sounds. This dial functions only
when the EQ ON/OFF button is set to ON.
6 EQ ON/OFF button
Use to turn equalizer ON and OFF.
7 INPUT SELECTOR button
Each time button is pressed, the input alternates in the order
INPUT 1
d 2 d 3 d 4.
8 Power ON/Standby button (u)
Use to switch unit between power ON and Standby modes.
When the button is pressed, power is turned on; when the
button is pressed again, the unit enters the standby mode.
9 LEVEL dial
Use to adjust the sound level (volume). This dial operates
when no controller is connected.
a CONTROL IN connector
Use to connect the accessory controller or accessory Link
cable.
b CONTROL OUT connector
Use to connect the accessory Link cable.
c INPUT 4
Balanced-input phone jack.
Note:
! Unbalanced-type cables with phone plugs can also be used,
but the volume of sound will be reduced. When you desire
higher volumes of sound, use a balanced cable equipped with
a TRS phone plug.
d INPUT 1, INPUT 2
RCA pin-type unbalanced input jacks.
e INPUT 3
XLR type balanced input connector. The connector’s pin array
is as follows: No. 1 Ground, No. 2 Hot, and No. 3 Cold.
f AUTO STANDBY ON/OFF switch
Use to turn the power-save function ON/OFF.
g Main POWER switch
Use to turn main power ON and OFF.
h AC IN
Connect the accessory power cord here and to an AC
power outlet. Do not plug in the power cord until all other
connections have been completed. Use only the furnished
accessory power cord.

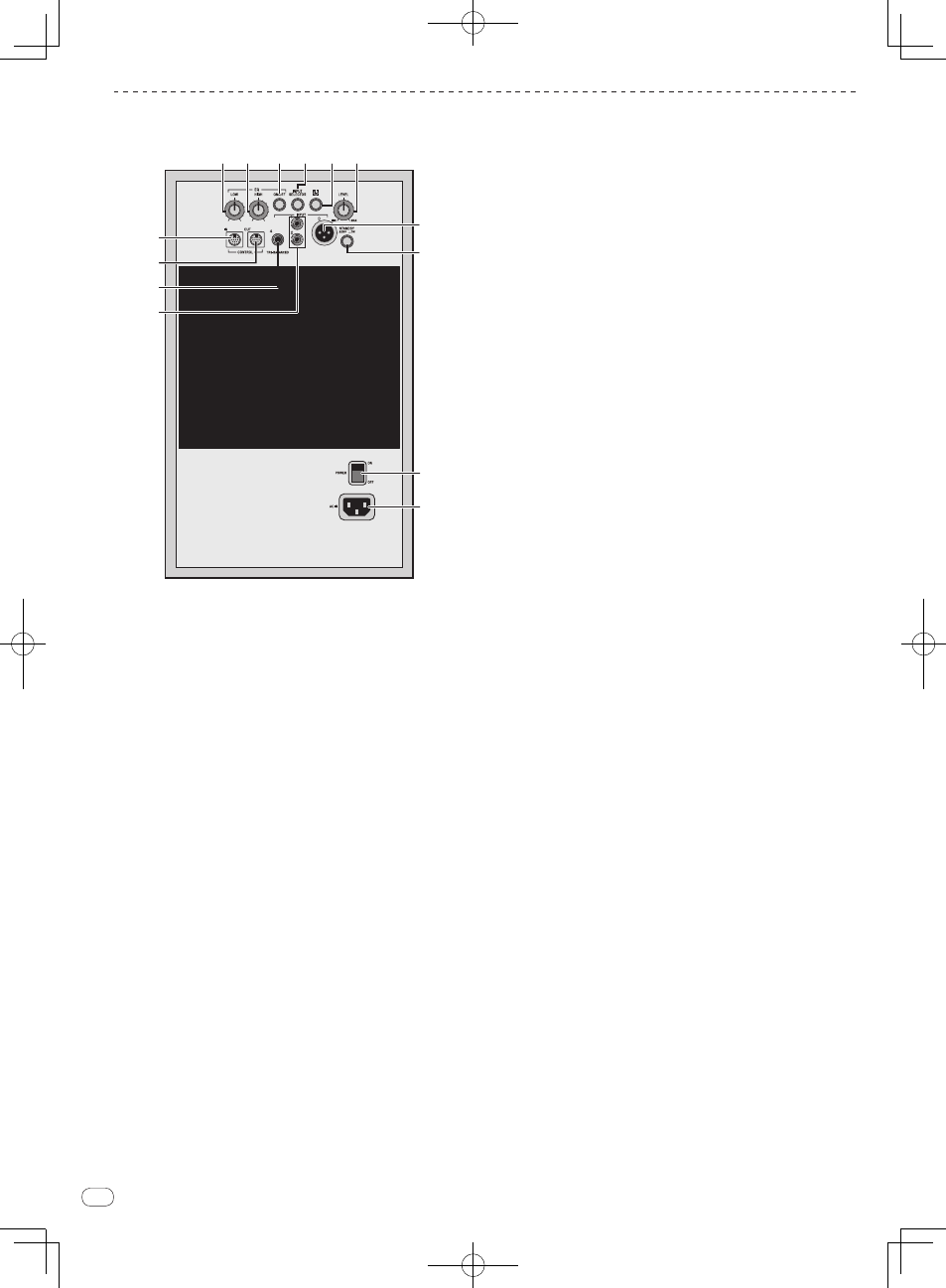

Rear Panel Facilities
* Illustration depicts the S-DJ08 model.
