1. (-) N/A
2. (-) AUX 1 output
3. (-) Parking lights
1. GRAY/LIGHT BLUE ... N/A
2. BLUE/WHITE ... ( - ) AUX 1 output
3. YELLOW/WHITE ....... ( PARKING LIGHTS -)
12- YELLOW .......................... (+) Glow plug input
11- GREY ............................... (-) NEG. Door input
10- WHITE .............................. (-) GROUND when running
9- PURPLE ............................ (-) EXT. TRIGGER input
8- ORANGE ........................... (-) Parking Brakes input
7- WHITE/ORANGE ............... (-) Starter kill output
6- BLUE/WHITE ..................... (+) POS. Door input
5- WHITE/GREEN .................. (-) DISARM
4- WHITE/BROWN ................. (-) REARM
3- GREEN .............................. (-) UNLOCK
2- BROWN ............................. (-) LOCK
1- BLUE ................................. (-) TRUNK
Loop
LOOP
V1.00 MO - Jan. 17, 2008
Jumpers for second outputs
(Starter, Ignition, Accessories)
Starter 2 Jumper
Ignition 2 Jumper
Accessories 2 Jumper
INV-200 Connector
INV-200 CONNECTOR
(Door Lock pulse
inverter)
RS-232 Port
RS-232 port
Bypass/GPS port
Bypass/GPS port
Pager port
Pager port
REAR VIEW OF MODULE
PUSH-BUTTON
VALET SWITCH
(Optional on
certain models)
GREEN ............ 5 th RELAY
PURPLE . .. .. .. .. .. .. STARTER
ORANGE ...ACCESSORIES
(Heater Blower Motor)
YELLOW ........... IGNITION
RED ............+12V (Battery)
RED ..............12V (Battery)
30 A Fuse
30 A Fuse
1- BLACK ........................ GROUND (-)
2- PURPLE ........................... TACH (AC)
3- GREY ................. HOOD SWITCH (-)
4- ORANGE ........ BRAKE SWITCH (+)
5- YELLOW ....... PARKING LIGHTS (+)
15 A Fuse
85
87
(Solenoid Side)
86
30 STARTER WIRE
(Key Side)
IGNITION (+)
N/A
Start Kill Output (-)
87 A STARTER WIRE
Optional Starter Kill Relay
N/A
TACH Threshold: HIGH
TACH Threshold: NORMAL
Programming
Assistance Button
(Hood Switch
Interrupt)
SIDE VIEW OF MODULE
NA

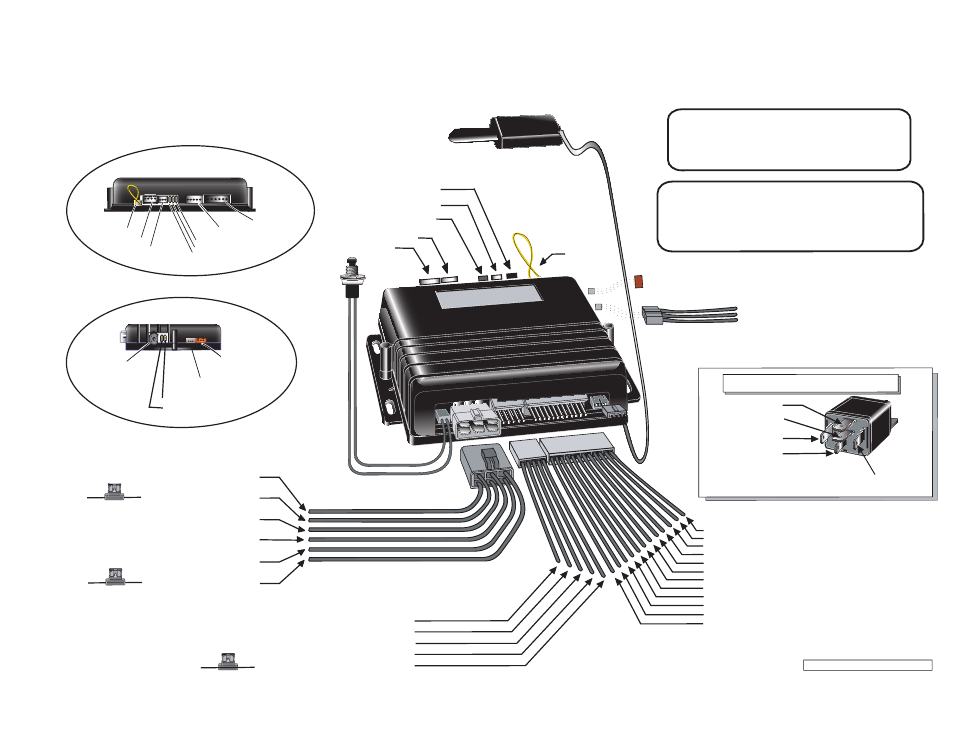

WIRING SCHEMATIC
: For Automatic Transmissions
Cut the yellow loop before plugging
in the module.
Note: This product supports the Trilogix bypass.
To program the Trilogix bypass to the Autostart remote
starter, please ensure that the Trilogix bypass and the
Autostart starter are powered up simultaneously.
