English - 35
About Anynet+
Connecting Anynet + Devices
Anynet + is a function that enables you to control all connected Samsung devices that support Anynet+ with your Samsung TV’s remote.
The Anynet + system can be used only with Samsung devices that have the Anynet+ feature. To be sure your Samsung device has this
feature, check if there is an Anynet+ logo on it.

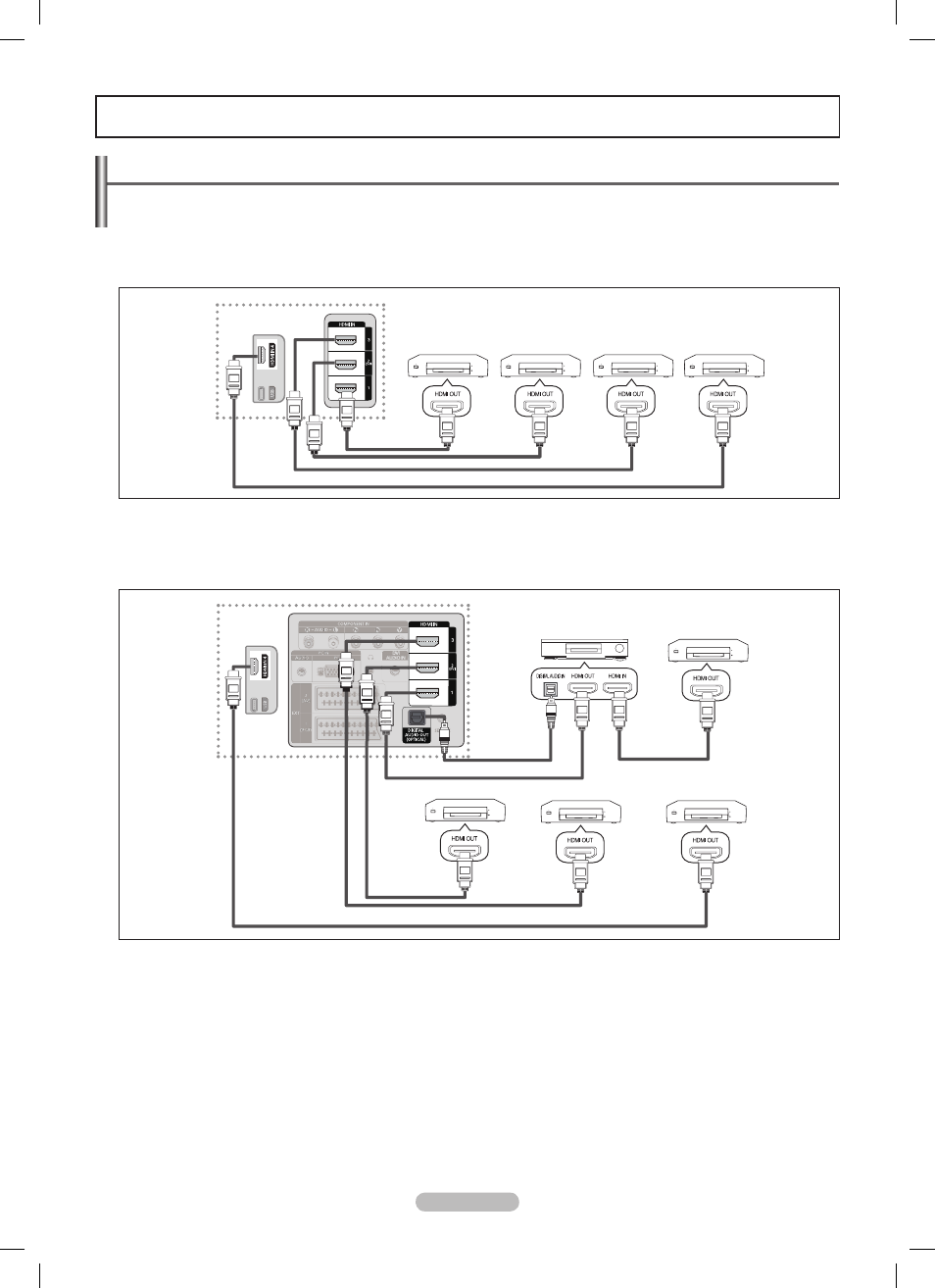

To connect to a TV
❑
1. Connect the HDMI IN (1, 2(DVI), 3 or 4) jack on the TV and the HDMI OUT jack of the corresponding Anynet+ device using an
HDMI cable.
To connect to Home Theater
❑
1. Connect the HDMI IN (1, 2(DVI), 3 or 4) jack on the TV and the HDMI OUT jack of the corresponding Anynet+ device using an
HDMI cable.
2. Connect the HDMI IN jack of the home theater and the HDMI OUT jack of the corresponding Anynet+ device using an HDMI cable.
Connect the Optical cable between the DIGITAL AUDIO OUT (OPTICAL) jack on your TV and the Digital Audio Input on the Home N
Theater.
When following the connection above, the Optical jack only outputs 2 channel audio. You will only hear sound from the Home N
Theater’s Front Left and Right speakers and the subwoofer. If you want to hear 5.1 channel audio, connect the DIGITAL AUDIO
OUT (OPTICAL) jack on the DVD player or Cable/Satellite Box (ie Anynet Device 1 or 2) directly to the Amplifier or Home Theater,
not the TV.
Connect only one Home Theater. N
You can connect an Anynet N
+ device using the HDMI 1.3 cable. Some HDMI cables may not support Anynet+ functions.
Anynet N
+ works when the AV device supporting Anynet+ is in the Standby or On status.
Anynet N
+ supports up to 12 AV devices in total. Note that you can connect up to 3 devices of the same type.
Anynet N
+ supports up to 3 devices simultaneously.
Anynet+
Device 1
Anynet+
Device 2
Anynet+
Device 3
TV
HDMI 1.3 Cable
HDMI 1.3 Cable
HDMI 1.3 Cable
TV
Anynet+ Device 1
Anynet+ Device 2 Anynet+ Device 3
HDMI 1.3 Cable
HDMI 1.3 Cable
HDMI 1.3 Cable
HDMI 1.3 Cable
Home Theatre
Optical Cable
Anynet+
Device 4
HDMI 1.3 Cable
Anynet+ Device 4
HDMI 1.3 Cable
