English - 53

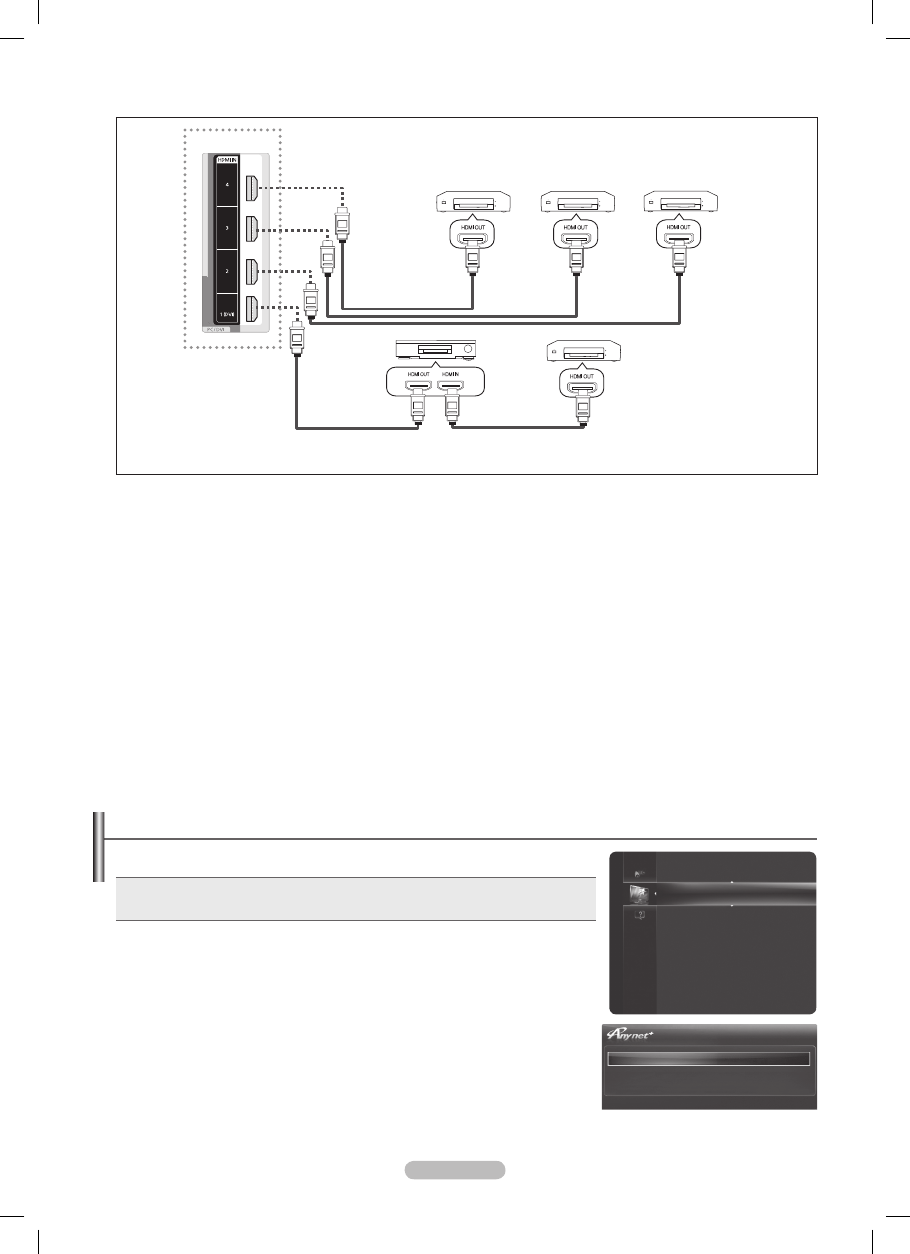

To connect to Home Theater
❑
1. Connect the HDMI IN (1(DVI), 2, 3 or 4) jack on the TV and the HDMI OUT jack of the corresponding Anynet+ device using an
HDMI cable.
2. Connect the HDMI IN jack of the home theater and the HDMI OUT jack of the corresponding Anynet+ device using an HDMI cable.
Connect the Optical cable between the DIGITAL AUDIO OUT (OPTICAL) jack on your TV and the Digital Audio Input on the Home N
Theater.
When following the connection above, the Optical jack only outputs 2 channel audio. You will only hear sound from the Home N
Theater’s Front Left and Right speakers and the subwoofer. If you want to hear 5.1 channel audio, connect the DIGITAL AUDIO
OUT (OPTICAL) jack on the DVD player or Cable/Satellite Box (ie Anynet Device 1 or 2) directly to the Amplifi er or Home Theater,
not the TV.
Connect only one Home Theater. N
You can connect an Anynet N
+ device using the HDMI 1.3 cable. Some HDMI cables may not support Anynet+ functions.
Anynet N
+ works when the AV device supporting Anynet+ is in the Standby or On status.
Anynet N + supports up to 12 AV devices in total. Note that you can connect up to 3 devices of the same type.
TV
Anynet+ Device 1
Anynet+ Device 4 Anynet+ Device 2
HDMI 1.3 Cable
HDMI 1.3 Cable
HDMI 1.3 Cable
Home Theatre
Anynet+ Device 3
HDMI 1.3 Cable
HDMI 1.3 Cable
Setting Up Anynet +
Anynet
❑ + (HDMI-CEC) Setup
Press the T TOOLS button to display Tools menu.
You can also display Anynet+ menu by selecting Tools → Anynet + (HDMI-CEC).
Anynet „ + (HDMI-CEC) → Off / On
To use the Anynet + Function, Anynet + (HDMI-CEC) must be set to On.
When the N Anynet + (HDMI-CEC) function is disabled, all the Anynet+ related
operations are deactivated.
Auto Turn Off → No / Yes „
Setting an Anynet + Device to turn Off Automatically when the TV is Turned Off
The active source on the TV remote must be set to TV to use the Anynet+ function. N
If you set N Auto Turn Off to Yes, connected external devices are also turned off
when the TV is turned off. If an external device is still recording, it may or may not
turn off.
Application
Media Play (USB & DLNA)
Anynet+ (HDMI-CEC) ►
Content Library
Home Network Centre
U Move E Enter R Return
Anynet+(HDMI-CEC) : On ▶
Auto Turn Off : Yes
