english - 1

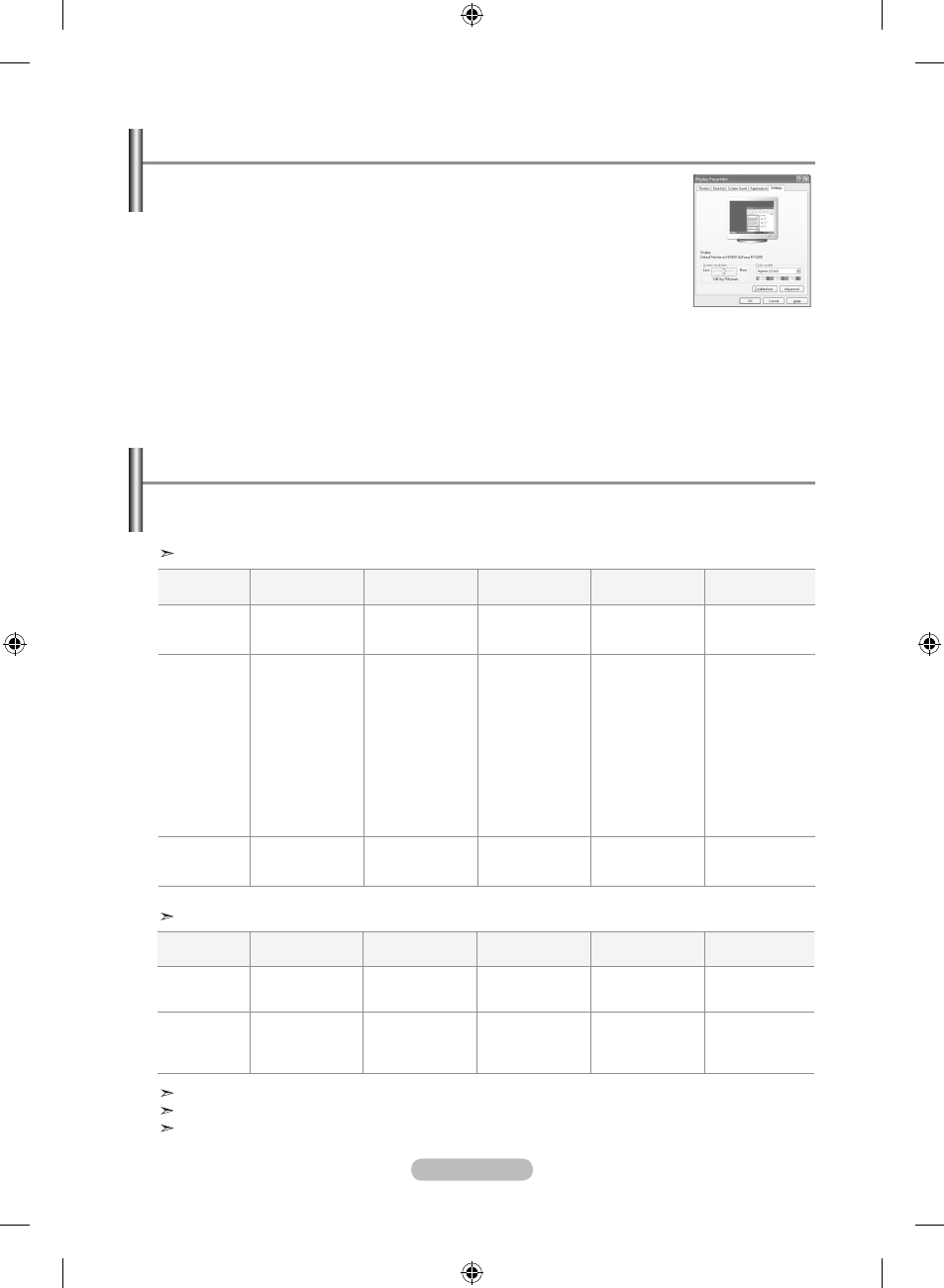

the Windows display-settings for a typical computer are shown below. the
actual screens on your PC may be different depending upon your particular
version of Windows and your particular video card. even if your actual
screens look different, the same, basic set-up information will apply in almost
all cases. (If not, contact your computer manufacturer or Samsung Dealer.)
1. First, click on "Control Panel" on the Windows start menu.
2. When the control panel window appears, click on "Appearance and Themes"
and a display dialog-box will appear.
. When the control panel window appears, click on "Display" and a display dia-
log-box will appear.
. Navigate to the "Settings" tab on the display dialog-box.
The correct size setting (resolution): Optimum- 1440 x 900
If a vertical-frequency option exists on your display settings dialog box, the correct value is
"60" or "60 Hz". Otherwise, just click "OK" and exit the dialog box.
Setting up Your PC Software (Based on Windows xP)
The interlace mode is not supported.
The set might operate abnormally if a non-standard video format is selected.
Separate and Composite modes are supported. SOG is not supported.
Display modes
Both screen position and size will vary depending on the type of PC monitor and its resolution.
the resolutions in the table are recommended. (all resolutions between the supported limits are
supported)
mode resolution
horizontal
Frequency (khz)
Vertical
Frequency (hz)
Pixel Clock
Frequency (mhz)
Sync Polarity
(h/V)
IBm
640Ч350 31.469 70.086 25.175 +/-
720Ч400 31.469 70.087 28.322 -/+
640Ч480 31.469 59.940 25.175 -/-
VeSa
800Ч600 37.879 60.317 40.000 +/+
1024Ч768 48.364 60.000 65.000 -/-
1440Ч900 55.935 59.887 106.500 -/+
1440Ч900 70.635 74.984 136.750 -/+
D-Sub Input
hDmI/DVI Input
mode resolution
horizontal
Frequency (khz)
Vertical
Frequency (hz)
Pixel Clock
Frequency (mhz)
Sync Polarity
(h/V)
IBm 640Ч350
720Ч400
640Ч480
31.469
31.469
31.469
70.086
70.087
59.940
25.175
28.322
25.175
+/-
-/+
-/-
VeSa 640Ч480
640Ч480
800Ч600
800Ч600
800Ч600
1024Ч768
1024Ч768
1024Ч768
1152Ч864
1152Ч864
1440Ч900
1440Ч900
37.861
37.500
37.879
48.077
46.875
48.363
56.476
60.023
53.783
67.500
55.935
70.635
72.809
75.000
60.317
72.188
75.000
60.004
70.069
75.029
59.959
75.000
59.887
74.984
31.500
31.500
40.000
50.000
49.500
65.000
75.000
78.750
81.750
108.000
106.500
136.750
-/-
-/-
+/+
+/+
+/+
-/-
-/-
+ /+
-/+
+/+
-/+
-/+
VeSa gtF
640Ч480
800Ч600
1024Ч768
35.000
43.750
57.672
70.000
70.000
72.000
28.560
45.500
78.434
-/+
-/+
-/-
