English - 5
English
- Samsung is not liable for product damage or personal injury when a non-VESA or non-specified wall mount is used or
the consumer fails to follow the product installation instructions.
- Do not mount the TV at more than a 15 degree tilt.

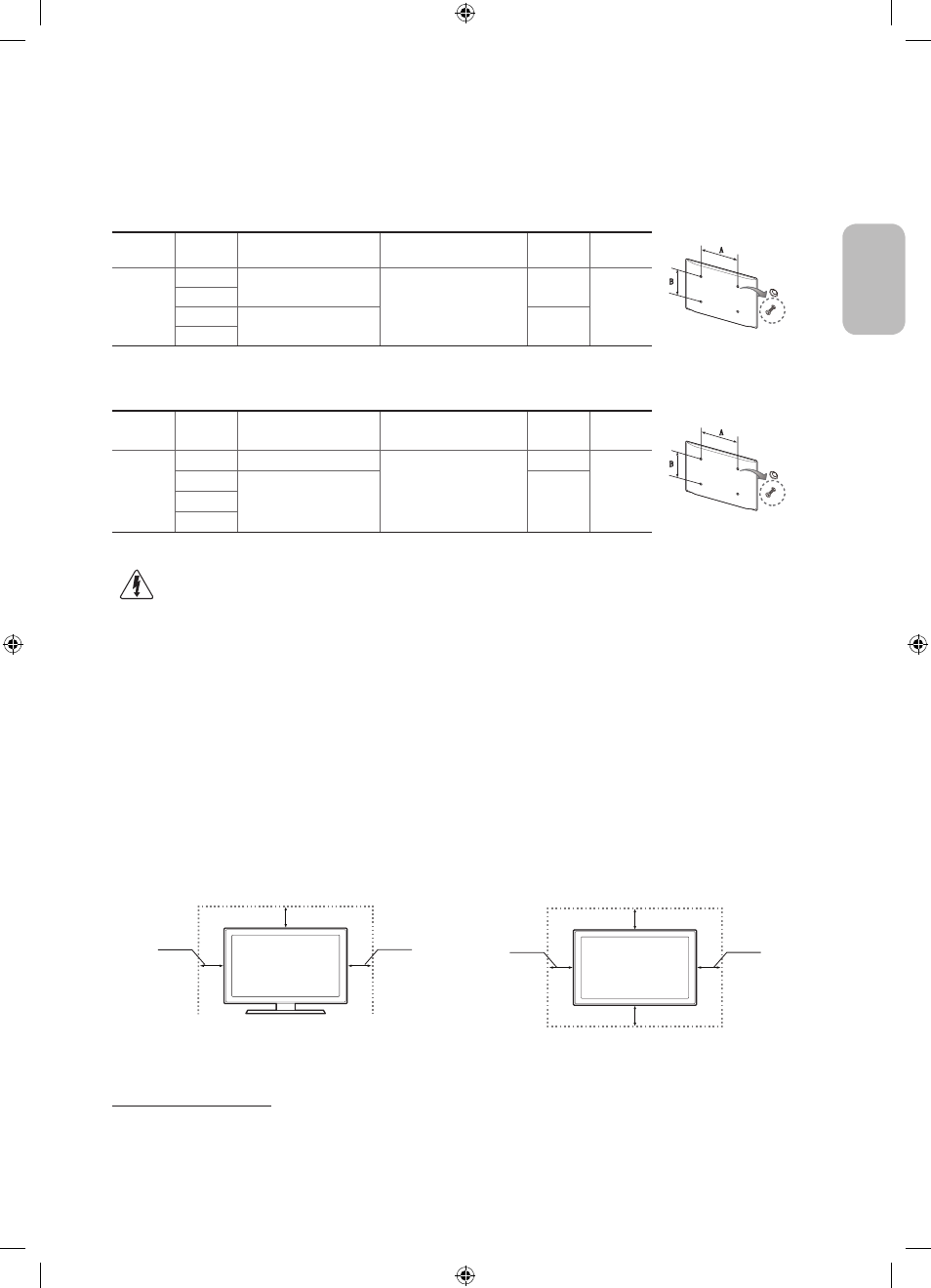

When using a third-party wall mount, note that the assembling screw length(C) is shown below.
LED 5 Series
Product
Family
Inches VESA Spec.(A * B) C (mm)
Standard
Screw
Quantity
LED-TV
32
200 X 200
10.0 ~ 28.0
M6
4
40
46
400 X 400 M8
50
LED 6 Series
Product
Family
Inches VESA Spec.(A * B) C (mm)
Standard
Screw
Quantity
LED-TV
40 200 X 200
10.0 ~ 28.0
M6
4
46
400 X 400 M8 55
60
Do not install your Wall Mount Kit while your TV is turned on. It may result in personal injury due to
electric shock.
Providing Proper Ventilation for Your TV
When you install your TV, maintain a distance of at least 10 cm between the TV and other objects (walls, cabinet sides, etc.) to
ensure proper ventilation. Failing to maintain proper ventilation may result in a fire or a problem with the product caused by an
increase in its internal temperature.
If you use parts provided by another manufacturer, it may cause difficulties with the product or result in injury caused by the
product falling.
- Whether you install your TV using a stand or a wall-mount, we strongly recommend you use parts provided by Samsung
Electronics only.
Installation with a stand. Installation with a wall-mount.
10 cm
10 cm 10 cm
10 cm
10 cm
10 cm
10 cm
Other Cautions
- The actual appearance of the TV may differ from the images in this manual, depending on the model.
- Be careful when you touch the TV. Some parts can be somewhat hot.
