Using a Component (up to 1080p) or an Audio/Video (480i only) and a Scart Cable
✎ In Ext. mode, DTV Out supports MPEG SD Video and Audio only.
✎ When connecting to AV IN , the colour of the AV IN [VIDEO] jack (green) will not match the video cable
(yellow).
✎
To obtain the best picture quality, the Component connection is recommended over the A/V
connection.
AUDIO OUT
R-AUDIO-L
P R P B Y
COMPONENT OUT
EXT
AUDIO OUT
R-AUDIO-L
VIDEO OUT Y
R
W
Y
R
W
R R
B B
G G
R R
W W

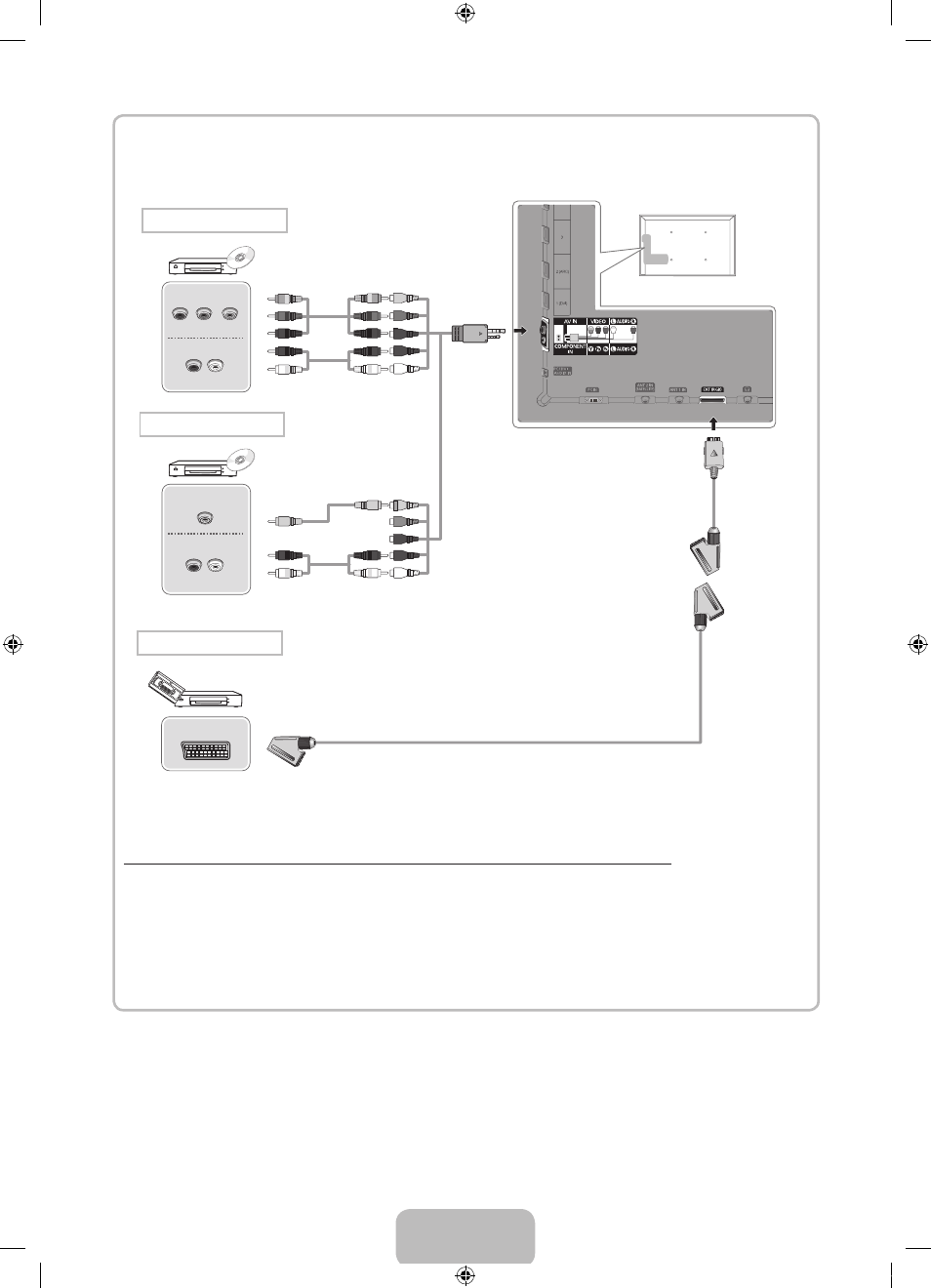

Component connection
AV connection
SCART connection
