12
ENGLISH
ASSEMBLING AND PREPARING
NOTE
1 Use the ferrite core to reduce the electromagnetic interference in the power cable.
Wind the power cable on the ferrite core once.
2 Use the ferrite core to reduce the electromagnetic interference in the cable.
Place the ferrite core close to the TV.
-
If there are two ferrite cores, follow as shown in Figures 1-1 and 2.
-
If there are three ferrite cores, follow as shown in Figures 1-2 and 2.
- If there is LAN port, additionally follow as shown in Figure 3.
y
y
For an optimal connection, HDMI cables and USB
devices should have bezels less than 10 mm thick and 18
mm width. Use an extension cable that supports USB 2.0
if the USB cable or USB memory stick does not fit into
your TV’s USB port.
*A
10 mm
*B
18 mm
y
y
The items supplied with your product may vary depending on the model.
y
y
Product specifications or contents of this manual may be changed without prior notice due to
upgrade of product functions.

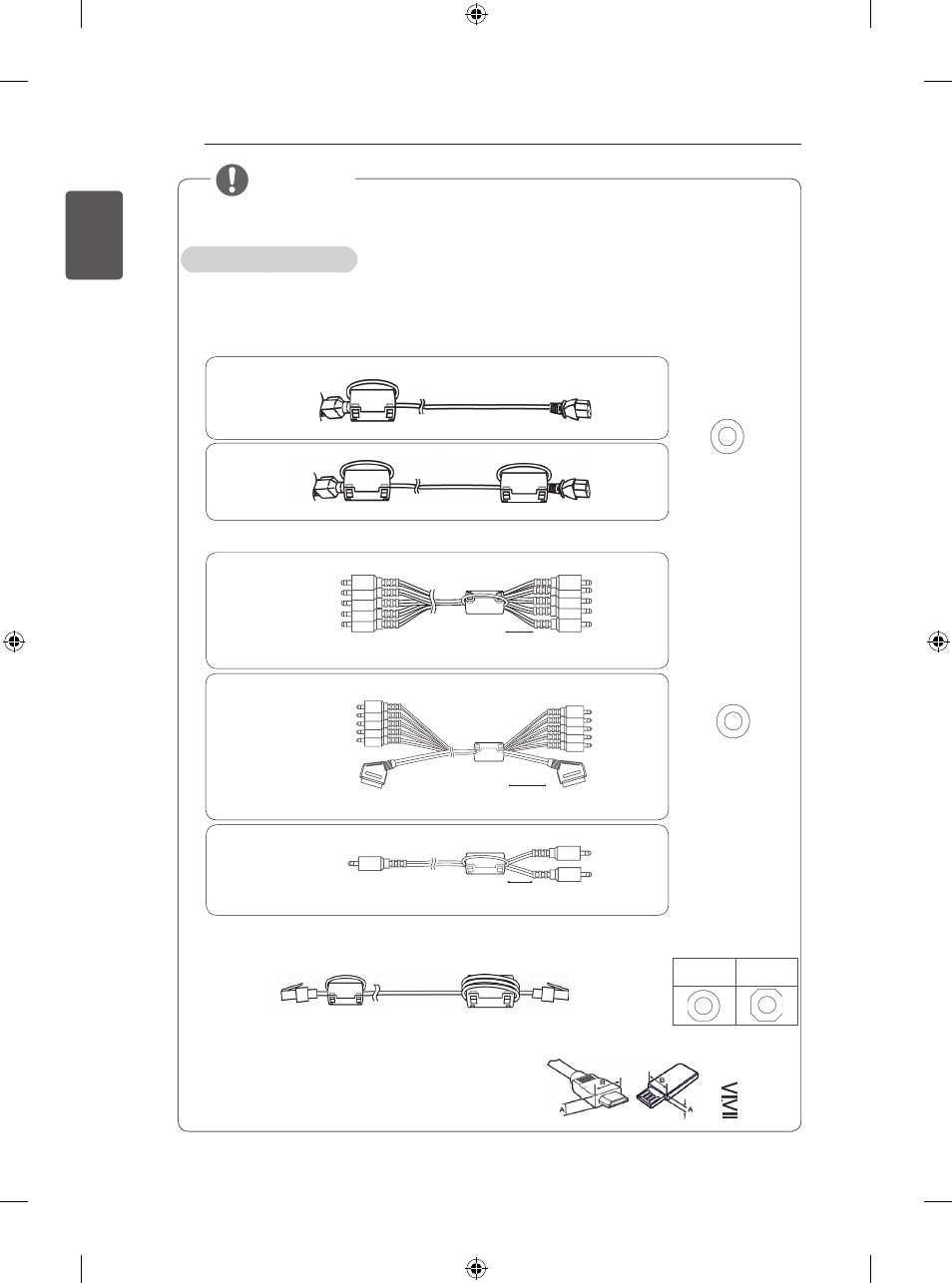

How to use the ferrite core
3 Use the ferrite core to reduce the electromagnetic interference in the LAN cable. Wind the LAN
cable once on the ferrite core B and thrice on the ferrite core A.
Place the ferrite core close to the TV
and an External device.
[to the TV]
[to an External
device]
B
A
[Figure 3]
A
(Gray)
B
(Gray)
[Cross Section of
Ferrite Core]
[to an External device]
[Figure 2-1]
[to the TV]
10 mm(+ / - 5 mm)
Wind the component Y, Pb, Pr, L, R cable on the ferrite core once.
(Black)
[Cross Section of
Ferrite Core]
[to an External device]
[Figure 2-2]
[to the TV]
10 mm(+ / - 5 mm)
Gather and bind the component Y, Pb, Pr, L, R and scart cable
with the ferrite core.
10 mm(+ / - 5 mm)
[to an External device]
[Figure 2-3]
[to the TV]
Wind the PC audio cable on the ferrite core once.
[Figure 1-1]
[to a wall plug]
[to the TV]
Place the ferrite core close to a wall plug.
[to a wall plug]
[to the TV]
[Figure 1-2]
Place the ferrite core close to the TV and a wall plug.
[Cross Section of
Ferrite Core]
(Black)
