2

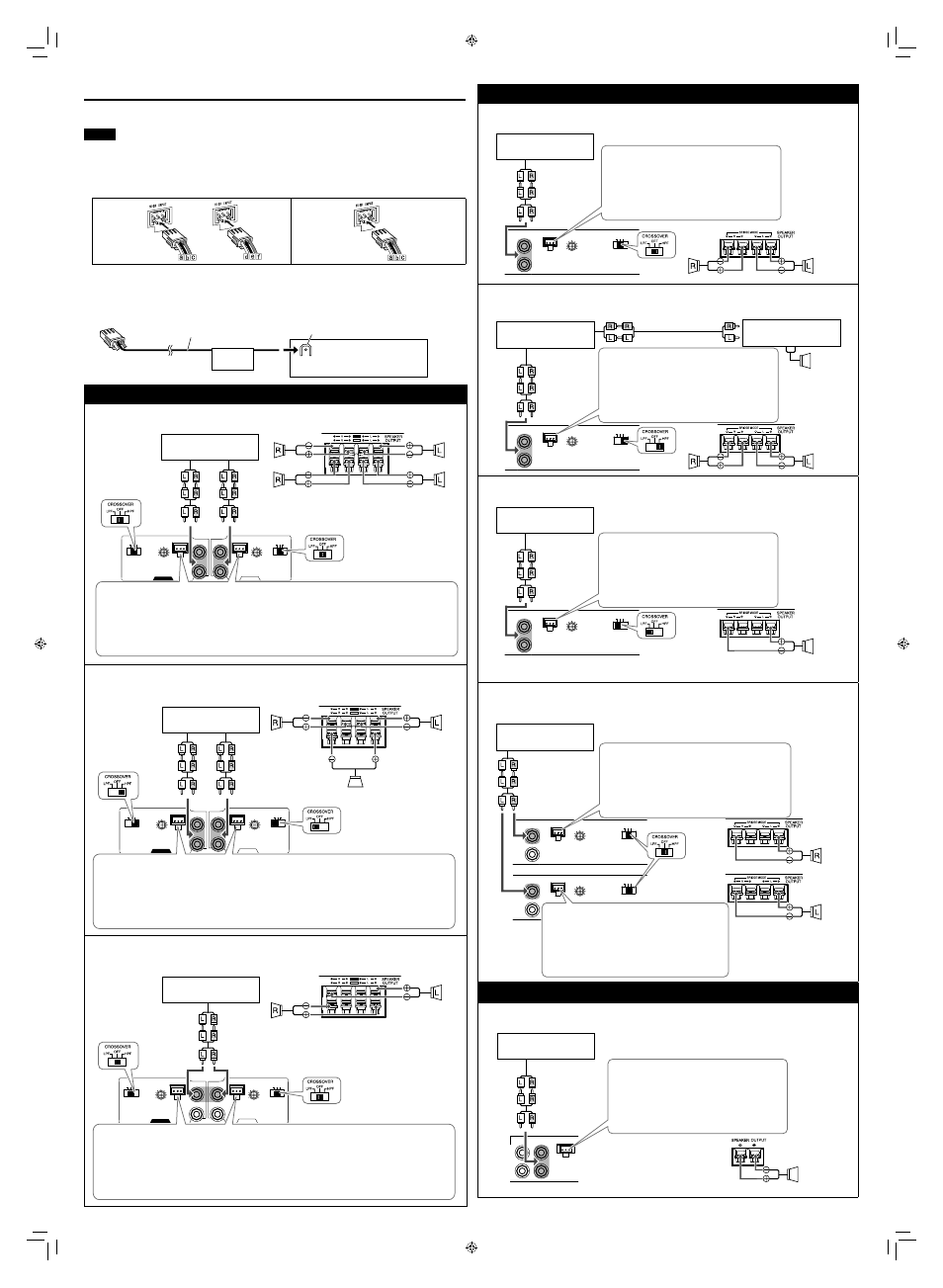

SPEAKER CONNECTIONS
Connection varies depending on the number of the speakers used in your car. Select the
appropriate connection referring to the following diagrams.
Notes
• Securely connect all the parts. If the connections are loose, due to contact resistance etc., heat
will break out and may cause an accident.
• Run the connection leads under the car mats to prevent accidental disconnections.
Å When your receiver is equipped with line output.
ı When your receiver is NOT equipped with line output.
KS-AX3104
FRONT REAR
KS-AX3102
KS-AX3101D
• Connect each lead of the speaker input connector to a speaker positive lead or chassis* 1 of the
receiver.
• Cover the terminals of unused speaker negative leads of the receiver with insulating tape to
prevent short circuits.
JVC car receiver, etc.
Rear ground terminal Black lead of the speaker input connector
* 1 Example: connecting to the ground
RECEIVER
GND
KS-AX3104
4-speaker system—Normal Mode
• Use the speakers with an impedance of 2 Ω to 8 Ω.
REAR
FRONT
FRONT REAR
CROSSOVER
OFF LPF HPF OFF LPF HPF
CROSSOVER HIGH INPUT L/ MONO L/ MONO
INPUT
R R
HIGH INPUT
MIN MAX
LEVEL
MIN MAX
LEVEL
JVC car receiver, etc.
Front Front
Rear Rear
Line out
(Front)
Line out
(Rear)
* 2 * 2
ı Speaker input connector.
Connector lead To Receiver Connector lead To Receiver
a White "FRONT LEFT (+)" = Front left (+) lead d Green "REAR LEFT (+)" = Rear left (+) lead
b Black "RECEIVER GND" = Chassis* 1 e Black "RECEIVER GND" = Chassis* 1
c Gray "FRONT RIGHT (+)" = Front right (+) lead f Purple "REAR RIGHT (+)" = Rear right (+) lead
Å
2-speaker system plus subwoofer—Bridge Mode
• Use the speakers with an impedance of 2 Ω to 8 Ω.
• Use the subwoofer with an impedance of 4 Ω to 8 Ω.
REAR
FRONT
FRONT REAR
CROSSOVER
OFF LPF HPF OFF LPF HPF
CROSSOVER HIGH INPUT L/ MONO L/ MONO
INPUT
R R
HIGH INPUT
MIN MAX
LEVEL
MIN MAX
LEVEL
JVC car receiver, etc.
Front Front
Subwoofer
Line out
(Front)
Line out (Rear) or
Subwoofer out
* 2 * 2
ı Speaker input connector.
Connector lead To Receiver Connector lead To Receiver
a White "FRONT LEFT (+)" = Front left (+) lead d Green "REAR LEFT (+)" = Rear left (+) lead
b Black "RECEIVER GND" = Chassis* 1 e Black "RECEIVER GND" = Chassis* 1
c Gray "FRONT RIGHT (+)" = Front right (+) lead f Purple "REAR RIGHT (+)" = Rear right (+) lead
Å
2-speaker system—Bridge Mode
• Use the speakers with an impedance of 4 Ω to 8 Ω.
• Be sure to connect the line output from the receiver to the left (L) jack on this unit.
REAR FRONT
FRONT REAR
CROSSOVER
OFF LPF HPF OFF LPF HPF
CROSSOVER HIGH INPUT L/ MONO L/ MONO
INPUT
R R
HIGH INPUT
MIN MAX
LEVEL
MIN MAX
LEVEL
JVC car receiver, etc.
Front
Front
Line out
* 2
ı Speaker input connector.
Connector lead To Receiver Connector lead To Receiver
a White "FRONT LEFT (+)" = Front left (+) lead d Green "REAR LEFT (+)" = Front right (+) lead
b Black "RECEIVER GND" = Chassis* 1 e Black "RECEIVER GND" = Chassis* 1
c Gray "FRONT RIGHT (+)" = Front left (+) lead f Purple "REAR RIGHT (+)" = Front right (+) lead
Å
KS-AX3102
2-speaker system—Normal Mode
• Use the speakers with an impedance of 2 Ω to 8 Ω.
OFF LPF HPF
CROSSOVER INPUT
R
HIGH INPUT
MIN MAX
LEVEL L/ MONO
* 2
JVC car receiver, etc.
Line out
ı Speaker input connector.
Connector lead To Receiver
a White "LEFT (+)" = Left (+) lead
b Black "RECEIVER GND" = Chassis* 1
c Gray "RIGHT (+)" = Right (+) lead
Å
2-speaker system plus subwoofer
• Use the speakers with an impedance of 2 Ω to 8 Ω.
OFF LPF HPF
CROSSOVER INPUT
R
HIGH INPUT
MIN MAX
LEVEL L/ MONO
JVC car receiver, etc.
Line out
(Front)
ı Speaker input connector.
Connector lead To Receiver
a White "LEFT (+)" = Left (+) lead
b Black "RECEIVER GND" = Chassis* 1
c Gray "RIGHT (+)" = Right (+) lead
Å
Line out (Rear) or
Subwoofer out
Subwoofer
JVC amplifier, etc.
(Purchased separately)
* 2
* 2
Subwoofer system—Bridge Mode
• Use the speakers with an impedance of 4 Ω to 8 Ω.
OFF LPF HPF
CROSSOVER INPUT
R
HIGH INPUT
MIN MAX
LEVEL L/ MONO
JVC car receiver, etc.
ı Speaker input connector.
Connector lead To Receiver
a White "LEFT (+)" = Left (+) lead
b Black "RECEIVER GND" = Chassis* 1
c Gray "RIGHT (+)" = Right (+) lead
Å
Line out (Rear)
or
Subwoofer out
Subwoofer
* 2
2-speaker system (2 amplifi ers)—Bridge Mode
• Use the speakers with an impedance of 4 Ω to 8 Ω.
• Be sure to connect the line output from the receiver to the left (L) jack on this unit.
OFF LPF HPF
CROSSOVER INPUT
R
HIGH INPUT
MIN MAX
LEVEL L/ MONO
OFF LPF HPF
CROSSOVER INPUT
R
HIGH INPUT
MIN MAX
LEVEL L/ MONO
JVC car receiver, etc.
ı Speaker input connector.
Connector lead To Receiver
a White "LEFT (+)" = Front left (+) lead
b Black "RECEIVER GND" = Chassis* 1
c Gray "RIGHT (+)" = Front left (+) lead
Å
Line out
* 2
ı Speaker input connector.
Connector lead To Receiver
a White "LEFT (+)" = Front right (+) lead
b Black "RECEIVER GND" = Chassis* 1
c Gray "RIGHT (+)" = Front right (+) lead
KS-AX3101D
Subwoofer system
• Use the speakers with an impedance of 2 Ω to 8 Ω.
HIGH INPUT INPUT
R
L/ MONO
PRE OUT
R
L
Line out (Rear)
or
Subwoofer out
JVC car receiver, etc.
ı Speaker input connector.
Connector lead To Receiver
a White "LEFT (+)" = Left (+) lead
b Black "RECEIVER GND" = Chassis* 1
c Gray "RIGHT (+)" = Right (+) lead
Å
Subwoofer
* 2
* 2 Not supplied
