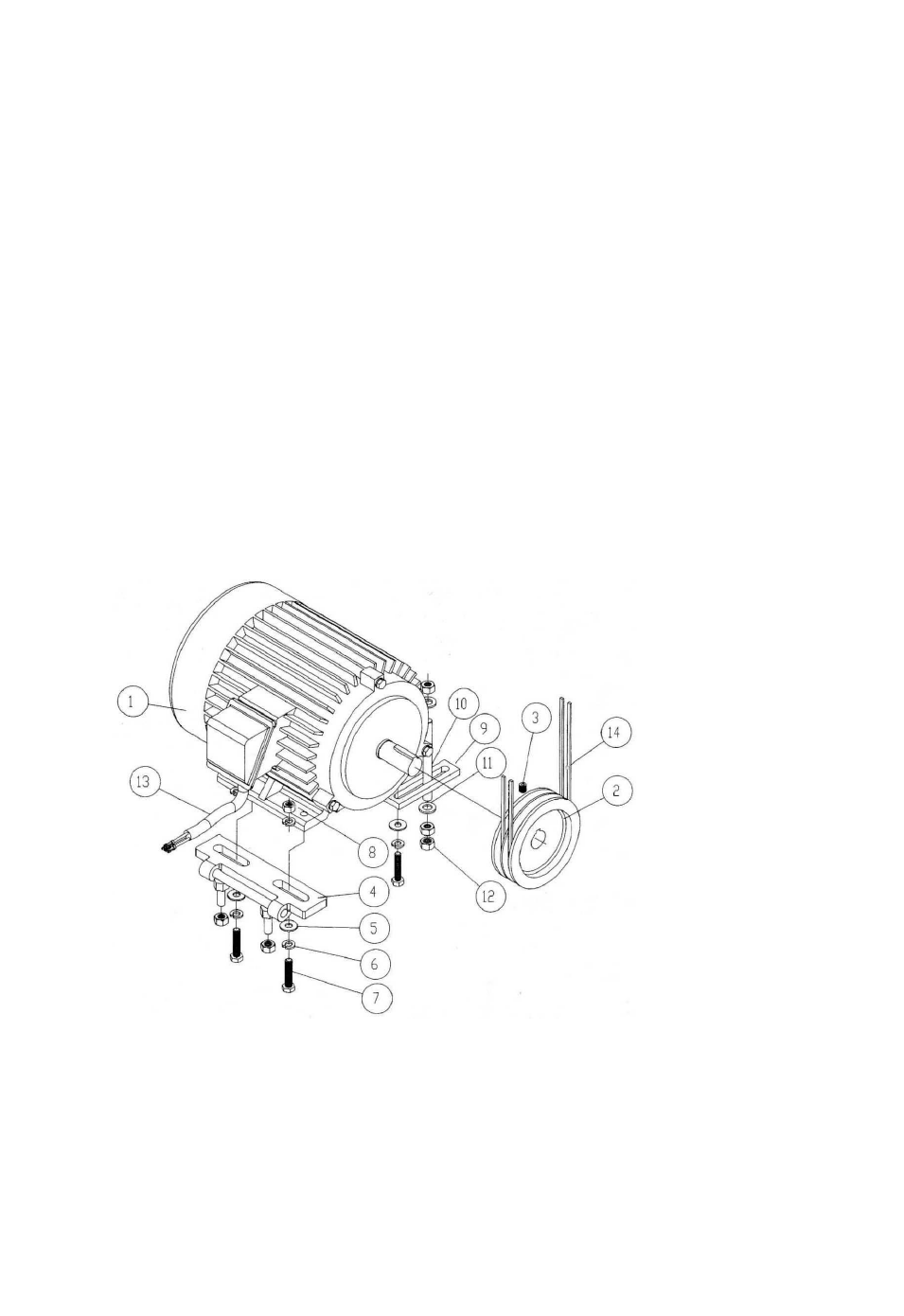

PARTS LIST: Motor Assembly (PJ1696 Jointer)
Index Part
No. No. Description Size Qty.
1.........PJ1696-701 ................Motor......................7-1/2HP, 3Ph 230/460V, 60Hz.........................1
2.........PJ 1696-702................Motor Sheave..............................................................................1
3.........TS-1525011................Socket Set Screw...................M10 x 10.................... ..... ………….2
4.........PJ 1696-703................Motor Bracket................................................................. ……… .1
5.........TS-1550071................Flat Washer............................M10............................ .... ………..3
6.........TS-2361101................Lock Washer..........................M10.............................. ... ………..6
7.........TS-2210451................Hex Cap Screw......................M10 x 45....................... . ...........3
8.........TS-2311101................Hex Nut (Full).........................M10.............................. ..... ……. 3
9.........PJ1696-704................Support........................................................................................1
10.......PJ1696-705................Rod........................................M12 x 150........................ . ……..1
11.......TS-2360121................Flat Washer...................... ....M12............................. .. . ........2
12.......TS-2311121................Hex Nut (Full)........................M12............................ ... ........5
13.......PJ 1696-706................Motor Cord..................................................................................1
14.......PJ 1696-707................V-Belt.........................................................................................2
Моторный Агрегат (Фуганок PJ1696)
