Installation/Connection
Installation
General notes
• Choose the mounting location where the
unit will not interfere with the normal driving
function of the driver.
• Before finally installing the unit, connect
the wiring and make sure that the unit works
properly.
• Consult with your nearest dealer if
installation requires the drilling of holes or other
modifications of the vehicle.
• Install the unit where it does not get in the
driver’s way and cannot injure the passenger if
there is a sudden stop, like an emergency stop.
• If installation angle exceeds 35° from
horizontal, the unit may not perform properly.
• Avoid installing the unit where it would
be subject to high temperature, such as from
direct sunlight, or from hot air, from the heater,
or where it would be subject to dust, dirt or
excessive vibration.

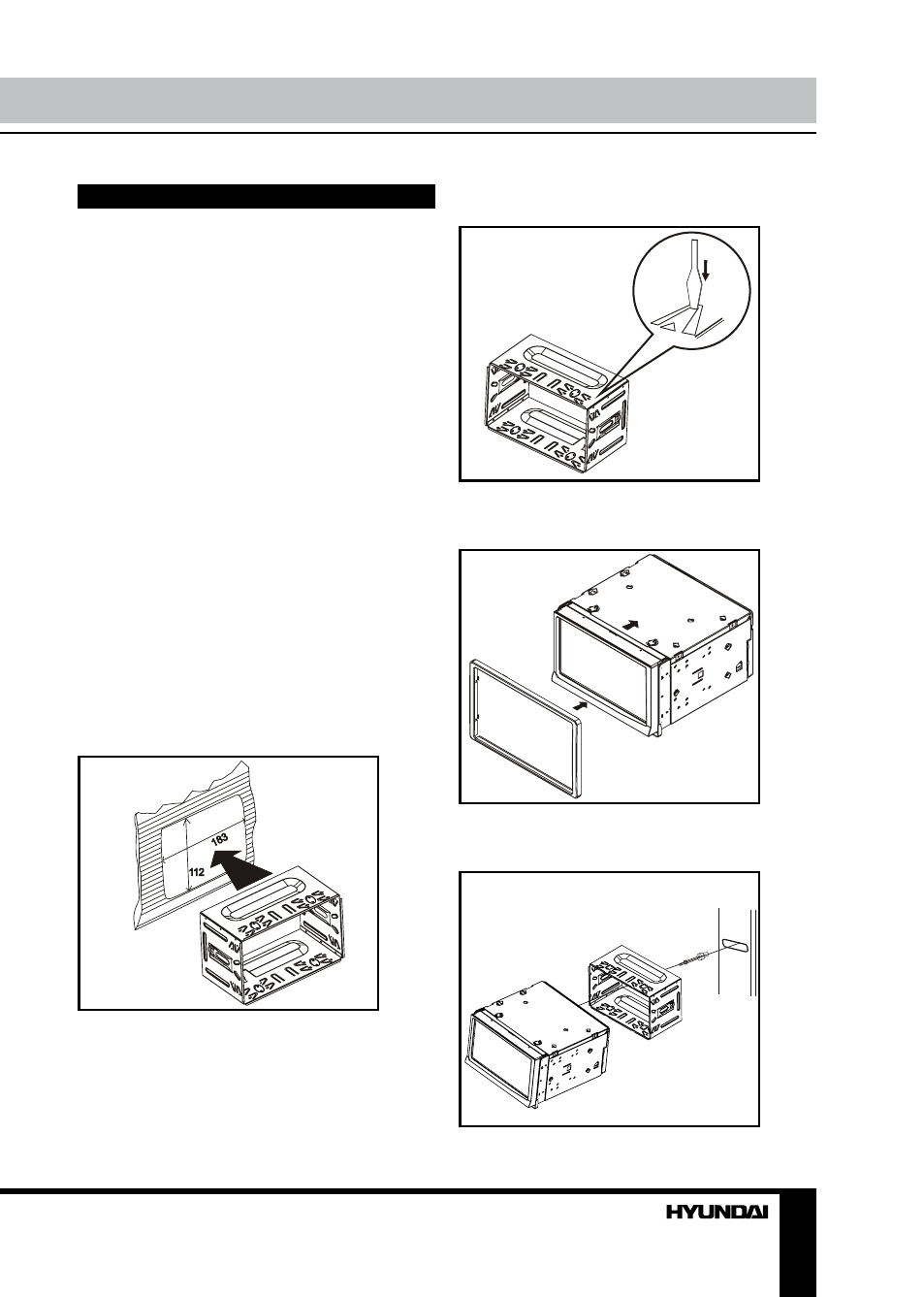

Installation method 1: DIN-front
mounting
1. Insert the mounting sleeve into the
dashboard.
1
2. Bend these claws outward for a tight fit, if
necessary.
2
3. Push in the unit and install the outer trim
ring on it.
3
4. To support the unit, fix the rear of the unit
using the rear mounting bolt.
4
