What
’s What

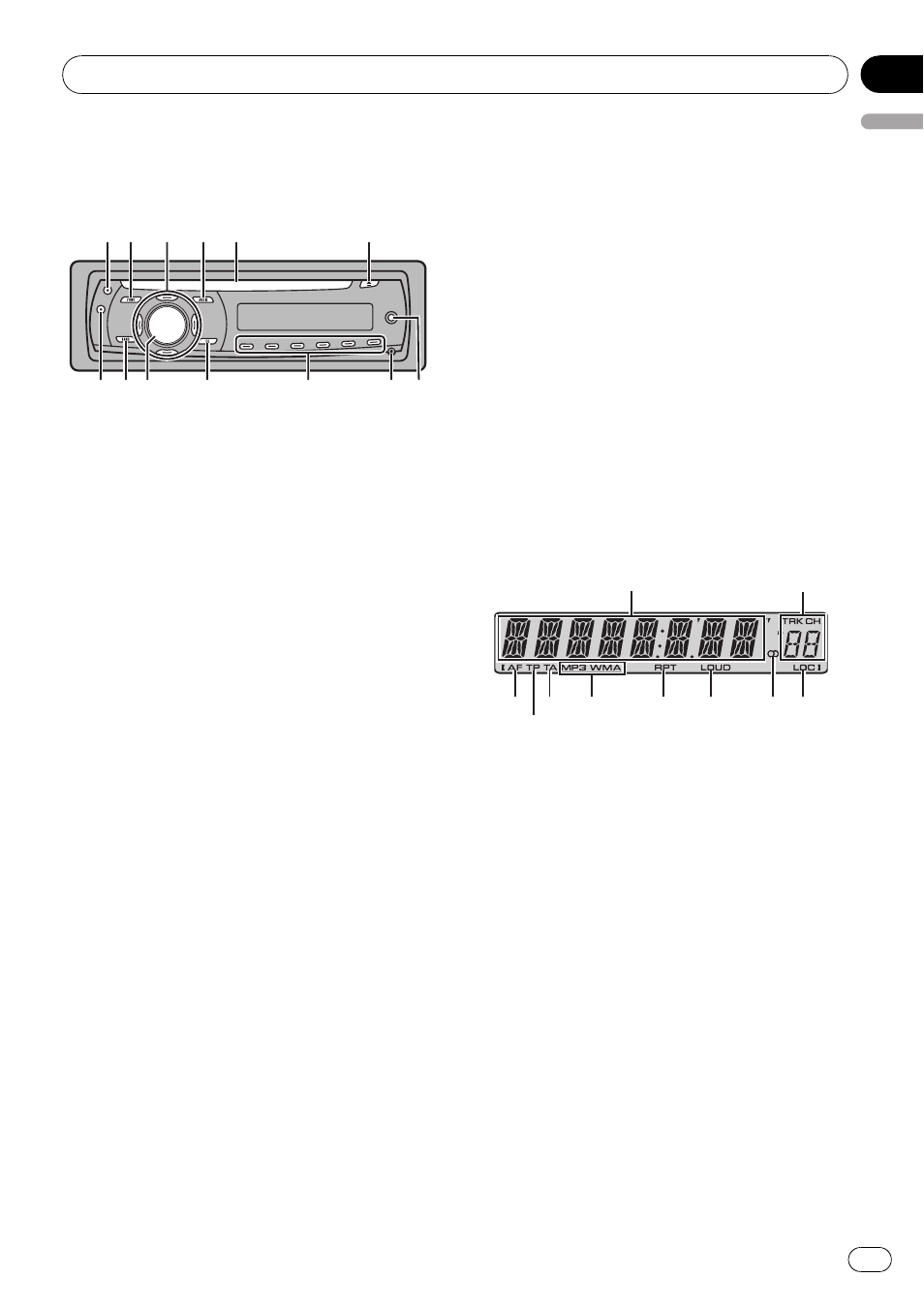

Head unit
12
5
6
d c
a
4
9
8 7
3
b
1 TA button
Press to turn TA function on or off. Press
and hold to turn AF function on or off.
2 FUNCTION button
Press to recall the function menu when op-
erating a source.
3 a/b/c/d buttons
Press to perform manual seek tuning, fast
forward, reverse and track search controls.
Also used for controlling functions.
4 AUDIO button
Press to select various sound quality con-
trols.
5 Disc loading slot
Insert a disc to play.
6 EJECT button
Press to eject a CD from your built-in CD
player.
7 AUX input jack (3.5 mm stereo jack)
Use to connect an auxiliary equipment.
8 DETACH button
Press to remove the front panel from the
head unit.
9 1 to 6 buttons
Press for preset tuning.
a EQ button
Press to select various equalizer curves.
Press and hold to turn loudness on or off.
b SOURCE button, VOLUME
This unit is turned on by selecting a source.
Press to cycle through all the available
sources.
Press and hold to recall the initial setting
menu when the sources are off.
Rotate it to increase or decrease the vo-
lume.
c BAND button
Press to select among MW/LW and two FM
bands and cancel the control mode of func-
tions.
d DISPLAY button
Press to select different displays.
LCD display
6
3
2
1
5
4
7 8
9 a
1 Main display section
Shows the various information such as
band, play time, and other setting.
! Tuner
Band and frequency are displayed.
! RDS
Program service name, PTY information
or frequency is displayed.
! Built-in CD Player (Audio CD)
Elapsed play time is displayed.
! Built-in CD Player (WMA/MP3/WAV disc)
Folder number and elapsed play time are
displayed.
! Audio and initial setup
Function names and setup status are dis-
played.
2 Preset number/track number indicator
Shows the track number or preset number.
Operating this unit
En
5
English
Section
02
