6
Installation/Connection
Connection

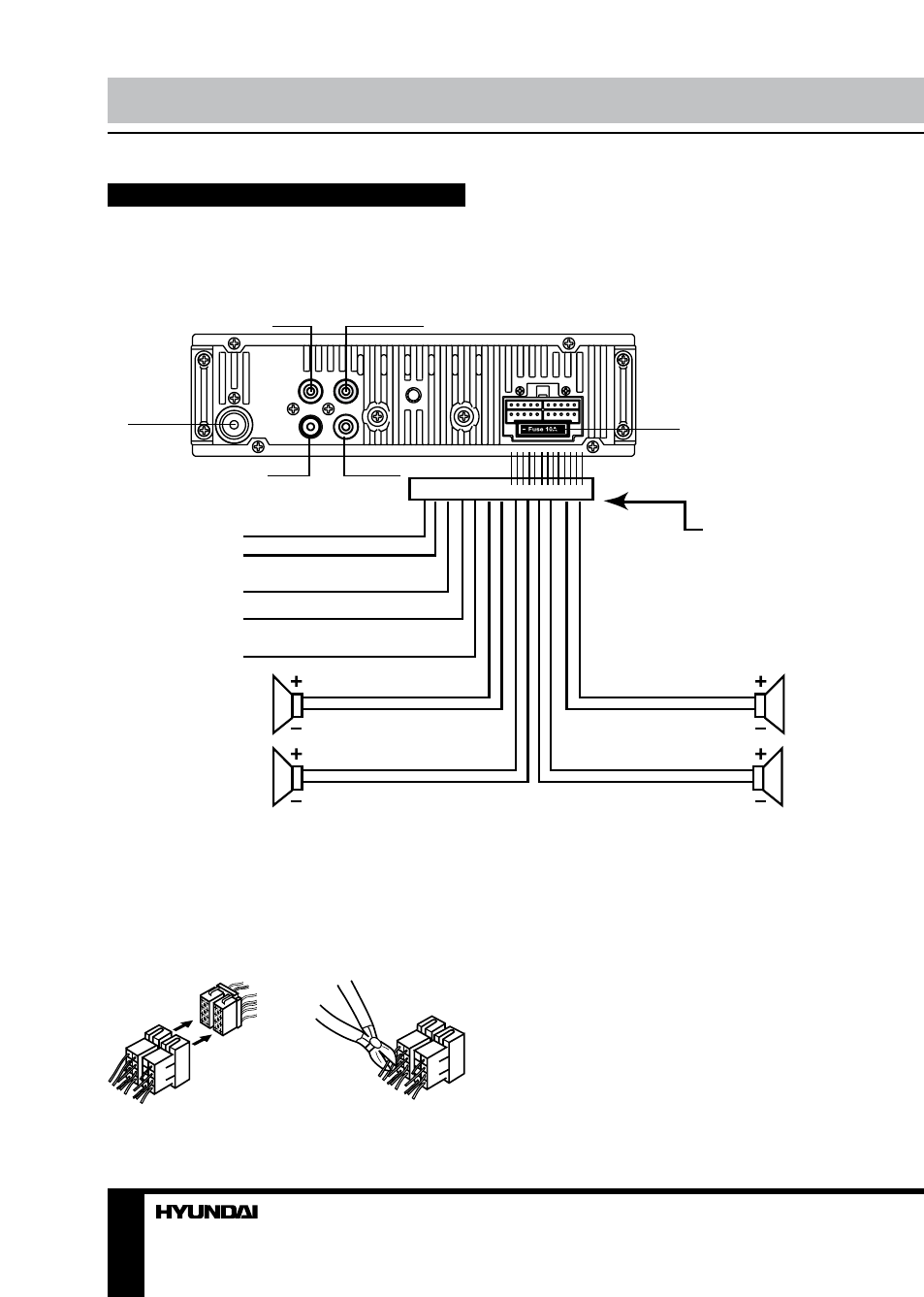

Connection diagram
SUB 1
ISO
CONNECTOR
ANTENNA
SOCKET
SUB 2
WHITE
PANEL LIGHT
POWER ANTENNA
BLACK (GND)
POWER B+
FRONT
4 ohm
FRONT
4 ohm
REAR
4 ohm
RIGHT
SP
REAR
4 ohm
LEFT
SP
TO CAR BATTERY
MEMOTY B+
ORANGE
YELLOW
RED +12V
FUSE
GREEN GREY
GREEN/WHITE GREY/WHITE
BROWN BLUE
BROWN/WHITE BLUE/WHITE
RCA OUT RIGHT (red)
RCA OUT LEFT (white)
Using the ISO Connector
1. If your car is equipped with the ISO
connector, then connect the ISO connectors as
illustrated.
2. For connections without the ISO
connectors, check the wiring in the vehicle
carefully before connecting, incorrect
connection may cause serious damage to this
unit.
Cut the connector, connect the colored leads
of the power cord to the car battery as shown
in the colour code table below for speaker and
power cable connections.
1. 2.
