E Connecting optional components
Connecting to the video input terminal ( t )
Notes
• If you connect a VCR to 8 (antenna input), preset the signal output from the VCR to the
program number 0 on the TV (see M).
• When both
(S video) and
(video) for t 1 are connected at the same time,
(S video) is automatically selected. To view
(video), disconnect the S video cable.

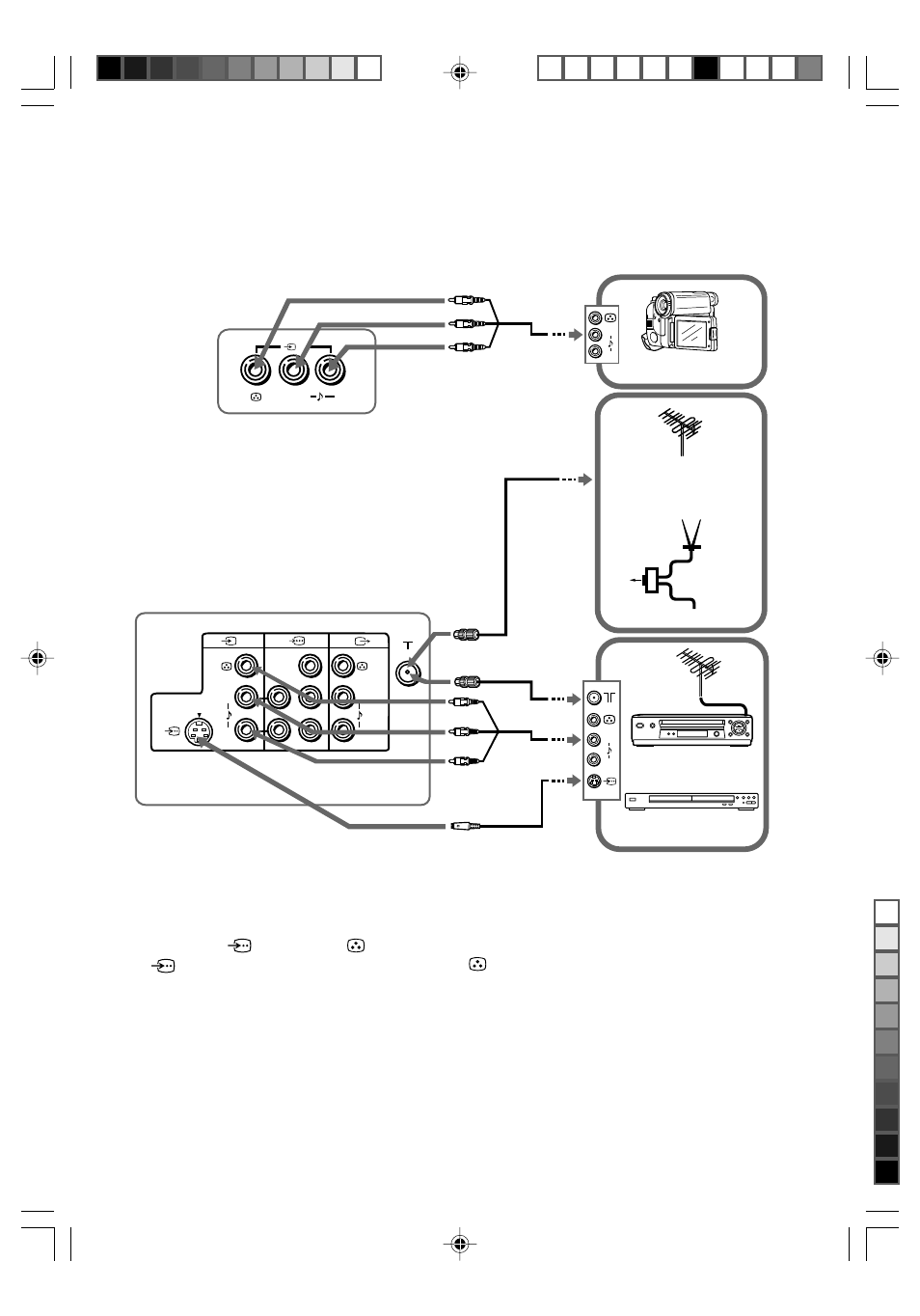

TV front panel
Antenna cable
(not supplied)
DVD player
TV rear panel
Audio/
Video cable
(not supplied)
Audio/Video cable
(not supplied)
Camcorder
S Video cable
(not supplied)
Antenna cable
(not supplied)
TV, CATV, Satellite
or
When there is no
FM signal
Antenna
selector
FM signal
TV signal
VCR
L
R
(MONO)
2
(
R
L
Y
C
B
C
R
MONO)
(
L
R
1
MONO)
R
L
R
L
