Using Your New TV
Connecting optional components
You can connect optional video components, such as a VCR, multi disc player,
camcorder or video game.
To watch the picture of the connected equipment, press … (see page 12).

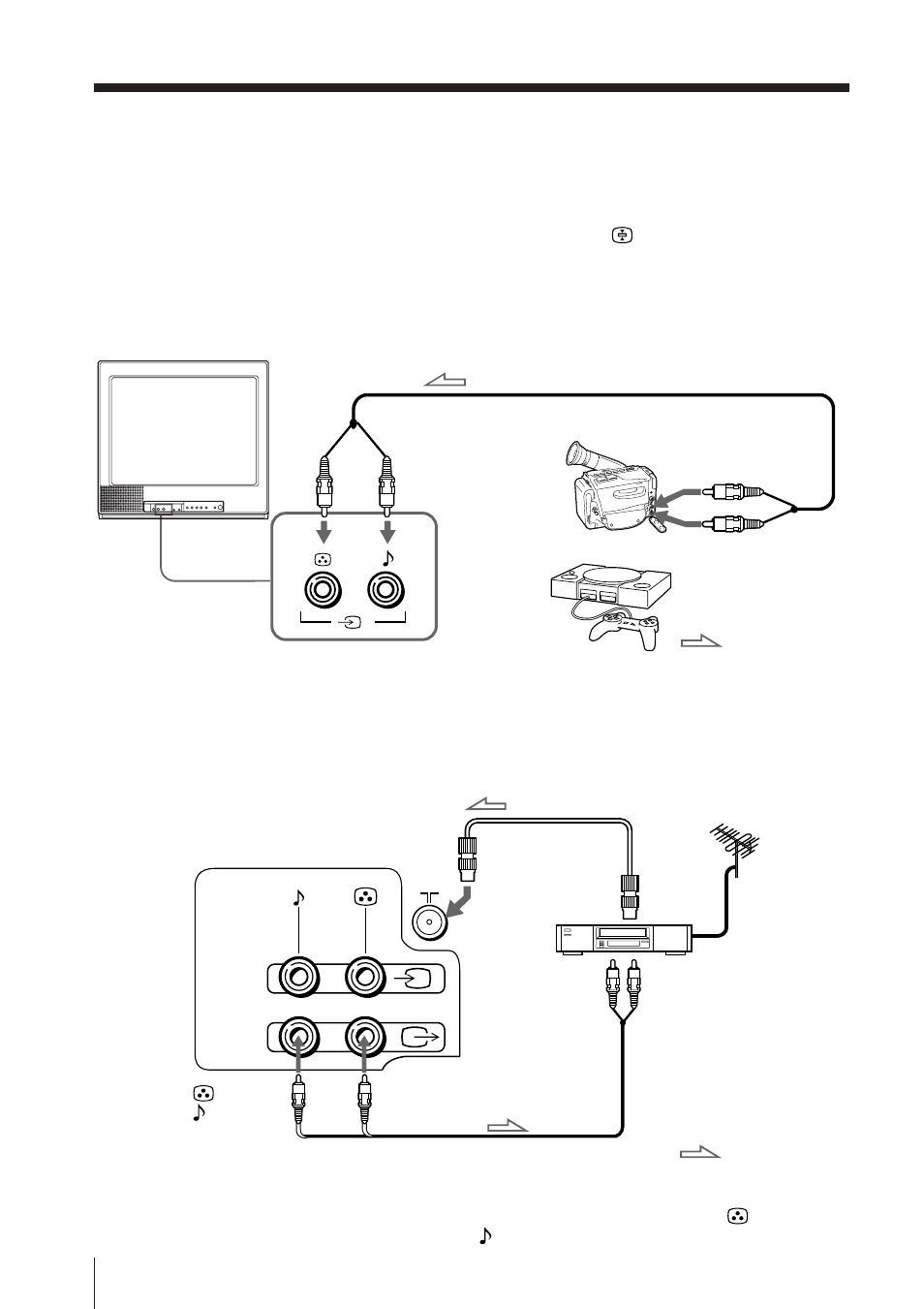

Connecting a camcorder/video game equipment
using the … (video input) jacks
Note
• You can also connect video equipment to the … 1 (video input) jacks at
the rear of your TV.
Connecting video equipment using the Ú
(monitor output) jacks
Note
• When connecting a stereo VCR, connect the yellow plug to
(the yellow
jack) and the white plug to (the black jack).
Front of TV
Camcorder
Video game
equipment
To video and
audio outputs
(yellow)
(black)
Rear of TV
To
antenna
output
VCR
: Signal flow
To … 2
(video input)
To Ú
(monitor
output)
or
Audio/Video cable (not supplied)
Antenna cable (not supplied)
2
1
Audio/Video cable (not supplied)
: Signal flow
To video
and audio
inputs
