Using Your New TV
Getting Started
Step 1
Connect the antenna

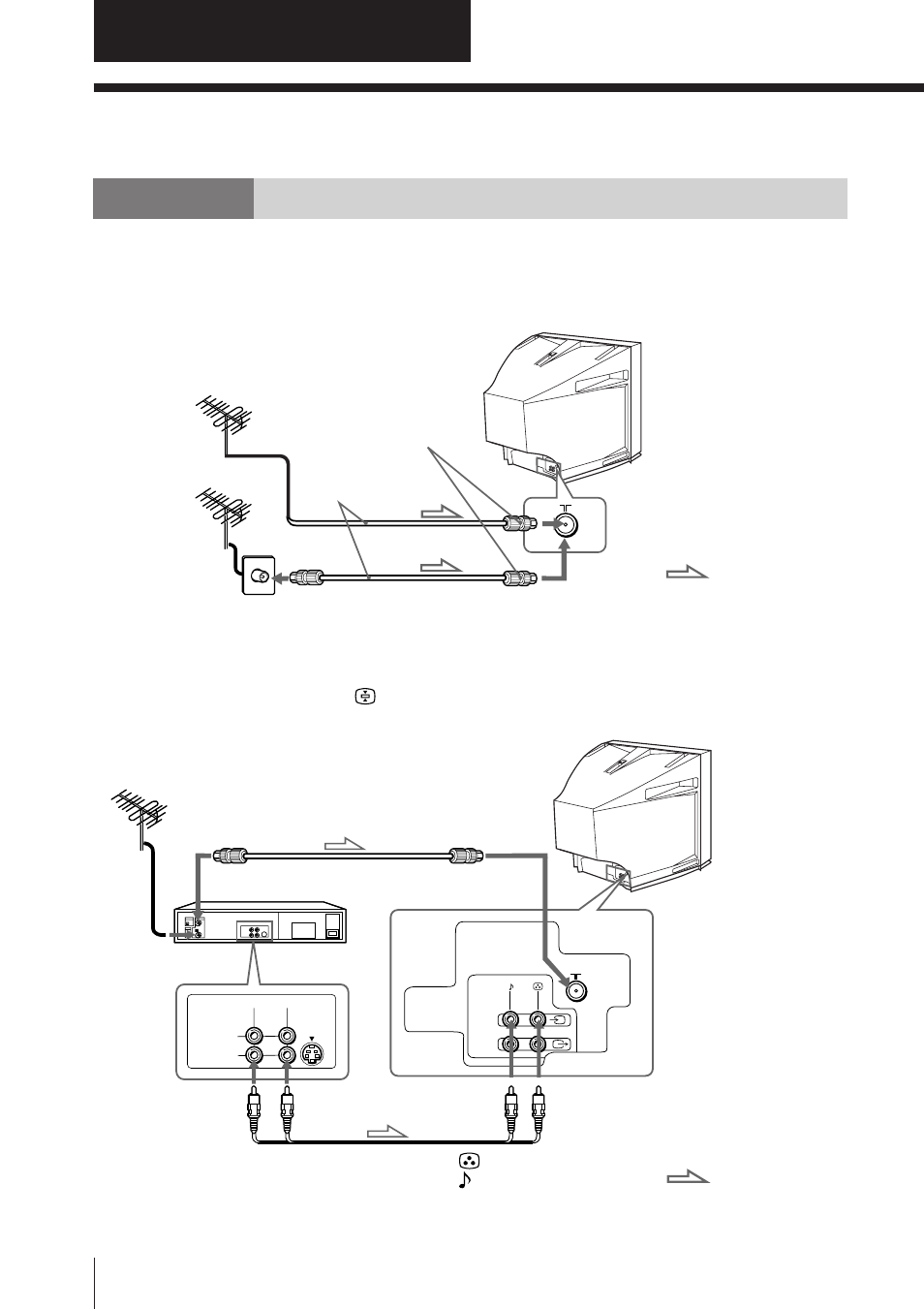

If you wish to connect a VCR, see the “Connecting a VCR” diagram below.
Using Your New TV
IEC connector
(not supplied)
To video and
audio outputs
VCR
(yellow)
(black)
Antenna cable (not supplied)
To … 1
(video input)
Audio/Video cable
(not supplied)
: Signal flow
To antenna
output
Antenna cable
(not supplied)
Rear of TV
Connecting a VCR
To watch the video, press …
(see page 12).
or
: Signal flow
VIDEO
VIDEO IN
VIDEO OUT
AUDIO
1
Rear of TV
To ˘
(antenna)
