18
Water inlet
There should be a COLD WATER tap near the washing
machine with a screwing on connection pipe of 3/4 gas
for the water supply, a sink, a wash basin or a drainage
system in the wall.
Previously check if:
■ it is not a hot water tap
■ the running water is clean. If not, run off a reasonable
amount of water to flush out any debris that may have
collected in the pipes.
Have the permanent drainage system in the wall
checked by a plumber.

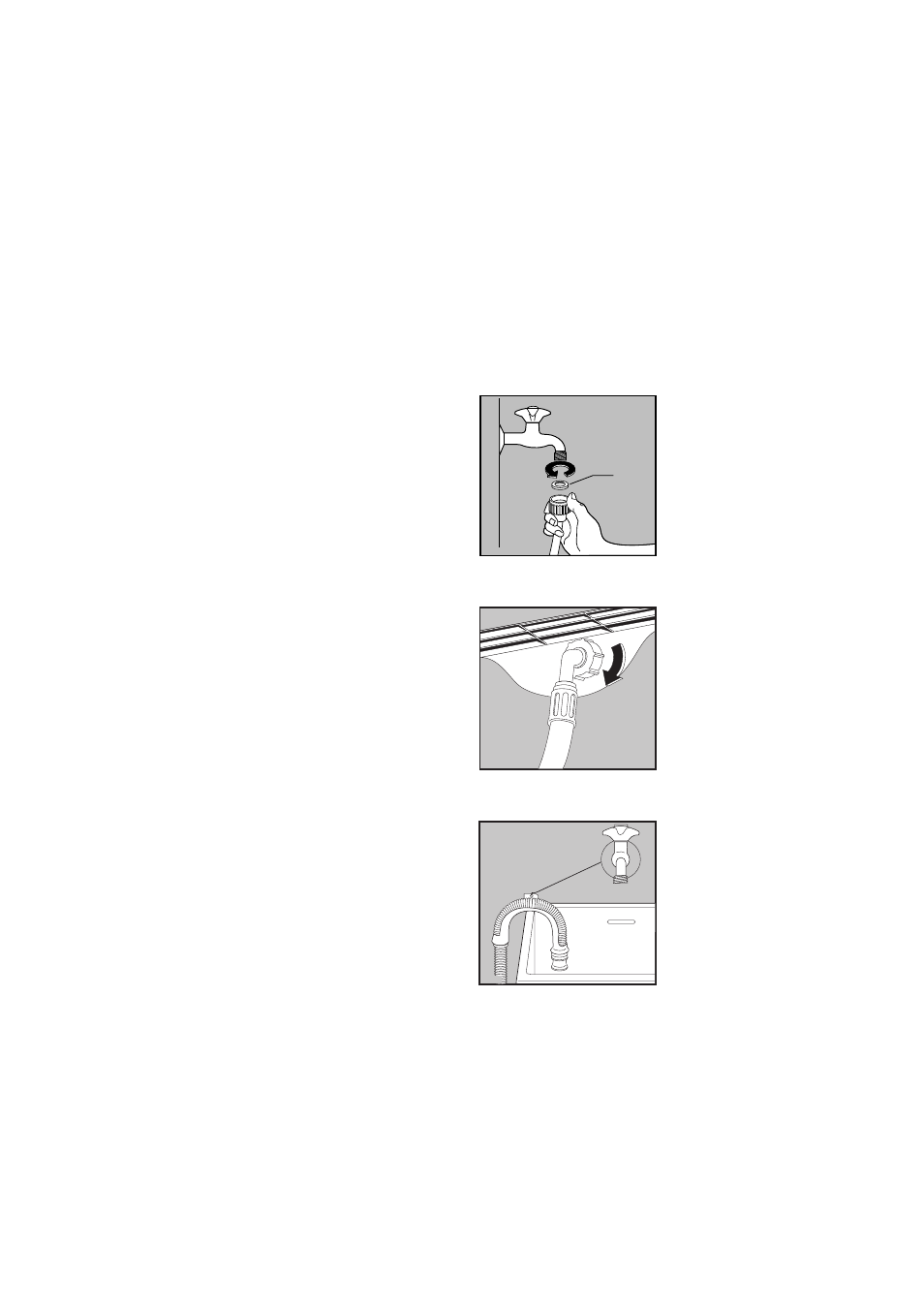

Place the enclosed rubber joint, delivered in a plastic
bag together with the appliance (A), at the very end of
the inlet hose and carefully screw the pipe to the tap
taking care not to damage the screwdrive and fix the nut
well on to the end in order to avoid leaking.
If necessary turn the hose adequately by unscrewing the
nut at the rear of the appliance.
Now tighten the nut anew to avoid leaks. (Open the tap
and assure that it does not leak and close it again.)
Water drainage
If you intend the drain hose from the machine to empty
into a sink, make sure that the sink is empty and that the
plug hole is not blocked.
Place the drain hose in the sink with the aid of the bent
piece delivered separately.
The bent piece has to be entered into the tube´s mouth
in order to assure the support.. Aforesaid piece allows
the hose to be fixed to the wall by means of an opening
on the upper part and that way the hose does not move
and its falling is avoided
If the machine is permanently plumbed in, hook the end
of the hose into a standpipe installed for the purpose.
The standpipe must have an internal diameter of at least
40 mm in order that there is an air gap between the
drain hose and the standpipe. Make sure, that it is
designed in such a way, that the end of the drain hose
cannot be covered with water.
AL013
A
P0022
P0021
