Beko WKB 50831 PT - Инструкция (Страница 41)

EN 41

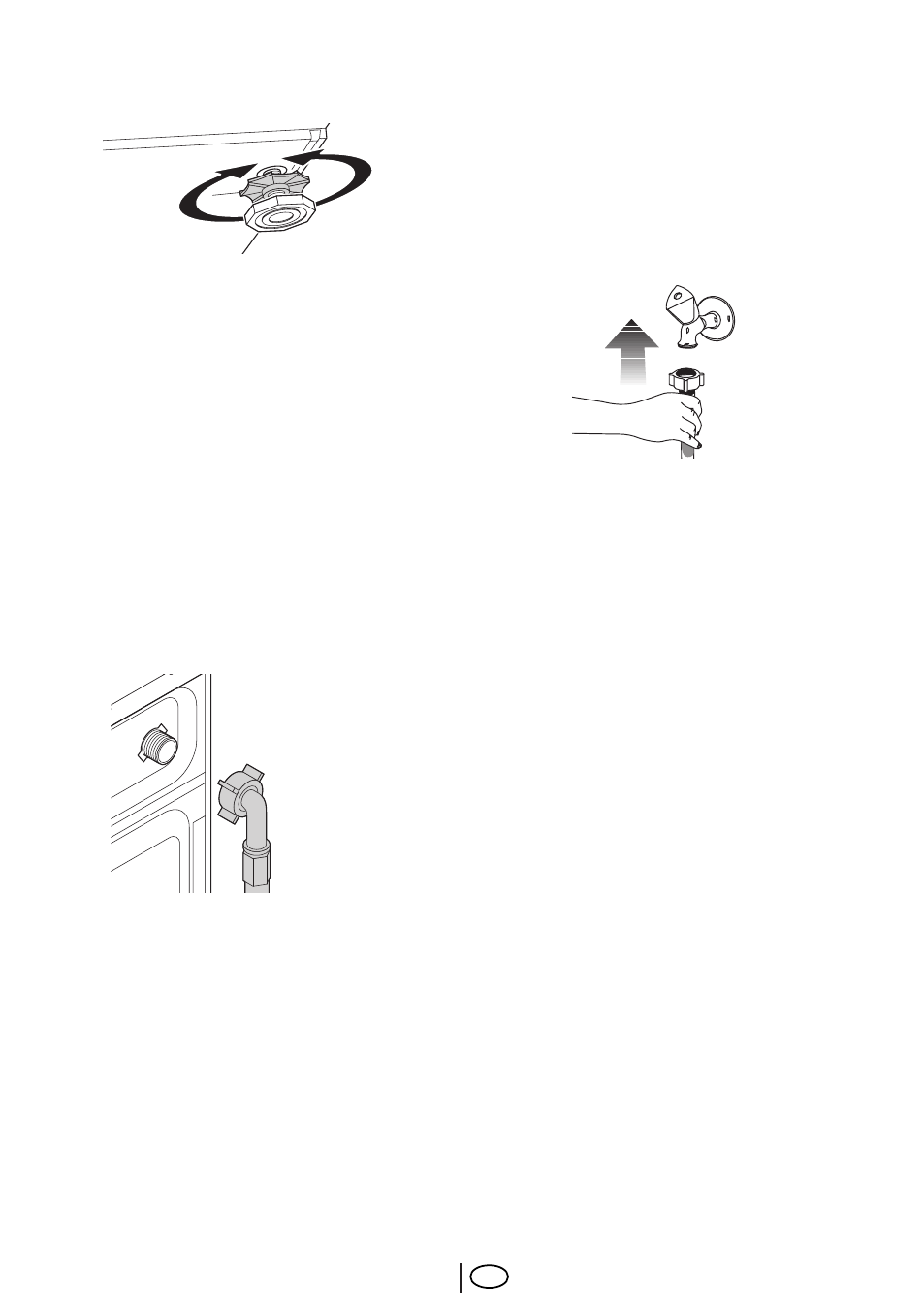

3. Important: Tighten all lock nuts up
again.
Connecting to the water
supply.
Important:
• The water supply pressure required
to run the machine must be 1-10
bar (0,1 – 1,0 MPa). Attach a
pressure-reducing valve if the water
pressure is higher.
• Connect the special hoses supplied
with the machine to the water intake
valves on the machine. The hose
bearing the “red” sign (90°C max)
is the hot water inlet and the hose
bearing the “blue” sign (25°C max) is
for the cold water inlet.
• If you are going to use your double
water-inlet machine as a single
(cold) water-inlet unit, you must
install the stopper*, supplied with
your machine to the hot water valve.
If you want to use both water inlets
of the product, you can connect the
hot water hose after removing the
stopper and gasket group from the
hot water valve.
* Applies for the products supplied
with a blind stopper group.
• Open the taps completely after
making the hose connection to
check if there is any water leakage
at the connection points. Turn off
the tap and remove the nut in case
of any leakage. Retighten the nut
carefully after checking the seal.
To prevent any water leakage and
any other damage to be caused by
it, keep the taps closed when the
machine is not in use.
• Models with a single water inlet
should not be connected to the
hot water tap. Laundry may be
damaged or the appliance may
switch to protection mode and not
work.
• If you are going to use your double
water-inlet machine as a single
(cold) water-inlet unit, you must
install the stopper*, supplied with
your machine to the hot water valve.
If you want to use both water •
inlets of the product, you can
connect the hot water hose after
removing the stopper and gasket
group from the hot water valve.
* Applies for the products supplied with
a blind stopper group.
When returning the appliance to its
place after maintenance or cleaning,
care should be taken not to fold,
squeeze or block the hoses.
Connecting to the drain
The water discharge hose can be
attached to the edge of a washbasin or
bathtub. The drain hose should be firmly
fitted into the drain as to not loosen in
its housing.
Important:
