9 EN

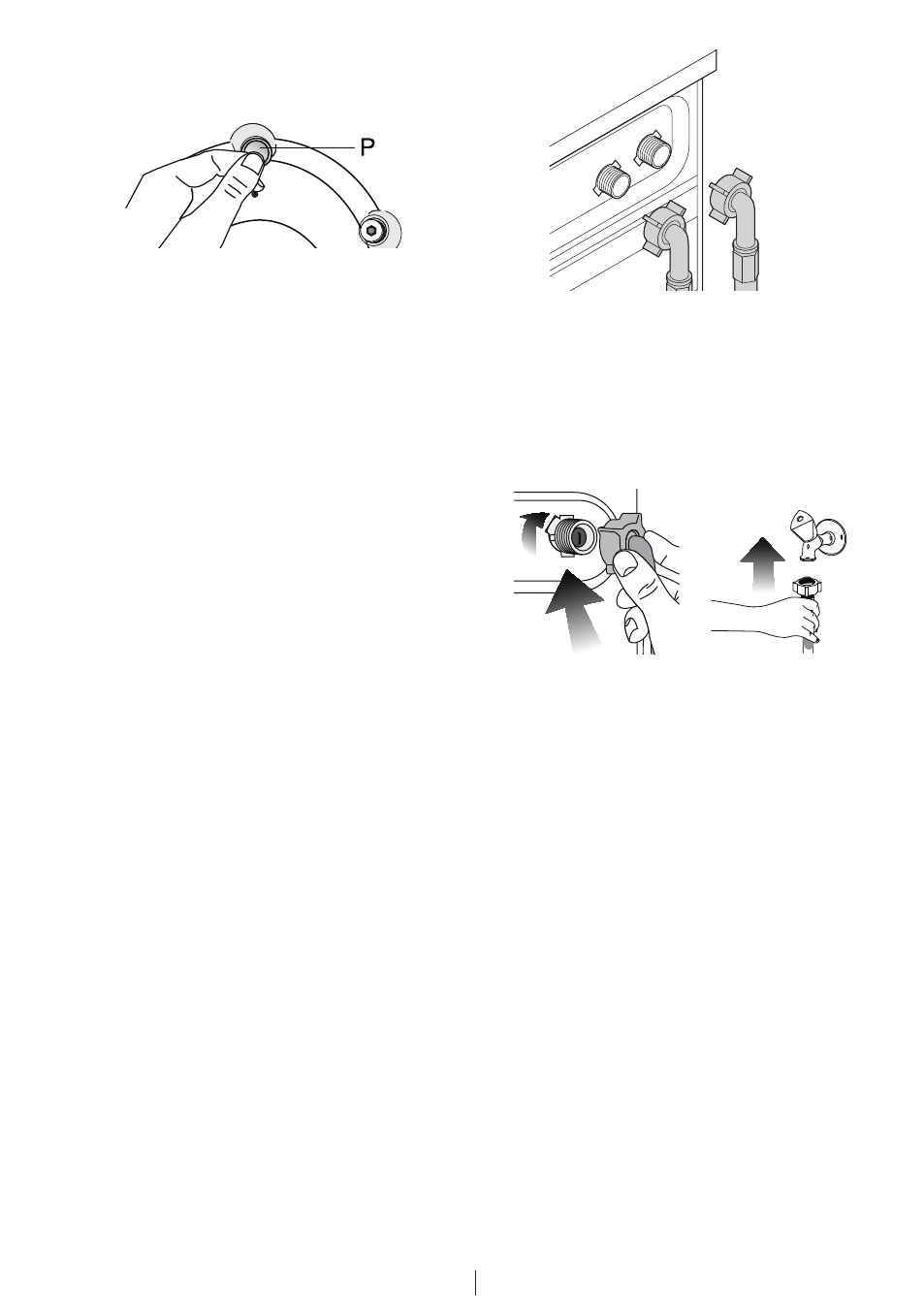

3. Attach the plastic covers supplied in
the User Manual bag into the holes
on the rear panel. (P)
C Keep the transportation safety bolts
in a safe place to reuse when the
washing machine needs to be moved
again in the future.
C Never move the product without the
transportation safety bolts properly
fixed in place!
Connecting water supply
C The water supply pressure required
to run the product is between 1 to 10
bars (0.1 – 10 MPa). It is necessary
to have 10 – 80 liters of water flowing
from the fully open tap in one minute
to have your machine run smoothly.
Attach a pressure reducing valve if
water pressure is higher.
C If you are going to use the double
water-inlet product as a single (cold)
water-inlet unit, you must install the
supplied stopper to the hot water
valve before operating the product.
(Applies for the products supplied
with a blind stopper group.)
C If you want to use both water inlets
of the product, connect the hot water
hose after removing the stopper and
gasket group from the hot water
valve. (Applies for the products
supplied with a blind stopper group.)
A Models with a single water inlet
should not be connected to the hot
water tap. In such a case the laundry
will get damaged or the product will
switch to protection mode and will
not operate.
A Do not use old or used water inlet
hoses on the new product. It may
cause stains on your laundry.
1. Connect the special hoses supplied
with the product to the water inlets
on the product. Red hose (left) (max.
90 ºC) is for hot water inlet, blue hose
(right) (max. 25 ºC) is for cold water
inlet.
A Ensure that the cold and hot water
connections are made correctly when
installing the product. Otherwise, your
laundry will come out hot at the end
of the washing process and wear out.
2. Tighten all hose nuts by hand. Never
use a wrench when tightening the
nuts.
3. Open the taps completely after
making the hose connection to check
for water leaks at the connection
points. If any leaks occur, turn off the
tap and remove the nut. Retighten
the nut carefully after checking the
seal. To prevent water leakages and
damages caused by them, keep the
taps closed when the machine is not
in use.
Connecting to the drain
• The end of the drain hose must be
directly connected to the wastewater
drain or to the washbasin.
A Your house will be flooded if the
hose comes out of its housing
during water discharge. Moreover,
there is risk of scalding due to high
washing temperatures! To prevent
such situations and to ensure smooth
water intake and discharge of the
machine, fix the end of the discharge
hose tightly so that it cannot come
out.
