■ Setting up the speakers (NS-E9900)
Mount the speakers on a wall or place the speakers on
a shelf. Determine the best position by following the
owner’s manual supplied with your amplifier.

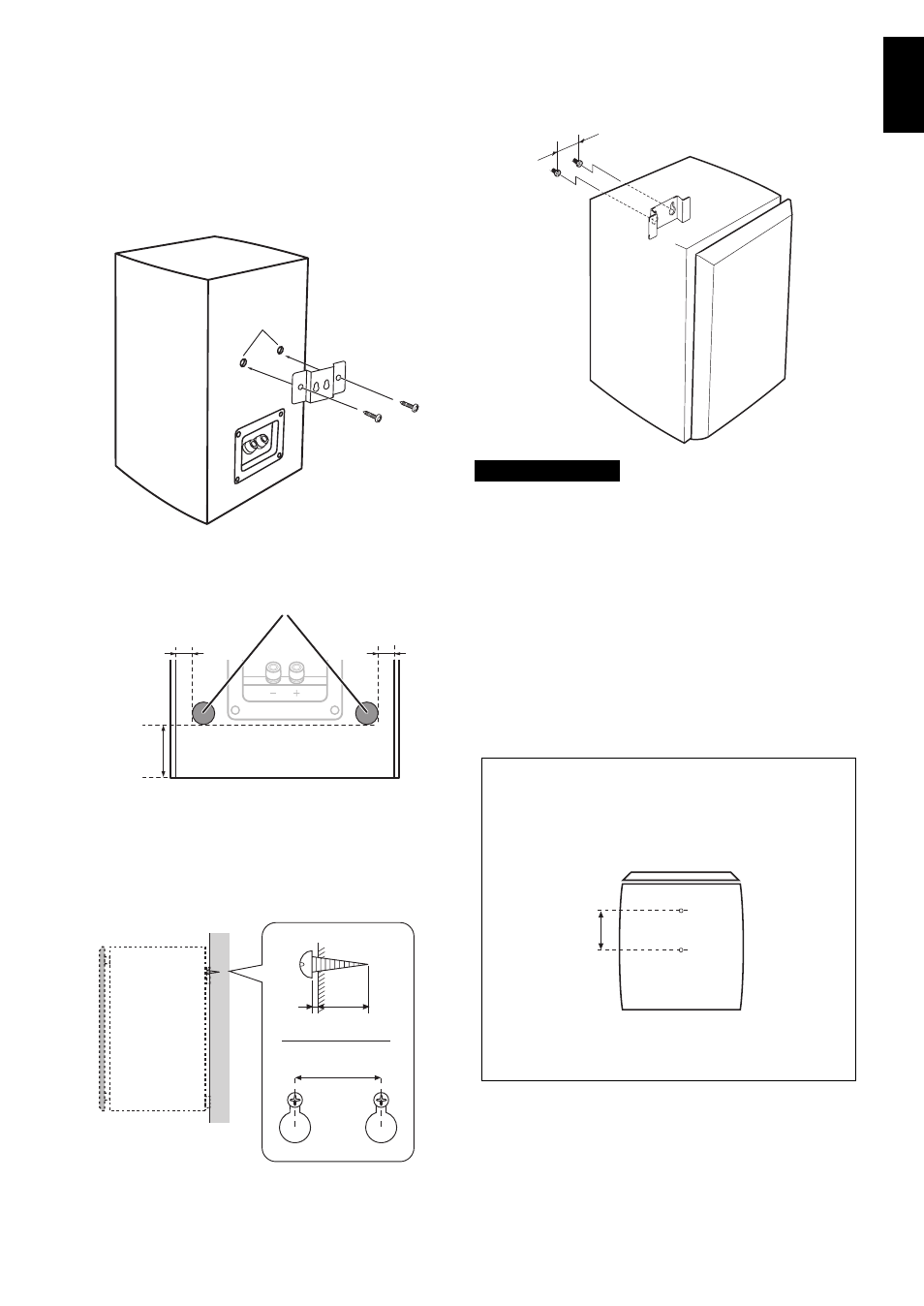

Mounting the speakers on the wall
1
Fasten the supplied bracket on the rear panel with
screws.
2
Attach the supplied pads in the following indicated
positions.
3
Fasten two screws into a firm wall or wall support at
the interval shown below.
4
Hang the speaker by mounting the holes on the
protruding screws.
Make that the screws are securely affixed by the
narrow parts of the holes.
• Each speaker weighs 4.9 kg.
• Do not mount the speakers on thin plywood or a wall
composed of a soft surface material. If mounted, the
screws may pull out of the flimsy surface and the
speakers may fall. This may damage the speakers or
cause personal injury.
• Do not affix the speakers to a wall using nails,
adhesives, or any other unstable hardware. Long-term
use and vibrations may cause the speakers to fall.
• To avoid accidents resulting from tripping over loose
speaker cables, fix the cables to the wall.
• Select an appropriate position on the wall to mount the
speaker so that no one will injure his/her head or face.
Holes
Approx.
60 mm
Approx. 10 mm
Rear panel
Pads
Approx. 10 mm
Tapping screw ( φ 3.5–4 mm)
(Available at the hardware
store)
Min.
20 mm
3 mm
40 mm
Wall/Wall
support
Caution
You can also use the screw holes on the bottom of the
NS-E9900 for installing the speakers on commercially
available speaker stands (if you do not use the provided
brackets).
* Before installing, please refer to the instruction manual
of the speaker stand.
60 mm
Bottom view
