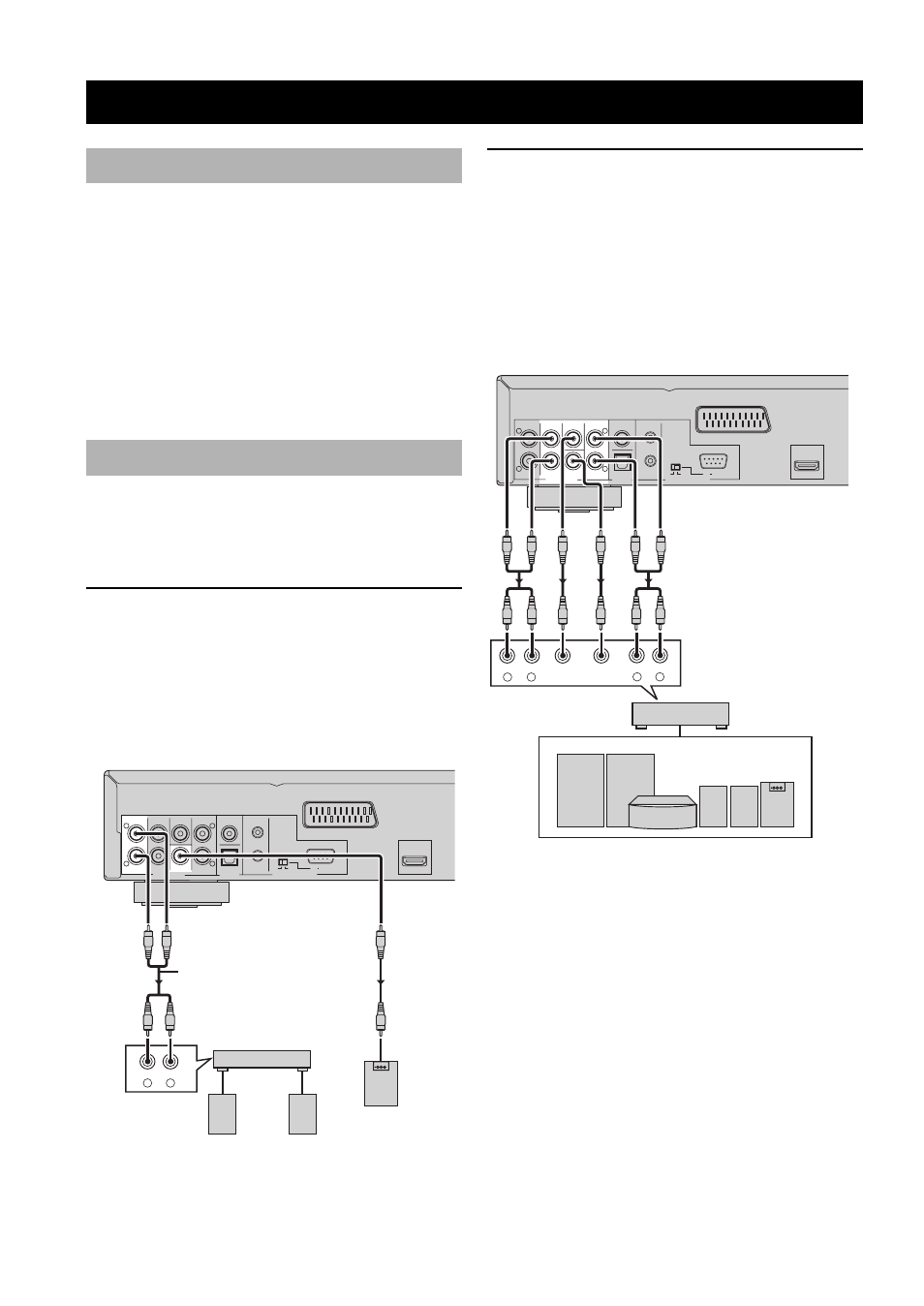

CONNECTIONS

10

En

Be sure to turn off this unit and unplug the power supply
cable, before you make or change connections.
• Depending on the component you want to connect, there

are various ways to make connections. Possible
connections are described below.

• Refer to the manuals supplied with your other

components as necessary to make the best connections.

• Do not connect this unit via your VCR. The video

quality could be distorted by the copy protection system.

• Do not connect the audio out jack of this unit to the

phono in jack of your audio system.

This unit has digital coaxial, digital optical, analog 6ch
discrete, and analog mixed 2ch output jacks. Connection
depends on the availability of audio jacks on your
component.

Connecting a stereo amplifier

Connect

AUDIO OUT (MIXED 2CH)

jacks of this unit to

the corresponding input jacks of your audio component
(such as a stereo amplifier) using the supplied audio pin
cable. You can connect a subwoofer to the

SUBWOOFER

jack.

Connecting an AV receiver with 6ch/
multi-channel input

Analog connections

If you want to reproduce multi-channel Super Audio CD
(SA-CD) and DVD-Audio, connect

AUDIO OUT (6ch

discrete)

jacks of this unit to the corresponding input

jacks of your AV receiver using commercially available
audio pin cables.

CONNECTIONS

General notes on connections

Audio connections

REMOTE CONTROL

RS 232C

IN

OUT

ON

OFF

AUDIO OUT

SUBWOOFER

CENTER

SURROUND

DIGITAL

COAXIAL

OPTICAL

MIXED 2CH

FRONT

L

R

L

R

AV

HDMI

R

L

CD / DVD

This unit (U.K., Europe, and Russia models)

Stereo

amplifier

Left

speaker

Right

speaker

Subwoofer

Audio pin cable
(supplied)

MIXED 2CH

REMOTE CONTROL

RS 232C

IN

OUT

ON

OFF

AUDIO OUT

FRONT

SUBWOOFER

CENTER

SURROUND

DIGITAL

COAXIAL

OPTICAL

L

R

L

R

AV

HDMI

R

L

FRONT

R

L

SURROUND

CENTER

SUBWOOFER

This unit (U.K., Europe,

and Russia models)

AV receiver

Speakers
