Руководство пользователя для Cybex
Предостережения и предупреждения
Предостерегающие надписи указывают на потенциально опасные ситуации, которые (в
случае если не будут предотвращены) могут повлечь причинение тяжкого вреда здоровью или
смертельный исход.
Предупреждающие надписи указывают на возможность опасной ситуации, которая (в случае если
не будет предотвращена) может повлечь причинение легкого или среднего вреда здоровью.

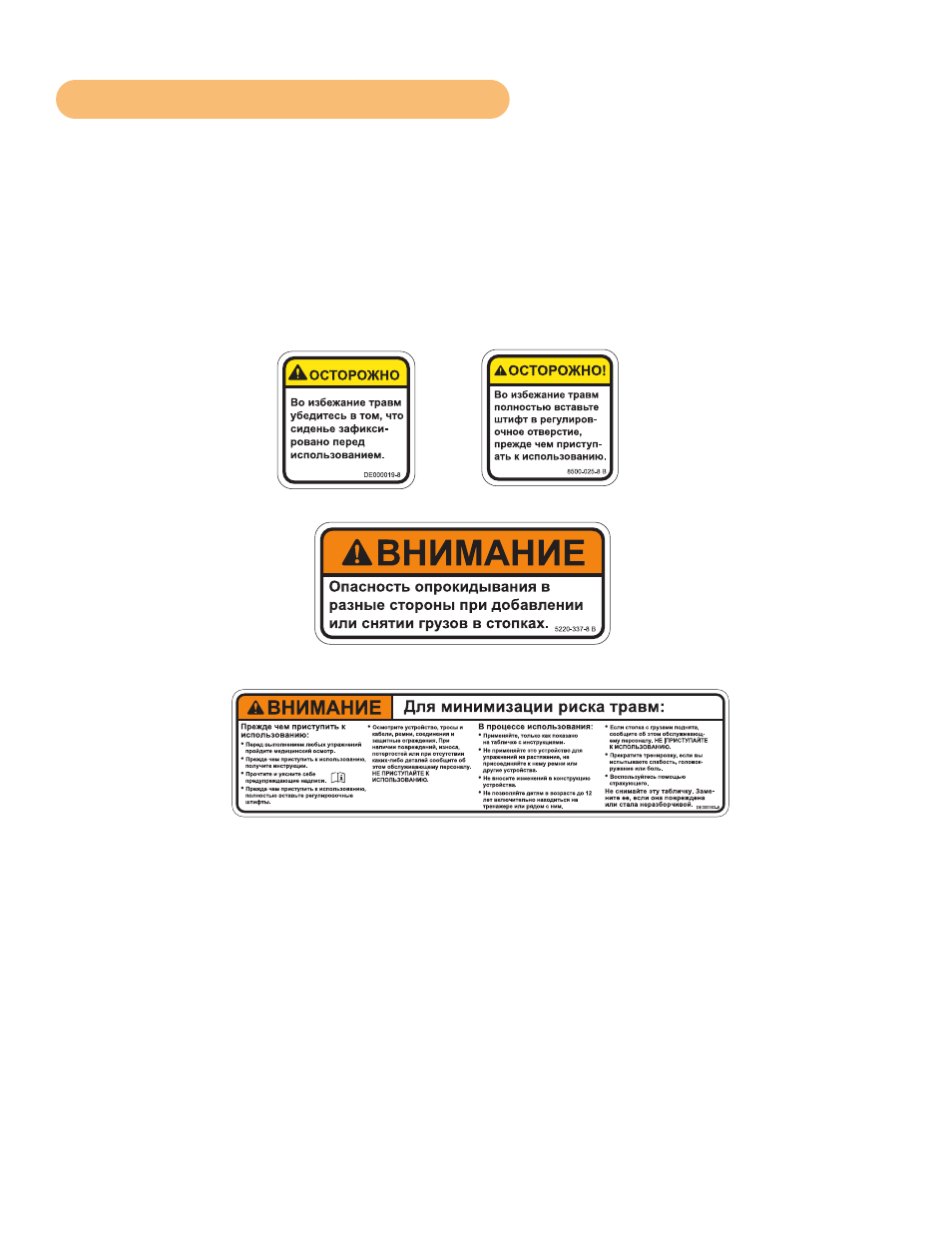

Предостерегающие и предупреждающие надписи приводятся на следующей странице. Схемы,
приводимые после надписей, указывают на расположение каждой надписи.
