4

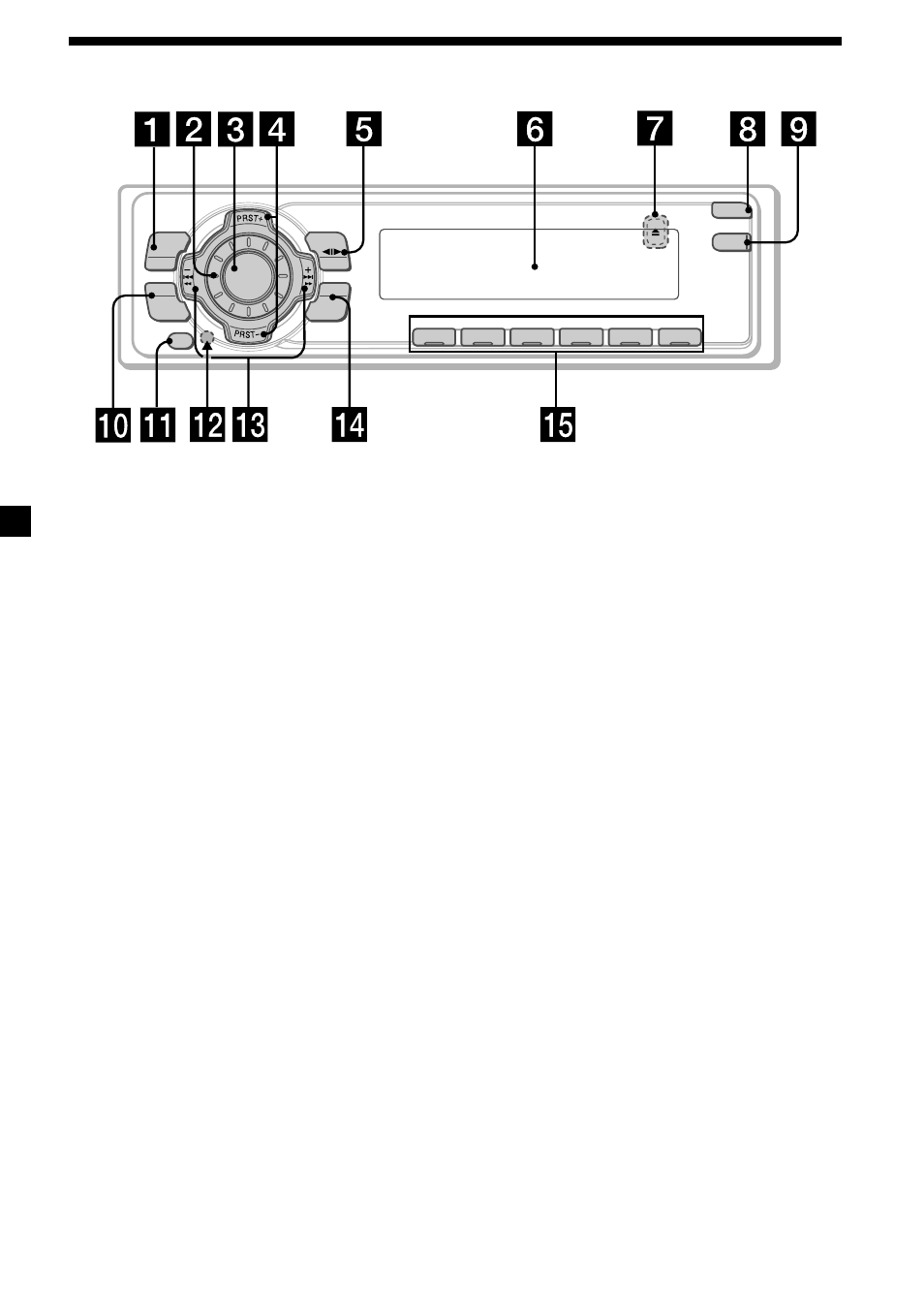

Location of controls
Refer to the pages listed for details.
1 MENU button
6, 8, 9, 10, 11, 14
2 Volume control dial
3 SOURCE (TUNER/TAPE) button
6, 7, 9, 10
4 PRST +/– (cursor up/down) buttons
6, 8, 9, 10, 11, 14
During radio reception:
Preset stations select 10
5 MODE (o) button 7, 8, 9, 10
During tape playback:
Playback direction change 7
During radio reception:
BAND select 9, 10
6 Display window
7 Z (eject) button (located on the front side
of the unit behind the front panel) 7
8 OPEN button 5, 7, 15
9 D-BASS button 14
q; SOUND button 13
qa OFF button* 5, 6, 7
qs Reset button (located on the front side
of the unit behind the front panel) 5
qd SEEK/AMS –/+ (cursor left/right) buttons
6, 7, 8, 9, 10, 11, 13, 14
Seek 10
Automatic Music Sensor 7
Manual search 10
qf ENTER button
6, 8, 9, 10, 11, 14
qg Number buttons
During radio reception:
Preset number select 9, 10
During tape playback:
(1) REP 8
* Warning when installing in a car
without ACC (accessory) position on
the ignition key switch
Be sure to press (OFF) on the unit for two
seconds to turn off the clock display after
turning off the engine.
When you press (OFF) only momentarily,
the clock display does not turn off and this
causes battery wear.
SOURCE
MODE
OFF
ENTER
MENU
SOUND
1 2 3 4 5 6
-SEEK/AMS
REP
OPEN
D-BASS
XR-4950X
