5

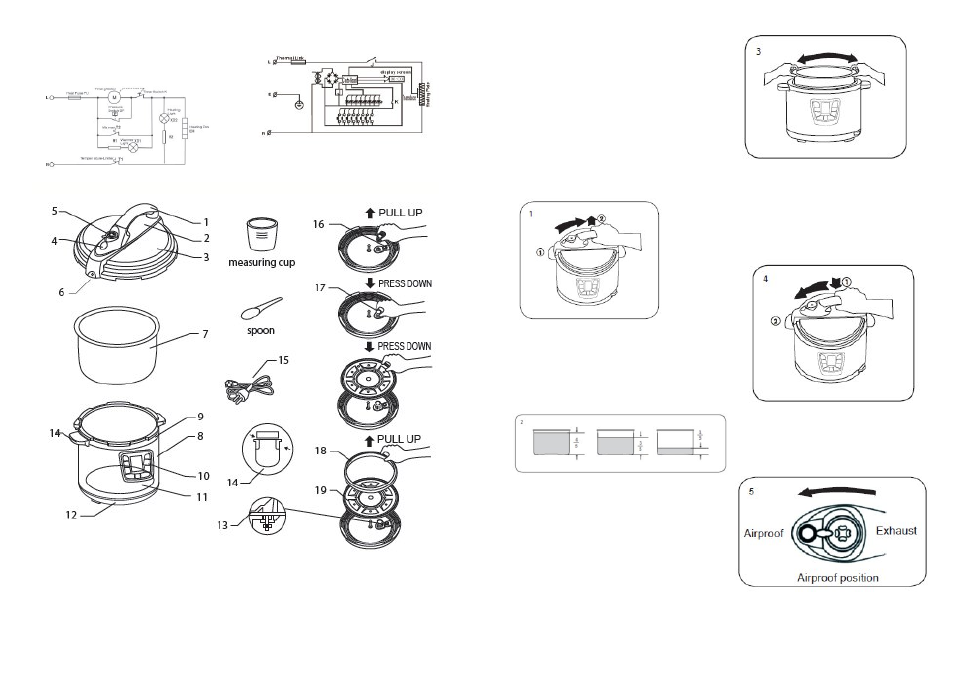

2) Circuit Diagram
Computer Elementary Diagram
3) Product Structure
1. Handle Cover
2. Handle
3. Lid
4. Floating Valve
5. Relief Valve
6. Auto Bolt
7. Inner Pot
8. Housing
9. Upper Edge
10. Control Panel
11. Heating Plate
7
12. Unit Base
13. Floater
14. Water Collector
15. Power Cord
16. Seal Ring for Floating Valve
17. Filter
18. Seal Belt
19. Aluminum Lid
4) How To Use This Product
1. Open the lid.
Hold the handle firmly, turn it clockwise
to the clamping position and then lift it.
(See Figure 1.)
2. Take out the inner pot and place and
water in. The amount of food and water
shall not exceed 4/5 of the height of
inner pot. For food that will expand in
water, the level should not exceed 3/5
of the inner pot. The minimum allowable
level would be 1/5 of the inner pot. (See
Figure 2.)
In case of cooking rice, the maximum
amount of rice allowed 12 cups.
Normally one cup of rice will need one
cup of water for cooking rice.
But this can be changed according to
the taste of different individuals.
3. Clean the inner pot and heating plate
before cooking; be sure there are no
sundries left inside the outer pot or on
the surface of heating plate; turn the
inner pot slightly to fit it well with the
heating plate. (See Figure 3.)
4. Close the lid
*Make sure the seal belt fitted onto the
Aluminum lid;
*Move the seal belt to make sure it fit
snugly in place in the lid;
*Close the lid and turn the handle coun-
ter-clockwise till a sound of clamping is
heard. (See Figure 4.)
5. Fix the pressure relief valve in place;
turn it to ‘Airproof’ position and check
whether the floater has fallen down (the
floater should be down in place before
heating) (See Figure 5.)
6. Switch power on and a sound ‘ Bi’ will
be heard , display shows “00:00” in red,
