Description of the appliance

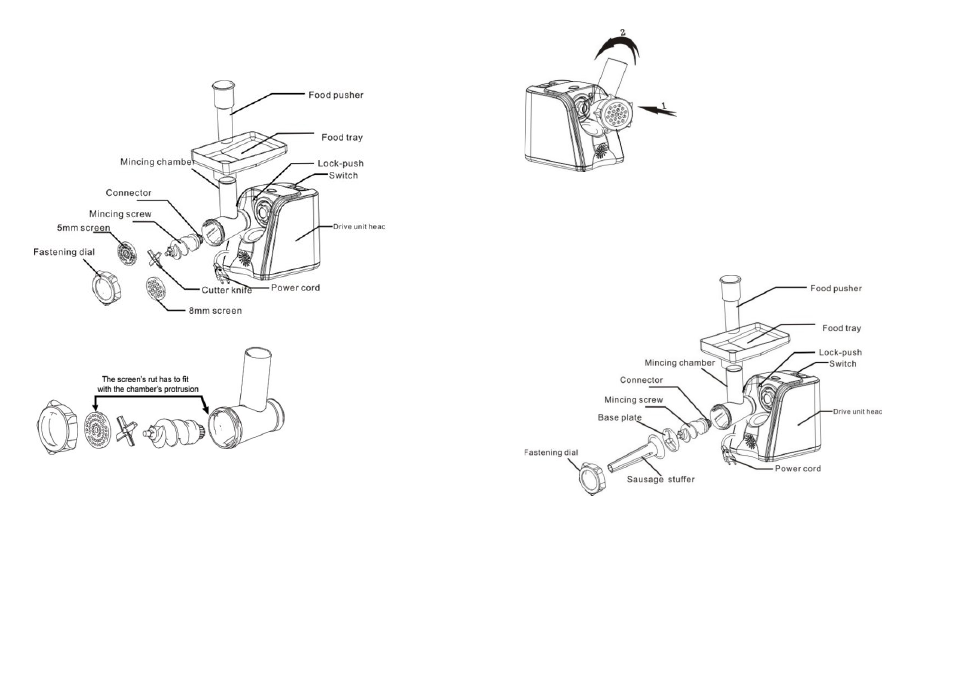

Name of Parts
◆
Preparing the meat mincer to
work and the actuation of the
appliance
– Place the drive unit close to the
power network socket, on a firm
surface so as not to cover the
ventilation holes within the casing.
– Before the first use of the meat
mincer, wash the equipment
elements.
– Assemble the appropriate equipment
and join it with the drive unit.
– Put the power cord into the supply
network socket.
– Turn the meat mincer on with the
main switch.
◆
Operating the mincing set
5
1.Put the following elements into the
mincing chamber:
– Mincing screw with the coupling
towards the middle,
– Put the cutter knife on the mincing
screw end, with the sharp edges
facing outside.
– Put the screen so that the chamber’s
protrusion enters the rut of the
screen.
2.Tighten all the elements of the
mincing set – until home.
3.Put the assembled unit (1) onto the
drive unit (2) and turn into the
position, when you hear click of the
safety lock.
4. Put the food tray onto the mincing
chamber.
◆
Using methods
— Put the meat around 300g (Suggest
using without bone and muscles of
meat) onto the food tray.
— Connect the power supply and turn
on the switch. After the normal
operation of the confirmation mincer,
put the ready meat into the chute feed
tube.
— If food cannot be involved in the
food screw, Please use food pusher
slowly push food. Do not use other
alternative the food pusher.
— After use, please cut off the power
supply.
Making sausage installation method
Name of Parts
◆
Sausage stufferinstallation
method
1. Holding the chute toward switch
button direction tilted about 45
degrees of embedded in the chute
holder, counterclockwise revolving
body fasten tightly, lock - push
automatic fixed tightly chute.
2. Will the mincing screw Placed into
chopper tee.
3. Cross knife will be installed in the
mincing screw, knife leaves toward
outside. (If not installed correctly, will
not working).Put on base plate.
4. The sausage stuffer into chute.
5. Tighten the fastening dial.
6. The feeder tray into chute, and
fixed. Place the chopper on a dry and
horizontal surface.
