5
1. Food Pusher
2. Hopper Tray
3. Locking Button
4. Decorative Cover
5. Motor Housing
6. ON/OFF/Reverse Switch
7. R / ON Switch
8. Grinder Chassis
9. Grinder Head
10. Feed Screw
11. Grinding Plate (fine)
12. Grinding Plate (medium)
13. Grinding Plate (coarse)
14. Cap
15. Cutting Blade
16. Kibbe Attachment
17. Sausage Stuffer
18. Grinder Head Inlet
19. Tray
20. Cap
21. Standard Level
22. Feed Screw Bracket
23. Covering Plate
24. Wire Frame
25. Feed Screw
26. Food Pusher
27. Slicer Housing
28. Dise Slitting Knife (medium)
29. Dise Slitting Knife (fine)
30. Dise Slitting Knife (coarse)
IMPORTANT SAFEGUARDS
♦ Household use only. Do not use for
industrial purpose.
♦ Read these instructions for use
carefully and look at the illustrations
before using the appliance.
♦ Keep these instructions for use for
future reference.
♦ Check, if the voltage indicated on
the appliance corresponds to the local
mains voltage before you connect the
appliance.
♦ Never use any accessories or parts
from other manufactures. Your
guarantee will become invalid, if such
accessories or parts have been used.
♦ Never try to replace the parts and
repair the unit by yourself.
♦ Do not use the appliance if the
mains cord, the plug or other parts are
damaged.
♦ If the mains cord of this appliance
is damaged, it must always be replaced
by manufacture or a service center
authorized, in order to avoid hazardous
situations.
♦ Thoroughly clean the parts that
will come into contact with food before
you use the appliance for the first time.
♦ Unplug the appliance immediately
after use.
♦ Never use you finger or an object
to push ingredients down the feed tube
while the appliance is running. Only the
pusher is to be used for this purpose.
♦ Keep the appliance out of the
reach of children.
♦ Never let the appliance run
unattended.
♦ Switch the appliance off before
detaching and install any accessory.
♦ Wait until moving parts have
stopped running before you remove the
parts of the appliance.
♦ Never immerse the motor unit in
water or any other liquid, nor rinse it
under the tap. Use only a moist cloth to
clean the motor unit.
♦ Do not attempt to grind bones,
nuts or other hard items.
♦ Never reach into the cutter
housing. Always use the pusher.
♦ Continuous running of meat
grinder should be not more than 10
min. Before it's used again, it must cool
down enough, about 10 min.
♦ Reverse function is prohibited
while the appliance is operating (For
example, switch "ON" knob to "R" knob
or on the contrary), wait at least one
minute until grinder has come to a
complete stop. Otherwise it may cause
an abnormal noise, vibration or a
transitory electric spark in the
appliance. It could result easily damage
to appliance and make a user
frightened.
♦ To avoid jamming, do not apply
excessive pressure while operating.
♦ When the circuit breaker activates,
do not switch on.
♦ Do not dispose of electrical
appliances as unsorted municipal waste,
use separate collection facilities. Contact
your local government for information
regarding the collection systems
available. If electrical appliances are
disposed of in landfills or dumps,
hazardous substances can leak into the
groundwater and get into the food
chain, damaging your health and well-
being.
♦ When the appliance is not in use
and before cleaning, unplug the
appliance from the outlet.
♦ To protect against the risk of
electrical shock, do not immerse the
unit, cord or plug in water or other
liquid.
♦ This appliance is not intended for
use by persons (including children) with
reduced physical, sensory or mental
capabilities, or lack of experience and
knowledge, unless they have been given
6
supervision or instruction concerning
use of the appliance by a person
responsible for their safety.
♦ Children should be supervised to
ensure that they do not play with the
appliance.
FOR THE FIRST TIME
♦ Check that voltage indicated on
the rating label corresponds to the
mains voltage in your home.
♦ Wash all parts (except body) in
warm soapy water.
♦ Before plugging in, ensure the
"ON/OFF/ Reverse" switch is turned to
"OFF" position.
REVERSE FUNCTION
♦ In case of jamming, switch the
appliance off by turning the "R / ON"
switch to "R" position and "ON/OFF/
Reverse" switch to "R" position. Feed
screw will be rotating in the opposite
direction, and the head will get empty.
FOR USE ASSEMBLING
♦ Make sure the unit is unplugged
while assembling.

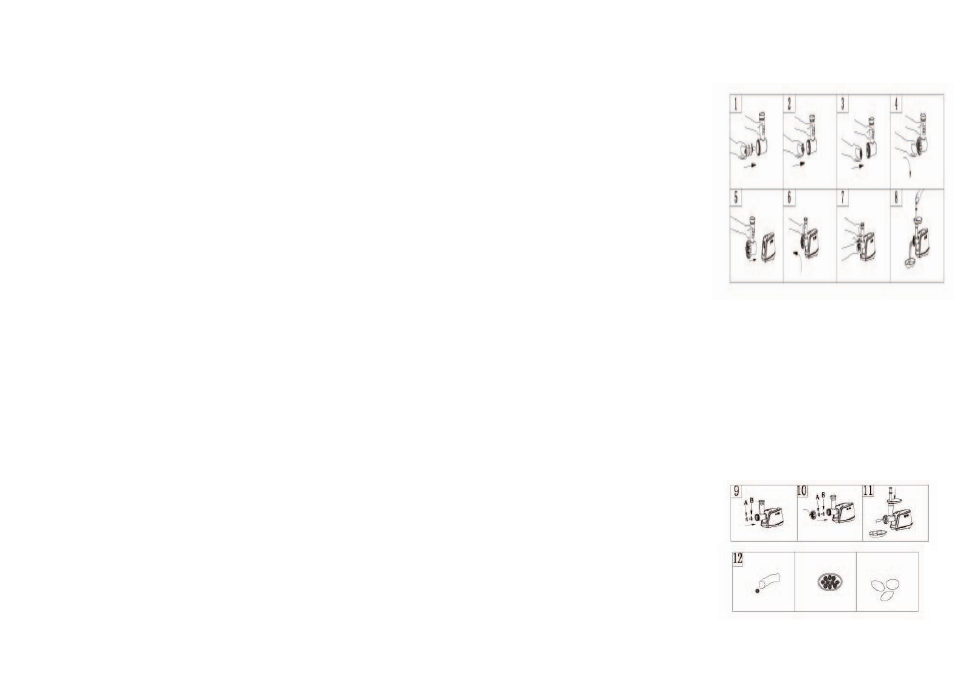

♦ Insert the feed screw into the
grinder tube, long end first (fig. 1).
♦ Position the cutting blade onto the
feed screw with the flat surface of the
blade facing you. NOTE: If it is not
fitted properly, meat will not be ground
the cutting plate may be damaged (fig.
2).
♦ Position the desired cutting plate
onto the feed screw, against the flat
sides of the cutting blade. Be sure the
notched on the cutting plate fit into the
slots in the grinder tube (fig. 3).
♦ Securely attach the cap to the end
of the grinder tube (fig. 4). Do not over
tighten.
♦ Press the lock button and insert
the grinder head into the opening of the
motor housing. Push in and turn counter
clockwise until the safety lock clicks into
place (fig. 5, 6, 7).
♦ Place the hopper tray on the feed
tube (fig. 8).
♦ When you are ready to grind, use
the food pusher to push food gently,
one piece at a time into the feeding
tube. Do not force the food into the
tube.
MINCING MEAT
♦ Make sure the unit is unplugged
while assembling.
♦ Before operating please assemble
the unit (fig. 1 to 8).
♦ Cut foods into pieces (sinewless,
boneless and fatless meat is
recommended, approximate size: 20
mm x 20 mm x 60 mm), so that they fit
easily into the hopper.
♦ Plug in and turn the "R / ON"
switch to "ON" position. Turn the
"ON/OFF/ Reverse" switch to "ON". The
ground meat will come out through the
grinding plate in the head. Note: The
grinder must be ON BEFORE adding
food.
♦ Place food in the hopper tray and
use the food pusher to feed food into
the hopper opening. CAUTION: DO
NOT USE YOUR FINGERS TO FEED
FOOD THROUGH THE HOPPER. NOTE:
The grinder head may rotate slightly
during use, but it is normal. Do not over
tighten to stop this movement. It may
cause damage (fig. 8).
♦ Turn the unit OFF when complete.
MAKING KIBBE
♦ Make sure the unit is unplugged
while assembling.
