4. DEVICE DESCRIPTION
The conditioner consists of indoor and outdoor units connected by
pipelines. The conditioner is controlled from a remote control board or
from a control panel of the indoor unit.

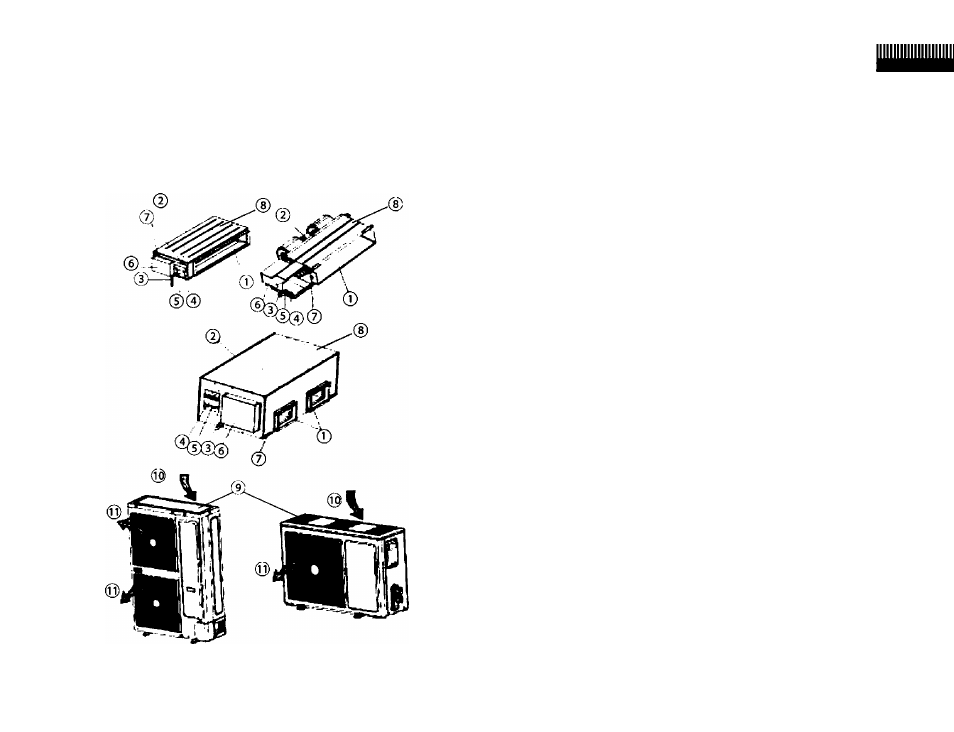

Figure 1. Device desaiption
ENGLISH
1. Air outlet
2. Airinlet
3. Drain pipe
4. Liquid pipe
5. Gas pipe
6. Electric control cabinet
7. Hook
S.lndoorunit
9. Outdoor unit
10. Intake grilles outdoor unit.
11 .Air discharge grill outdoor unit.
5. DELIVERY SET
Complete set ofairconditioner(split system) includes:
Conditioner unitfor indoor installation -1 piece
Conditioner unit for outdoor installation -1 piece
Remote control-1 piece
Batteries for remote control board -
2
pcs.
Operator's manual-1 piece
Warranty card-1 piece
Packing of indoor-installation unit -1 piece
Packing of outdoor-installation unit-1 piece
6. DEVICE CONTROL
The conditioner is controlled from a remote control board or from a control
panel of the indoor unit.
Figure 2. Description of indoor unit control board
14
15
13
o o o a
RUN DEFROST TIMER PROTENTION
12
EMERGEtO
16
17
Control and indication board of your conditioner may visually differ from a
layout view shown below. Its functions will remain the same.
