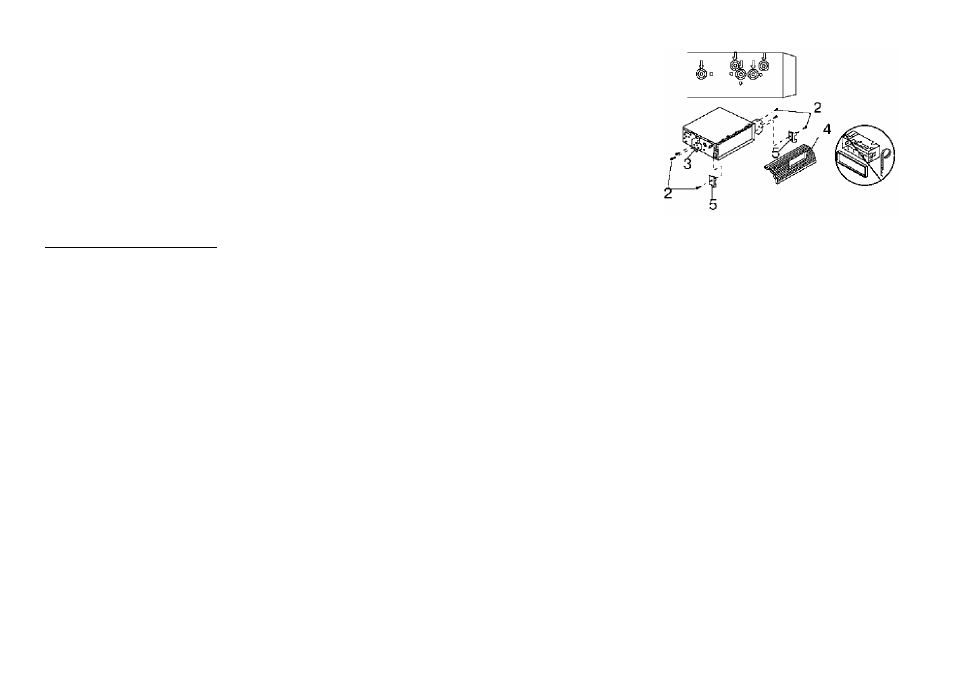

1. Select a position in which the screw holes of the brackets (3) are aligned with the screw holes
in the nnit body, and screw in two screws (2) in each side.
2. Screw.
3. Factory radio mounting brackets.
4. Vehicle dashboard.
5. Lock (remove this part).
Note: The outer trim frame and mounting sleeve are not used for method of installation.
Detachable control panel
Detaching the control panel
Press REL button on the front panel. The panel will go down. Take off the panel.
Attaching the control panel
Insert the right side of the control panel into the main unit. Press the left side of the control panel until a click sound is heard.
Caution:
Do not insert the control panel from the right side. It can damage the control panel. The control panel can easily be damaged by
shocks. After removing it, place it in a protective case and be careful not to drop it or subject it to strong shocks. The rear connector
that connects the main unit and the control panel is an extremely important part. Be careful not to damage it by pressing on it with
fingernails, pens, screwdrivers, etc.
Note: If the control panel is dirty, wipe off the dirt with soft, dry cloth only. And use a cotton swab soaked in isopropyl alcohol to
clean the socket on the back of the control panel.
