SAVE THESE INSTRUCTIONS

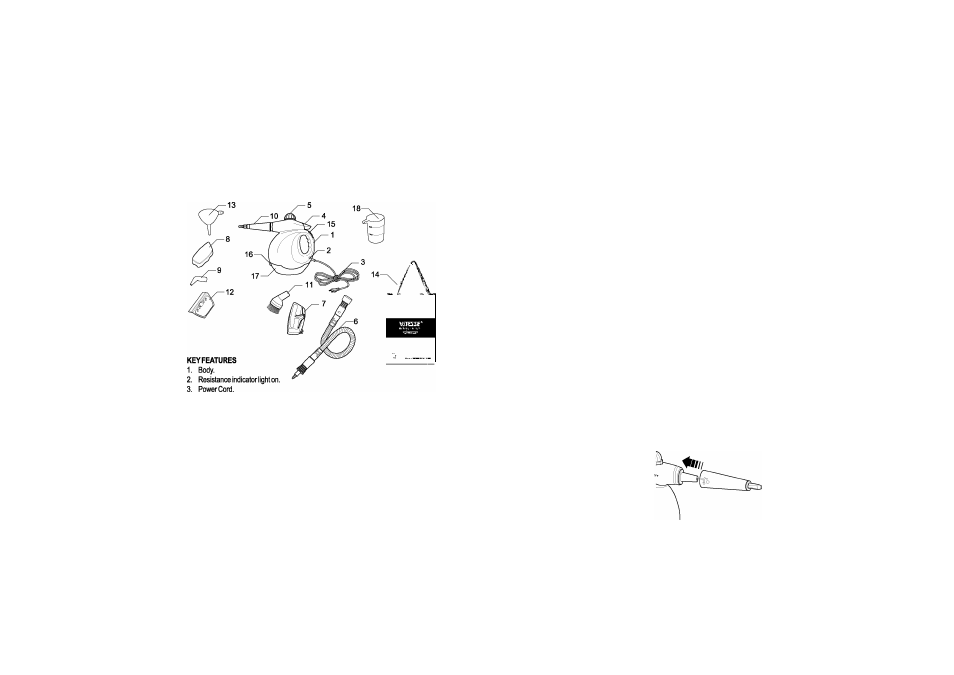

Steam Lever.
Boiler cap.
Extension Hose-for increasing the flexibility of the appliance.
Upholstery Nozzle - the flat surface covers wide areas.
Cloth Cover - the fabric cover is best for stain removal from upholstery and carpets.
Angled Nozzle - attaches to (10) for hard to reach areas.
10. Bayonet Tip - Standard attachment with fine point spray end.
11. Nylon Round Brush - For Smaller areas and appliances. Ideal for detail work and
scrubbing
12. Window Squeegee - attaches to the Upholstery Nozzle for cleaning glass.
13. Water refill - forfllling the appliance with water.
14. Carrying Bag.
15. Detergent release button
16. Detergent container release button
17. Detergent container
18. Measuring Cup
P/3
INSTRUCTIONS FOR USE
The Steam Cleaner can clean and sanitize all types of surfaces designed to withstand
high temperatures such as marble, ceramic, stone sealed wood, sealed grout, cook tops,
window, mirrors, etc. It is not recommended for use on unsealed wood surfaces, cold
glass and soft plastic areas.
WARNING: On surfaces that have been treated with wax, the wax may be removed
by the heat and steam action. Do not use on unsealed wood floors or direct steam
on any wood floor for an extended period of time. This could cause the wood grain
to rise. It is therefore, recommended that you check the use and care instructions
of any surface from the manufacturer to ensure suitability to steam cleaning and
that sample cleansing be carried out on an isolated area of the desired surface. In
case steam is used to smooth wrinkled fabric or clothing, do not direct steam at the
body.
ASSEMBLY AND USE
WARNING: The steam lever must be held in operation until all steam pressure has
been released prior to removing the Water Tank Cap. Please also note that the unit
is not to be plugged into an electrical outlet until step 8.
1. Press the Water tank cap and Un-screw it to the empty water tank. Using the
measuring cupfill tank with one measure of water equivalent to 300 ml
NOTE: Do not overfill, to reduce the risk thatwater coming out.
2. Re-seal the water tank by screwing the WaterTank Cap back into place.
USE OF ACCESSORIES
Before using the Steam Cleaner, the attachment of an accessory will be required in
conjunction with the type of surface to be cleaned.
3. Please put the Spray-Nozzle and the
slot of the machine in order, along the
direction arrow, and insert it, then
clockwise turn 90°. To remove the
Spray-Nozzle,
please operate
reversely.
4. To use the other accessories it must be
attached onto the end using the same
process as outlined in step 3.
P/4
