Installation/ connection

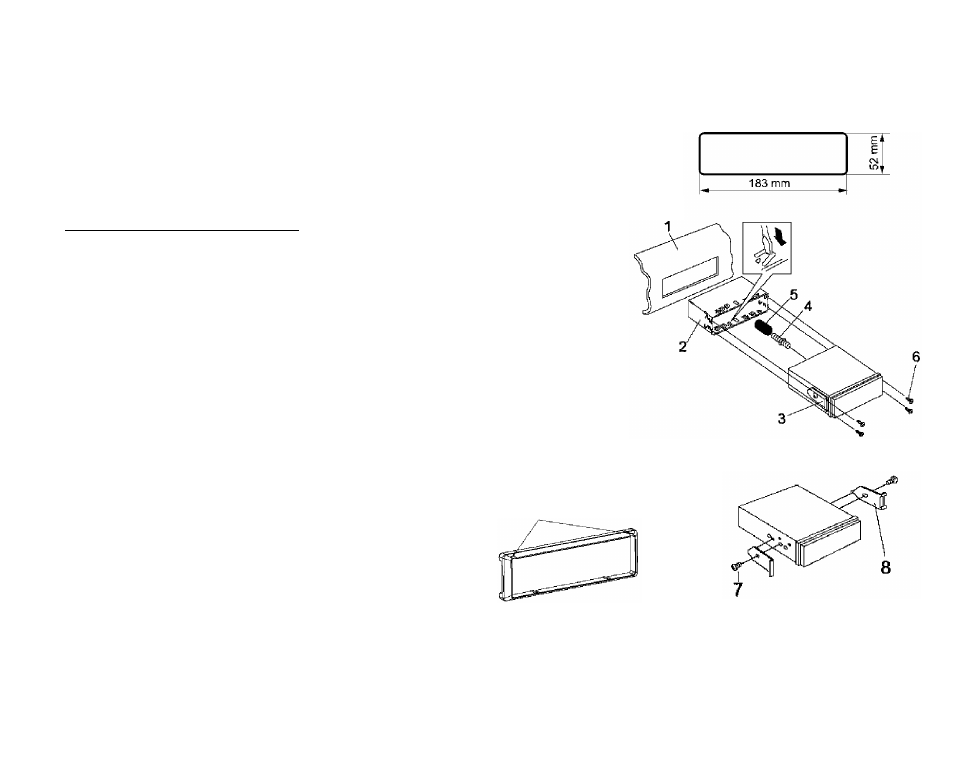

This unit can be installed in any dashboard having an opening as shown on the
picture. The dashboard should be ~ 4.5 - 5.5 mm thick in order to be able to
support the unit.
Din front-mount (method 1)
1.
2.
3.
4.
5.
6.
Insert mounting bracket (2) into the dashboard (1), select the
appropriate tabs and bend them out with a screwdriver.
Use 2 pieces of M5 cone shaped screws (7) to fix two assemble bars (3)
on both sides of the unit.
Secure the rear of the unit. Fix mounting bolt (4) on the rear panel of
the unit.
Put the rubber cushion (5) on the bolt.
Insert the unit into the mounting bracket (2). Use 4 pieces of M2 screw to
lock the assemble bars (3) and the mounting bracket (2) in position.
Attach the trim ring around the front panel with 2 indentions on one side
f acing upwards . Indentions face upward
Note: according to the depth of the opening, use different length of assemble bar accordingly. If the opening is
too shallow the monitor may be extended out 10 mm from the dashboard.
