Note: For your driving safety, please link your parking wire with low power level, and keep it controlled by
manual brake switch. Wire should be high power level and the unit cannot play video disc.
Caution: For some car models you may need to modify wiring of the supplied power cord. Contact your
authorized car dealer before installing this unit.

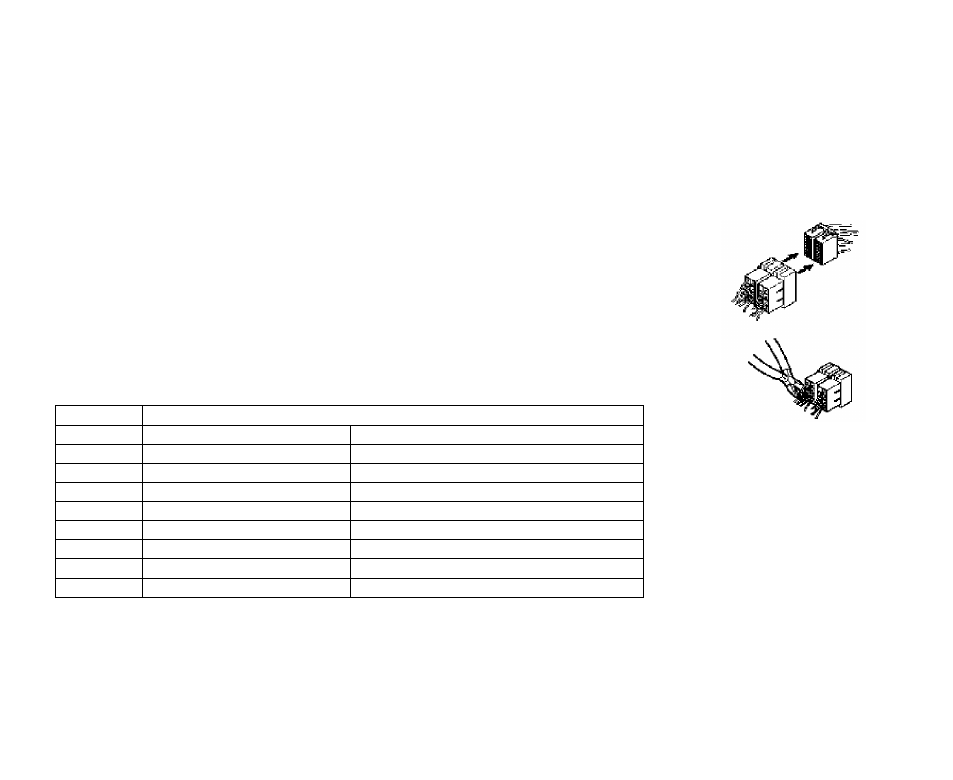

Using the ISO Connector
1. If your car is equipped with the ISO connector, then connect the ISO connectors as
illustrated.
2. For connections without the ISO connectors, check the wiring in the vehicle carefully
before connecting, incorrect connection may cause serious damage to this unit.
3. Cut the connector, connect the colored leads of the power cord to the car battery as
shown in the color code table below for speaker and power cable connections.
Location Function
Connector A Connector B
1 Rear Right(+)—Purple
2 Rear Right(-)—Purple/Black Stripe
3 Front Right(+)—Grey
4 Battery 12V (+)/yellow Front Right(-)—Grey/Black Stripe
5 Auto Antenna/blue Front Left(+)—White
6 Front Left((-)—White/Black Stripe
7 ACC+/red Rear Left(+)—Green
8 Ground/black Rear Left(-)—Green/Black Stripe
10
