Monitor operations
Open/close TFT monitor
1. Press the OPEN button on the panel to open the monitor to the last viewing position.
2.
Press the OPEN button to load the monitor to the unit.
Notes:
-
If the monitor is turned to the left or right, you cannot close it (pic 1).
-
The monitor can be turned to the left or right at 30° (pic 2).

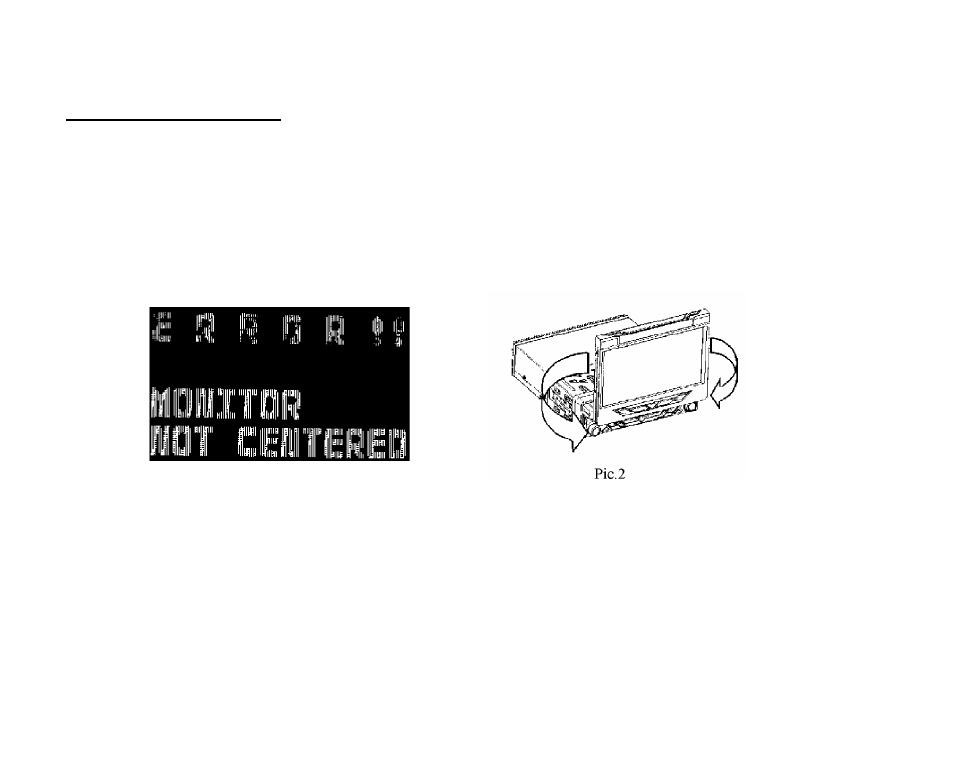

Pic.1
Monitor tilt angle adjustment
•
Press TILT on the panel or on the remote control to change the display angle.
•
You also can turn the monitor position turning it le^ and right manually.
Monitor movement mechanism
When any path blocking or obstruction for the movement of the monitor occurs, the following protection
executes to prevent any damage to the loader or the monitor. After the protection executed normal operating
