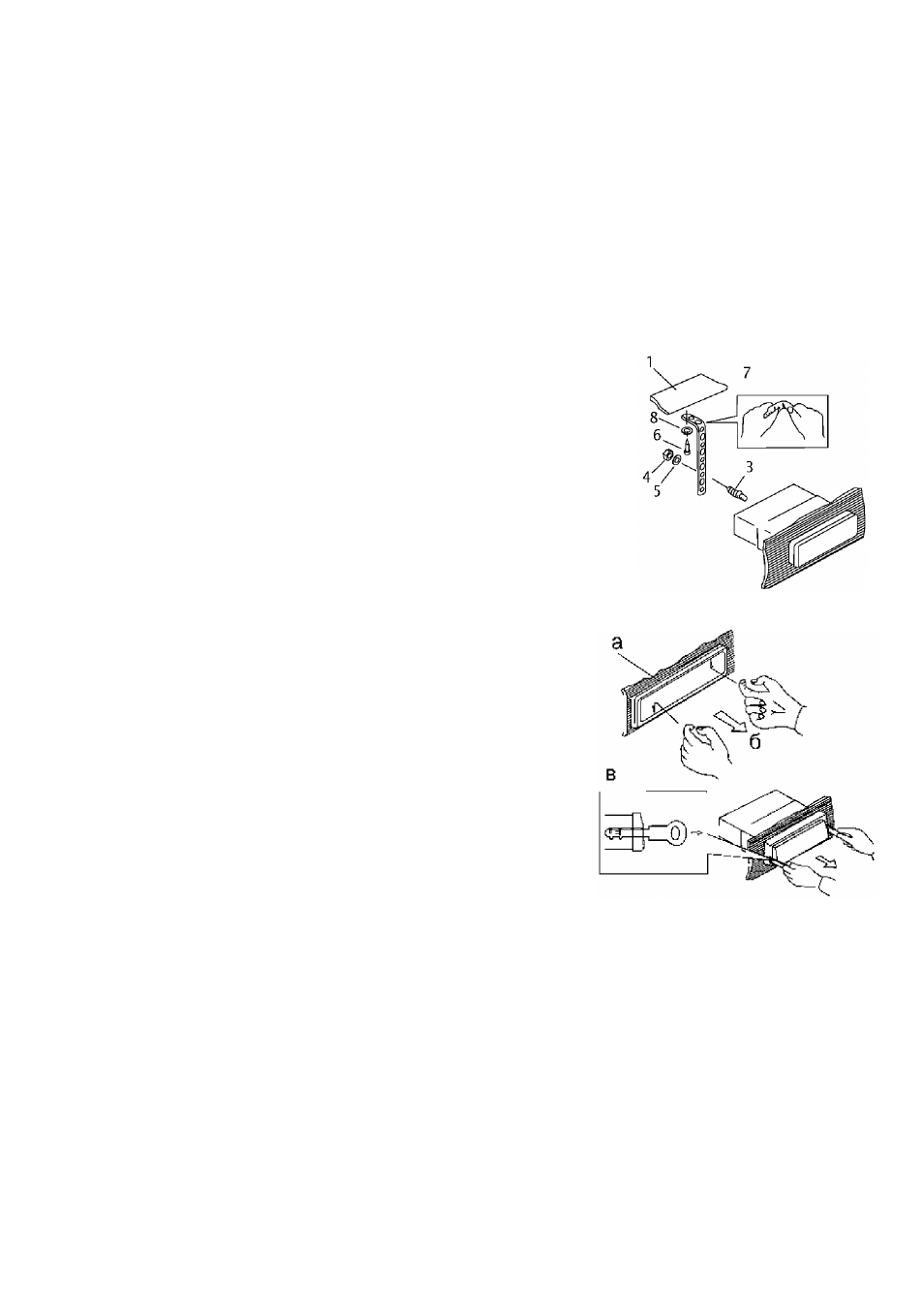

1. Install the sleeve into the dashboard; ensure it is installed with the correct
side and there are no obstacles (wires, dashboard elements, etc) for the
unit installation.
2. After installing the sleeve into the dashboard, bend tabs fitting to the size
of the dashboard to fix the sleeve in place.
3. Use the metal strap to fix the rear side of the unit. Determine a place for
fixing and install the strap as shown in the picture. You can bend the strap
to the needed angle with your hands.
4. Make the necessary wire connections. Ensure the connections are correct.
5. Install the unit into the sleeve until the side locks are fixed.
Dismantling the unit
a - Trim frame
6 - Frame uninstall direction
B - Release key insertion
1. Switch off the unit and detach the front panel.
2. Insert your fingers into the groove in the front side of the trim frame
(apply some effort to detach the frame). Pull the frame to detach it.
3. Insert the supplied release keys into the both sides of the unit body
to click, as shown in the picture. To extract the unit from the
dashboard, pull the release keys or the unit body to pull it out.
Before detaching the unit, ensure it is not fixed with the metal strap.
