insfallafion of gas tookors
^Before your appliancs
is
connected to file
gas supply
check the ensure that the gas
category and pressure
specifications shown in the data
plate corresponds with your gas
supply,
/f necessofy ca//
authorized
ierWce for
adjusting to gas category.
^This
appliance
shall
be
installed in accordance with the
regulations in force and only
used in a well ventilated
space.
Read the instructions
before
installing or using this appliances.
In the
in feres/
of
safefy
this
appliances must be installed
and/or
serviced by a
compefenf
person
as stated in the gas safety
regulations
currenf
editions.
■■ Please refer to the data plate
far details about gas supply and
pressures.
The appliance must not be
installed in
a room
without
a
window or other controllable
opening. If is installed In a room
without a door which opens
directly to tohe outside, a
permanent opening is required.
The air circulation should be 2
m3/h per kW of burners.
Connection of
the gas hose
to
tho
oven

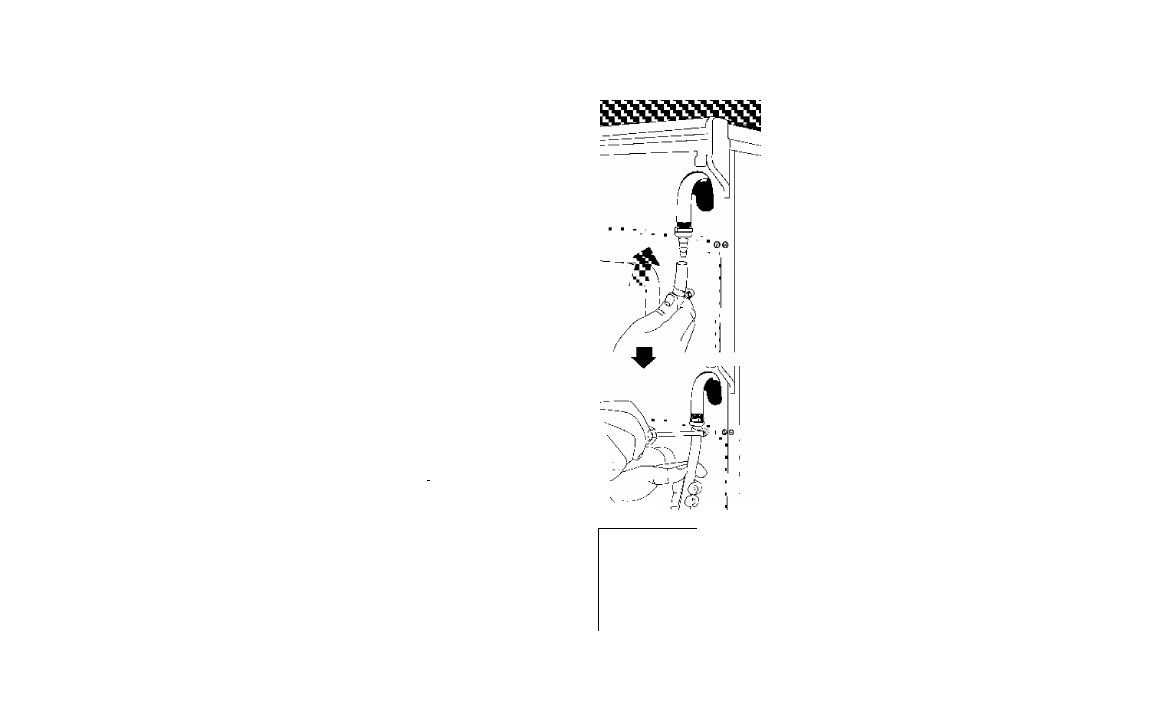

Convenient position is selected by interchanging
the hose nozzle and plug according to the
location of the main gas inlet valve. If you
make a connection with a flexible metal hose
,
focofe o seal between the main gas pipe.
The inner diameter of the flexible hose, which
the butane hose nozzle is connected, should
be 6mm for the house-type gas tubes.
The inner diameter of the flex/We /lose, which
the natural hose nozzle Is connected, sfioe/d
be 15mm. foe hose should tightly be fitted to
the hose nozzle by squeezing with a clamp.The
plastic hose and 1$ soaked in bat water
for one minute to soften and inserted fully
into the hose nozzle. The damp is fcrsfened
securely by a screw driver. The other end
of the hose is connected to the gas valve
with the same operation.
The hose should be replaced before its Iasi
expiry date.
p'^Q
Hcs& nozzh
I I
ss
s
m Sm s m s m s
Caution!
Make the oven connection to the gas
inlet valve, ffie hose length must be
short and be sure that there is no
leakage. Ihe hose used should not be
longer than 125 cm for safety.
0
hoM
^
0-rif\g
1
fsecrjjr
DQZzie ^
1Ю
i
H
ozz
/
q
NG
Connection of file
gae hose
to
the
oven
Convenient position Is selected by
interchangir\g the hose nozzle and
plug according to
ffte
location of
the main gas Inlet valve. The plastic
hose end is soaked in hot wafer
for one minute to
soften and
inserted fully into the hose nozzle.
The clamp is fastened securely by
a
screw driver, foe
oiher end of
the hose
is connected to ffte gos
valve with the
same
operation.
Gas
ieokege control
During
control, be sure that
ffte con/то/
knobs are closed and the gas inlet
valve is open. Apply soap bubbles
to the connections for leakage control.
In case leakage
exis/s,
buble will
appear. In such case, check
fhe gos
connectiorr immediately Do not
control gas leaks by using fire.
Cauilon!
Never use lighter or match flame,
for controlling the gas lockage.
Chmp
Tuba
Hose nozzle and elbow types
for Natural gas and
Butane/propane
