Installation of gas soakers
^Before your appliance is
connected to the gas supply
check the ensure that the gas
category and pressure
specifications shown in the data
plate corresponds with your gas
supply. If necessary call
authorized service
for
adjusting to gas category.
^This
appliance
shall
be
installed in accordance with the
regulations in force and only
used in a well ventilated space.
Read the instructions before
installing or using this appliances.
In the interest of safety this
appliances must be installed
and/or serviced by a competent
person as stated in the gas safety
regulations current editions.
^ Please refer to the data plate
for details about gas supply and
pressures.
The appliance must not be
installed in a room without a
window or other controllable
opening. If is installed in a room
without a door which opens
directly to tohe outside, a
permanent opening is required.
The air circulation should be 2
m3/h per kW of burners.

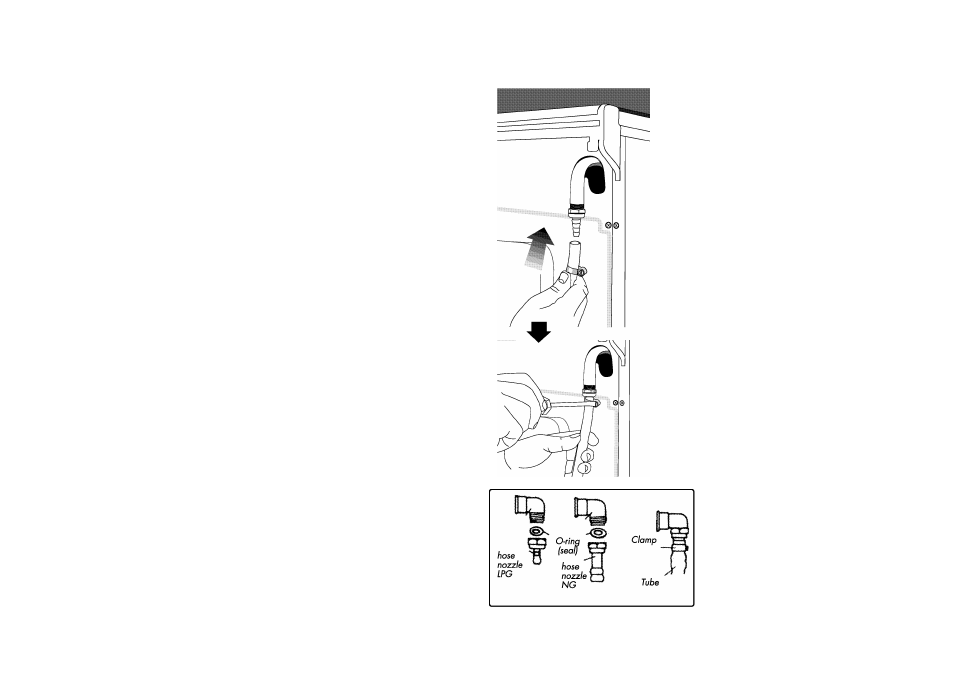

Connecfioit of file
gas hose
to
ihe oven
Convenient position is selected by interchanging
the hose nozzle and plug according to the
location of the main gas inlet valve. If you
make a connection with a flexible metal hose
, locate a seal between the main gas pipe.
The inner diameter of the flexible hose, which
the butane hose nozzle is connected, should
be 6mm for the house-type gas tubes.
The inner diameter of the flexible hose, which
the natural hose nozzle is connected, should
be 15mm. The hose should tightly be fitted to
the hose nozzle by squeezing with a clamp. The
plastic hose end is soaked in hot water
for one minute to soften and inserted fully
into the hose nozzle. The clamp is fastened
securely by a screw driver. The other end
of the hose is connected to the gas valve
with the same operation.
The hose should be replaced before its last
expiry date.
plug
Hose nozzle
¥
Caution!
Make the oven connection to the gas
inlet valve, the hose length must be
short and be sure that there is no
leakage. The hose used should not be
longer than 125 cm for safety.
Connection of the gas hose
to the
oven
Convenient position is selected by
interchanging the hose nozzle and
plug according to the location of
the main gas inlet valve. The plastic
hose end is soaked in hot water
for one minute to soften and
inserted fully into the hose nozzle.
The clamp is fastened securely by
a screw driver. The other end of
the hose is connected to the gas
valve with the same operation.
Gas ieakage contra!
During control, be sure that the control
knobs are closed and the gas inlet
valve is open. Apply soap bubbles
to the connections for leakage control.
In case leakage exists, buble will
appear. In such case, check the gas
connection immediately. Do not
control gas leaks by using fire.
Caution!
Never use lighter or match flame,
for controlling the gas lockage.
Hose nozzle and elbow types
for Natural gas and
Butane/propane
