In models with '' covered terminal block"
In mix models a cable supplied with a plug with your oven (H05 V V-F 3G
1,5 mm2)
If a cable without a plug is provided together with
your oven (HOS V V-F 3G 2,5 mm2 )
Take care to connect as below:
Brown cable = L (Live)
Blue cable = N (Neutral)
Green/Yellow cable = E (Earth )
If your oven is supplied without supply cord use schema-1 to choose
supply cord and use schemo-ll for installation of cord.
The cable length should be max 2m long for isolation safety.

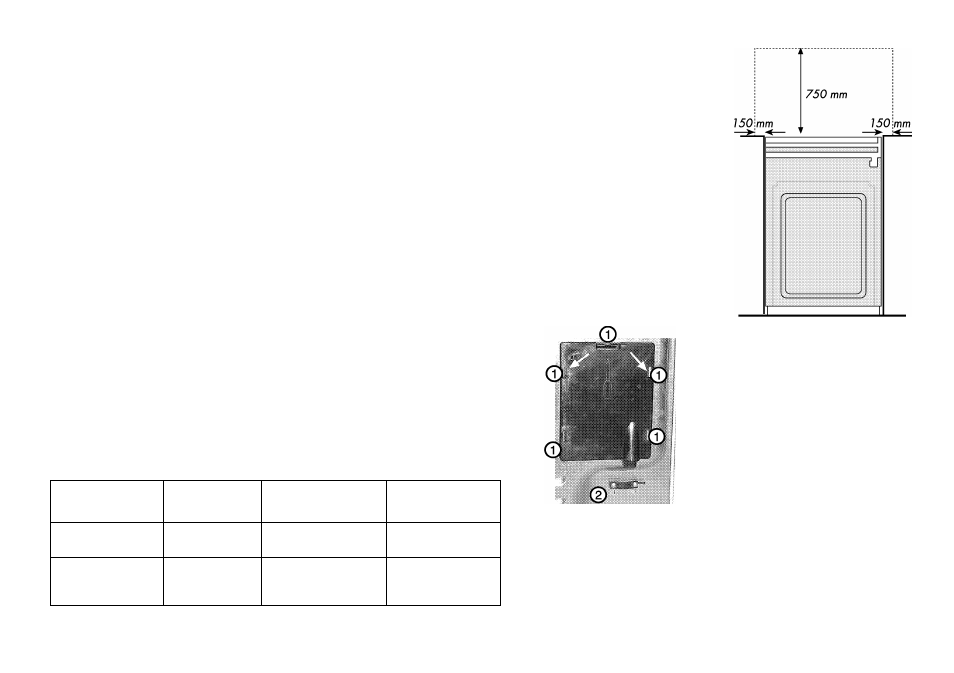

Open the terminal block cover (1).
Connect the supply cable according to wiring diagram on the rear cover.
Assembly the terminal block cover to its place.
The mains cable must pass through the cable clomp (2).
Fix the supply cable to main body with two screw via cable tightener (2).
Your oven is suitable for single and three phase connection.
<^The mains cable should be routed away from the appliance and in
particular ventilation slots, the vent outlet and should not be obstructed when
pushed in to position between the appliance and the wall and/or cabinet.
rChO
>0-0
^o«o
-¡7
0-^0
'-a-o
—OihO
AC 220/230/240 V
-
0-0
0-0
-
0-0
l^o^o
LO-O
-OihO
3N AC 380/400/415 V
0-0
L
q
-O
-
0-0
7^ 0-^0
Loo
-OihO
2N AC 380/400/415 V
Schema II
Connection Type
Monophase
Three phase
with Neutral
Two phase
with Neutral
Voltage
220/230/
240 V
380/400/415 V
380/400/415 V
Supply cord type
(max 2m long)
3x2,5
mm2
H05 V V-F
5x2,5 mm2
H05 V V-F
4x2,5 mm2
H05 V V-F
Schema I
Adjacent side walls above the
appliance must not be nearer
to the cooker than / 50 mm
and should be of heat resistant
material. Leave at least 750
mm clearance above the
hotplates.
The appliance should be
located on a level surface.
The two front feet can be
adjusted os required. To
ensure that your appliance is
standing level adjust the two
front feet by turning clockwise
or counterclockwise until the
product is in firm contact with
the floor.
