ENGLISH

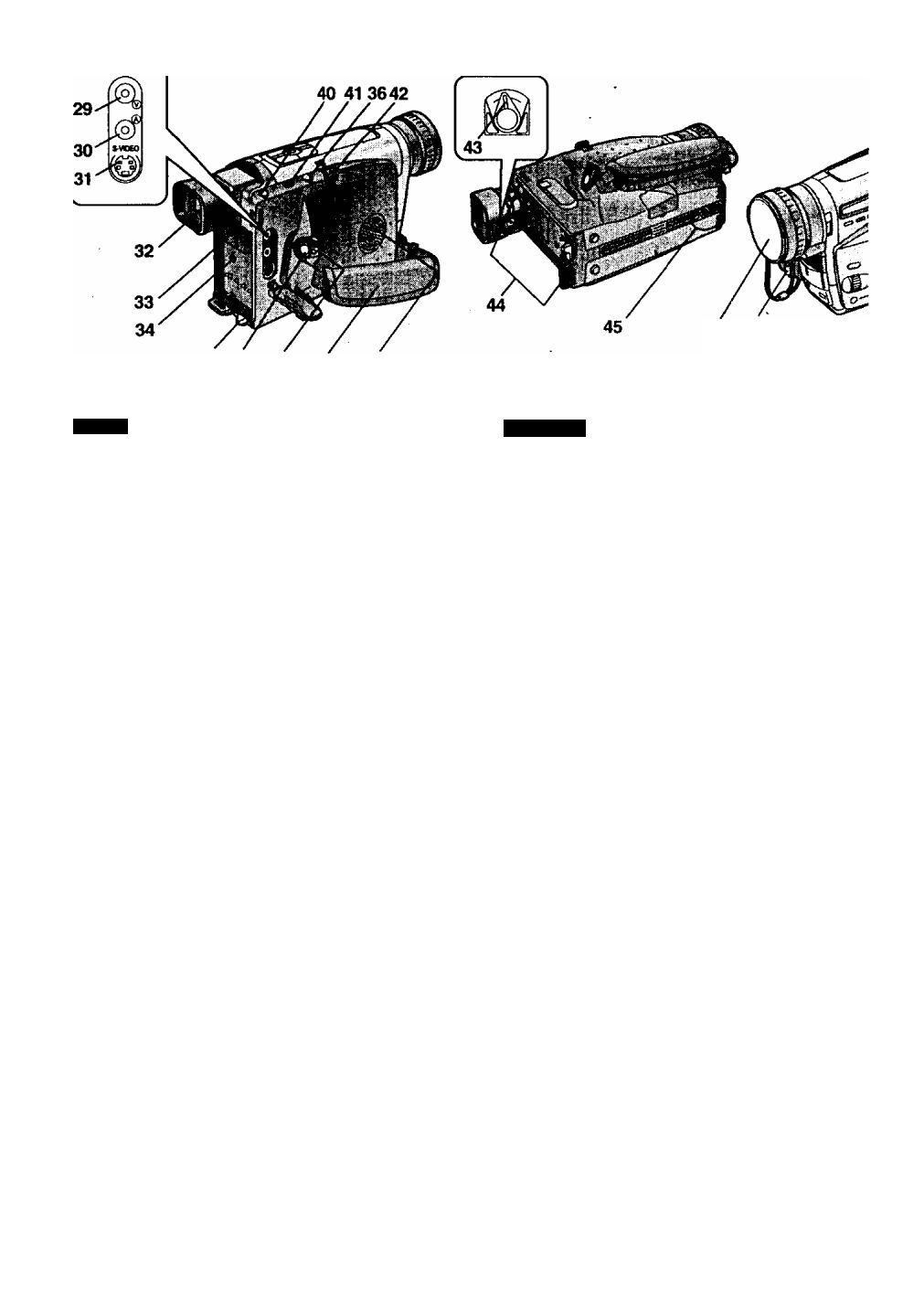

29 Video Output Socket [®] (-♦ 76,148)
30 Audio Output Socket [0] (-» 76, 148)
31 S-VIdeo Output Socket [S-VIOEO] (-» 76,148)
32 Finder (-» 40. 50, 84)
Due to limitations in LCD production technology, there
may be some tiny bright or dark spots on the Finder
screen, the whole screen may have a slight colour cast,
and flickering may occur However, this is not a
malfunction and does not affect the recorded picture.
33 Cover of the Button-type Battery’s Compartment
[BACKUP BATTERY] (-» 54)
34 DC Input Socket [DC IN] (-» 18)
35 Battery Eject Lever [<JBATTERY EJECT] (•
24)
36 Recording Start/Stop Buttons (-» 58, 60)
Use either of these buttons depending on the recording
angle.
37 Off/On Mode Selector Switch [CAMERA/OFF/VCR)
(-► 24, 60, 70, 84)
38 Grip Belt (-» 50)
39 Speaker (*^ 70)
40 Cassette Eject Button [^ EJECT] (-» 42)
41 Date/TImeTritle Button [DATE/TITLE] (•» 58,134)
42 Zoom Lever [W/T] (-» 66,96)
Volume Adjustment Lever [-VOL+] (-» 70)
43 Eyepiece Corrector Lever (<4 50)
44 Shoulder Strap Holders (*4 52)
45 Tripod Receptacle
46 Lens Cap (-» 50,110)
47 Lens Cap Holder (^ 50)
