Two Way Car Alarm System MONGOOSE EMS 1.7R
3
ENGLISH
10. To enable the mode push button 1 of the transmitter, to disable it push button 2. If the
Software switch includes more than two states, follow the instruction within a respective
line of the table below.
11. After altering the switch mode value press the override switch to proceed to the next
switch. To proceed to the next switch group, turn the ignition off/on and repeat the above
procedure.
12. To exit this programming mode, turn the ignition off and press the override switch.
Installer Software Switches
Software Switch Function
Default
Button 1
Button 2
(LED ON)
(LED OFF)
1 1 Electric/Vacuum Locking
0.6s
0.6s
4s
1 2 Single/Double Locking Pulse
Single
Single
Double
1 3 Single/Double Unlocking Pulse
Single
Single
Double
1 4 Armed Output
Grounded while
Grounded while
Grounded while
(Brown/white wire)
armed (for NC relay)
armed (for NC relay)
disarmed
(for NO relay)
1 5 Blocking in Trouble Situation
OFF
ON
OFF
1 6 Positive Programmable Input
Door (+) Input
Door (+) Input
Shining Light
Warning
1 7 Dome Light Car Software Switch
OFF
ON
OFF
1 8 Programmable Output
20 second
20 second
2 Stage Unlock
Comfort Close
Comfort Close
2 6 Manual arming with the key via the CDL
OFF
ON
OFF
control input
Инструкция по установке
EMS 1.7R
14

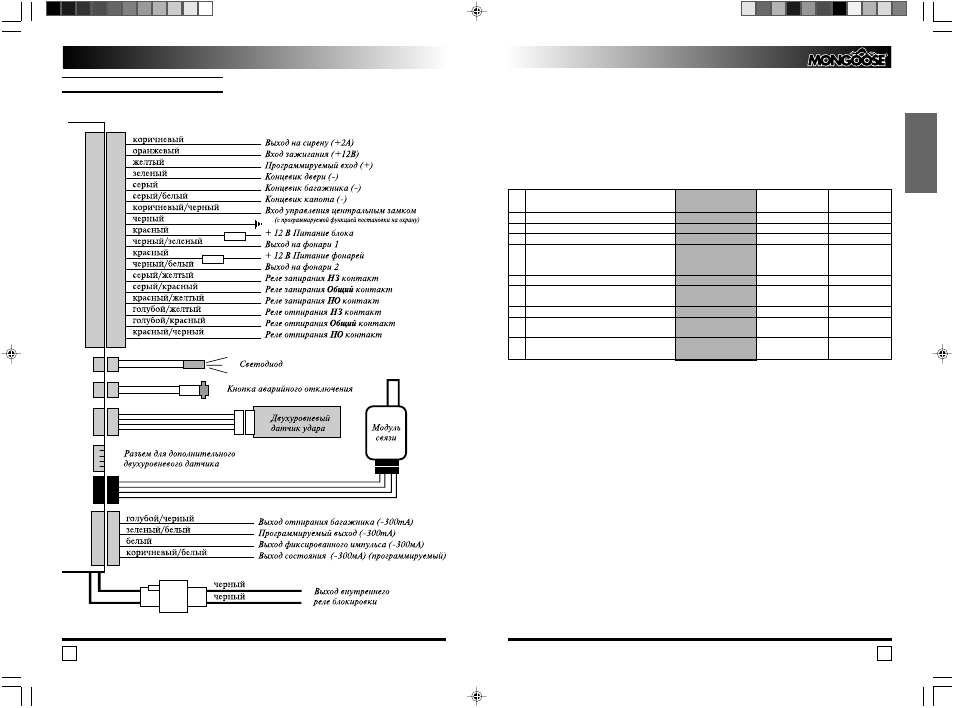

СХЕМА ПОДКЛЮЧЕНИЙ
