2. INSTAllATION Of WATEr TANK pAcKAgE vK-20
Attach the package to the sauna stove before its burn-in to
ensure that any fumes come off it and the fireproof paint on
the front panel hardens. If the water tank is installed after-
wards, make sure the sauna is well ventilated during the first
few heatings.
INSTALLATION PROCEDURE
FOR THE WATER TANK PACKAGE
1. Detach the stove’s back plate (Figure 1)
2. Detach the stove’s side mantle (Figures 2a and 2b)
3. Install the water tank support (Figure 3)
4. Detach the tap from the water tank (Figure 4a)
5. Hang the water tank onto the attachment (Figure 4b)
6. Install the water tank’s back mantle (Figure 5)
7. Install the water tank’s front panel (Figure 6)
8. Install the mantle and the tap (Figure 7)
9. Attach the water tank’s lid (Figure 8)
10. Install the water tank’s intermediate lid (Figure 9)
11. Install the sliding cover (Figure 10)
Perform the installation in the order given on the following
pictures.
- lift back plate 10 mm upwards.
- pull lower edge 15 mm out.
- lift 15mm.
- remove the back mantle.
reinstallation in opposite order.

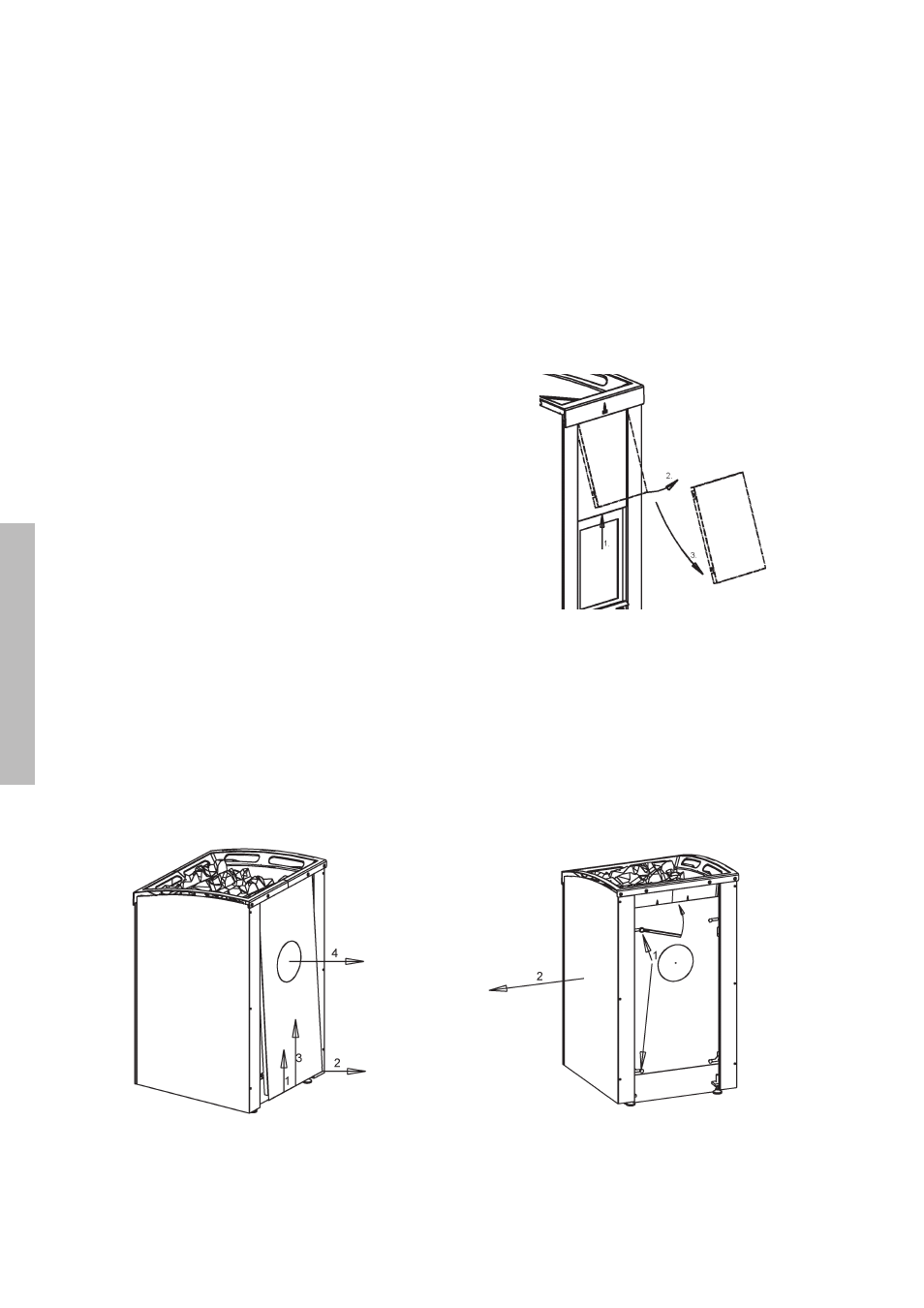

figure 1. detaching the back plate
figure 2a. detaching side mantle, front panel
The side mantle is attached with two attachment bolts to the front
panel and to bolts in the backmost internal mantle. locate the front bolts
like this:
- On KH-20 stoves, remove the front cover plate as shown in the picture
(one bolt beneath it in the upper corner).
- On KO-20 stoves, open the door (one bolt beneath it in the upper corner)
- remove the ash door (one bolt beneath it in the upper corner).
- Open upper and lower side mantle attachment bolts.
- pull mantle package off the stove.
- lean the mantle package against a wall, so that the support struts do not
get damaged.
figure 2b. detaching side mantle, back panel
2.
