Black plate (3,1)

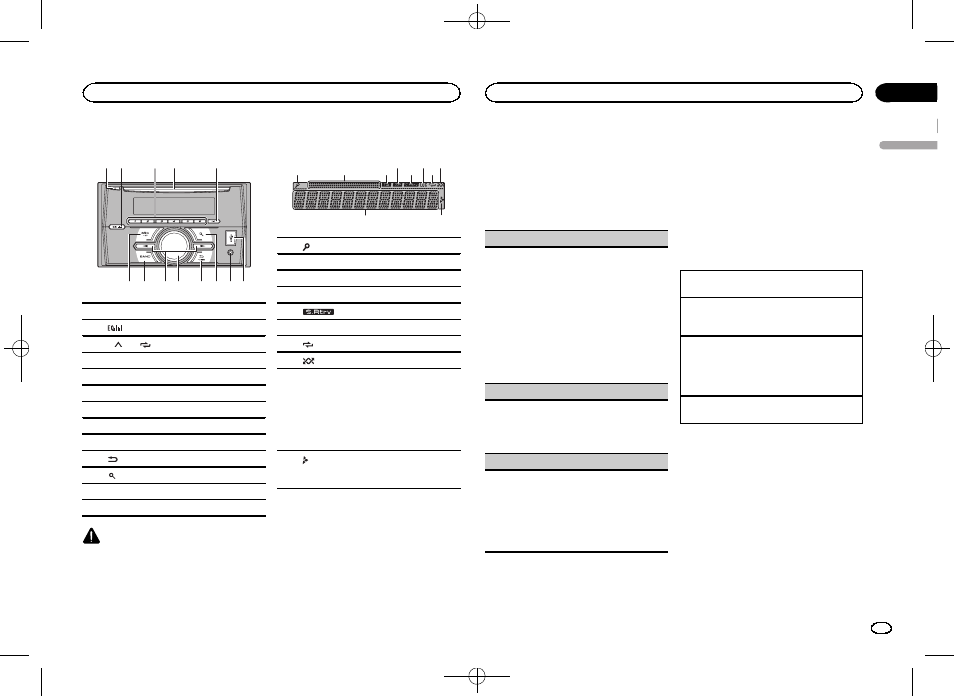

Head unit
1 2
4
5
8 9
7
a
c
6
b
d
3
1
h (eject)
2
(equalizer)
3
1/
to
6/
4
Disc loading slot
5
DISP
6
SRC/OFF
7
BAND
8
c/d
9
MULTI-CONTROL (M.C.)
a
(back)/
DIMMER (dimmer)
b
(list)
c
AUX input jack (3.5 mm stereo jack)
d
USB port
CAUTION
Use an optional Pioneer USB cable (CD-U50E)
to connect the USB storage device as any device
connected directly to the unit will protrude out
from the unit, which could be dangerous.
Display indication
2
1
3
7
5
9
4
6 8
a
1
(list)
2
Sub information section
3
TA (traffic announcements)
4
TP (traffic program identification)
5
(sound retriever)
6
LOC (local seek tuning)
7
(repeat)
8
(random)
9
Main information section
! Tuner: band and frequency
! RDS: program service name, PTY infor-
mation and other literal information
! CD player and USB storage device:
elapsed playback time and text informa-
tion
a
Appears when a lower tier of folder or menu
exists.
Set up menu
1
After installation of this unit, turn the
ignition switch to ON.
SET UP appears.
2
Turn M.C. to switch to YES.
# If you do not use the unit for 30 seconds, the set
up menu will not be displayed.
# If you prefer not to set up at this time, turn M.C.
to switch to
NO.
3
Press M.C. to select.
4
Follow these steps to set the menu.
To proceed to the next menu option, you need to
confirm your selection.
LANGUAGE (multi-language)
This unit can display the text information from a
compressed audio file even for information em-
bedded in English, Russian or Turkish.
! If the embedded language and the selected
language setting are not the same, text infor-
mation may not display properly.
! Some characters may not be displayed prop-
erly.
1 Turn M.C. to select the desired setting.
РУС (Russian)—TUR (Turkish)—ENG (Eng-
lish)
2 Press M.C. to confirm the selection.
CLOCK SET (setting the clock)
1 Turn M.C. to adjust hour.
2 Press M.C. to select minute.
3 Turn M.C. to adjust minute.
4 Press M.C. to confirm the selection.
FM STEP (FM tuning step)
Use
FM STEP to set FM tuning step options (seek
step settings).
1 Turn M.C. to select the FM tuning step.
100 (100 kHz)
—50 (50 kHz)
2 Press M.C. to confirm the selection.
QUIT appears.
! The manual tuning step is fixed at 50 kHz.
5
To finish your settings, turn M.C. to select
YES.
# If you prefer to change your setting again, turn
M.C. to switch to NO.
6
Press M.C. to select.
Notes
! You can set up the menu options from the
system menu and initial menu. For details
about the settings, refer to System menu on
page 6 and Initial menu on page 7.
! You can cancel set up menu by pressing
SRC/OFF.
Basic operations
Turning the unit on
1 Press SRC/OFF to turn the unit on.
Turning the unit off
1 Press and hold SRC/OFF until the unit turns
off.
Selecting a source
1 Press SRC/OFF to cycle between:
RADIO
—CD—USB—AUX
! USB MTP displays while the MTP connection
is in use.
Adjusting the volume
1 Turn M.C. to adjust the volume.
Note
When this unit
’s blue/white lead is connected to
the vehicle
’s auto-antenna relay control termi-
nal, the vehicle
’s antenna extends when this
unit
’s source is turned on. To retract the anten-
na, turn the source off.
English
Using this unit
3
Section
Using this unit
En
02
<QRB3357-A>3
