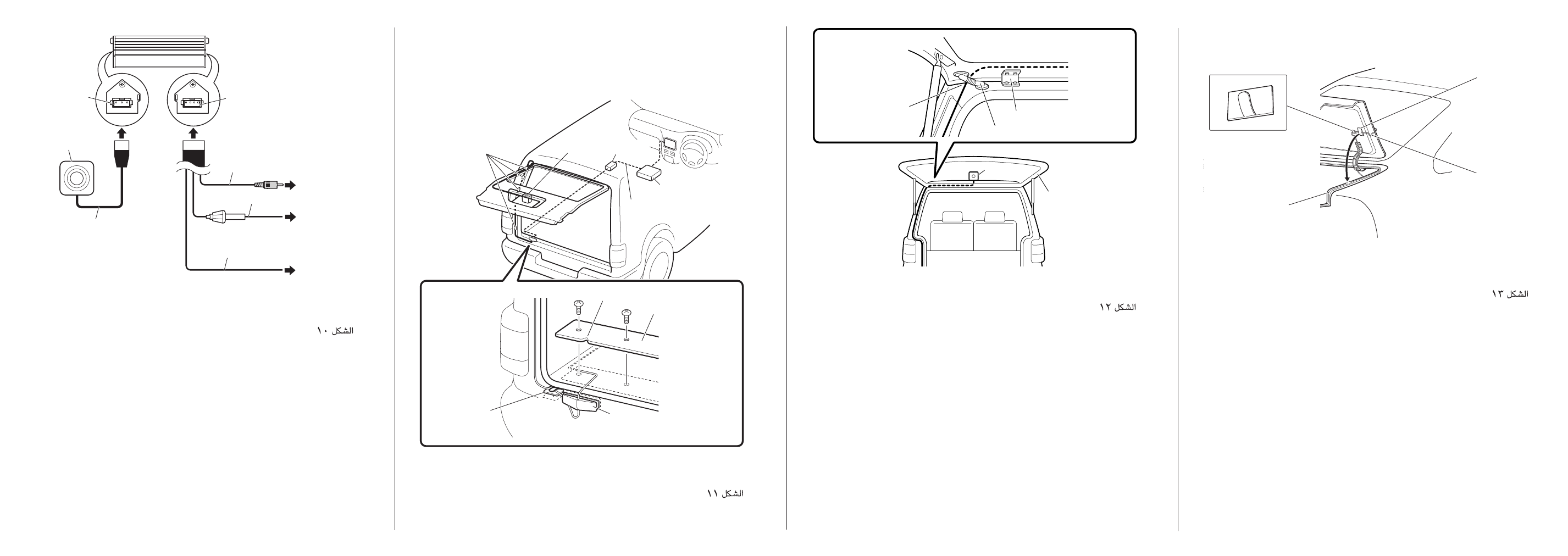

① Pull out from here

② Hinge

③ Harness cover

⑤ Hatch

④ Rear view

camera

Fig. 10

Рис. 10
圖 10

Fig. 11

Рис. 11
圖 11

Fig. 12

Рис. 12
圖 12

Fig. 13

Рис. 13
圖 13

① Power supply unit

③ RCA power supply cable

connector

② Rear view camera

connector

⑥ Red

⑤ RCA pin

⑧ Black

⑦ Fuse (1A) 3 m

3 m

④ Rear view camera

1.5 m

7 m

① Clamps

② Rear view

camera

④ Product with a video

input jack (Hideaway
unit etc.)

⑥ Made with a rasp etc.

⑦ Scuff plate

⑧ Clamp

⑨ Waterproof pad

Attach the waterproof pad
using double-sided tape.

③ RCA power

supply cable

⑤ Power supply

unit

② Waterproof pad

① Clamps

③ Rubber packing

④ Make a U-shaped loop in

the lead outside the rubber
packing to prevent rain-
water from flowing along
the lead into the interior
of the vehicle.

Attach the waterproof pad
using double-sided tape.
