Connections

This section involves various methods of connecting the product to other external components.
Before moving or installing the product, be sure to turn off the power and disconnect the power cord.

Connecting the Speakers

Front Speakers

ei

Place these speakers in front of your listening position, facing inwards (about 45°)
toward you. Place the speakers so that their tweeters will be at the same height
as your ear. Align the front face of the front speakers with the front face of the
centre speaker or place them slightly in front of the centre speakers.

Centre Speaker

f

It is best to install it at the same height as the front speakers. You can also install it
directly over or under the TV.

Surround Speakers

hj

Place these speakers to the side of your listening position.

If there isn't enough

room, place these speakers so they face each other. Place them about 60 to
90cm above your ear, facing slightly downward.

*

Unlike the front and centre speakers, the surround speakers are used to

handle mainly sound effects and sound will not come from them all the time.

Subwoofer

g

The position of the subwoofer is not so critical. Place it anywhere you like.

SW

Connections

Position of the product

Place it on a stand or cabinet shelf, or under the
TV stand.

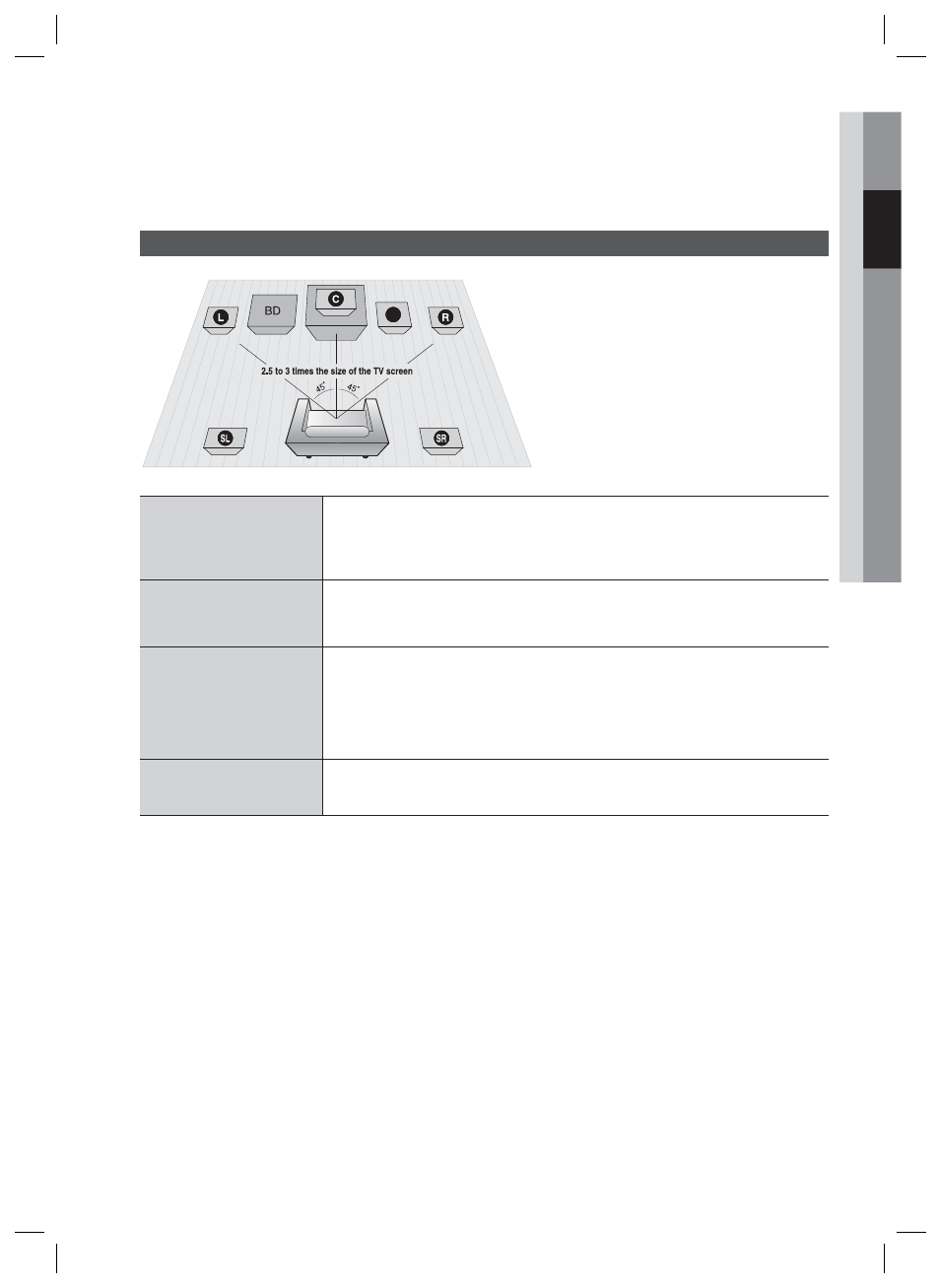

Selecting the Listening Position

The listening position should be located about 2.5
to 3 times the distance of the TV's screen size
away from the TV.
Example : For 32" TV's 2~2.4m

For 55" TV's 3.5~4m

NOTE

If you place a speaker near your TV set, screen colour may be distorted because of the magnetic fi eld generated by the
speaker. If this occurs, place the speaker away from your TV set.

CAUTION

Do not let children play with or near the speakers. They could get hurt if a speaker falls.
When connecting the speaker wires to the speakers, make sure that the polarity (+/ –) is correct.
Keep the subwoofer speaker out of reach of children so as to prevent children from inserting their hands or alien substances
into the duct (hole) of the subwoofer speaker.
Do not hang the subwoofer on the wall through the duct (hole).

!
