Planer ENG
SYMBOLS
OPERATING
INSTRUCTIONS
1. SAFETY ON/OFF SWITCH
The switch is locked off to prevent accidental
starting. Depress the lock off button (2) then
on/off switch (1) and release lock off button (2).
The machine is working now. To switch off just
release the on/off switch (See A)
2. CUTTING DEPTH ADJUSTMENT
Smaller cutting depth of 0-1mm (Max. 2.0mm)
is best for most surface planing or rebating.
Rotate the cutting depth adjustment(4) to
set the required cutting depth on the scale
,Scale graduation = 0.125mm) . The clockwise
rotation increases the planing depth; the
counterclockwise rotation reduces the planing
depth. (See B)
3. ADJUST DUST EXTRACTION AND CHIP
EJECTION
Dust extraction can be adjusted to the right or
left side by manually. Rotating one end of the
dust extraction (5) until it stops (See C). The
arrowhead on the dust extraction indicates the
dust extraction direction.
Note: Due to the size and material of some
wood shavings e.g. wet or hard wood it is
possible for the dust extraction to become
blocked. Remove the plug from the mains
power supply, then using a wooden stick clear
the blocked dust extraction.
4. BASEPLATE STAND
Uplift the rear of the planer, the baseplate
stand (6) can make the machine to be set down
directly and protect the cutting blades from any
damage and the blades from damaging the
surface(See D). When planing, the stand will be
pushed away by the end of the wood. Always
check the stand is free to move on the base
plate (See E).
5. BLADE FITTING AND CHANGING
Warning: Remove power cord from
the socket before carrying out any
adjustments or changing blades.
The blade has two cutting edges, which can
be reversed .When replacing or reversing the
plane blades, the guide groove guarantees
constant height adjustment.
Note: Dull and worn blade cannot be reground
and must be replaced.
11
10

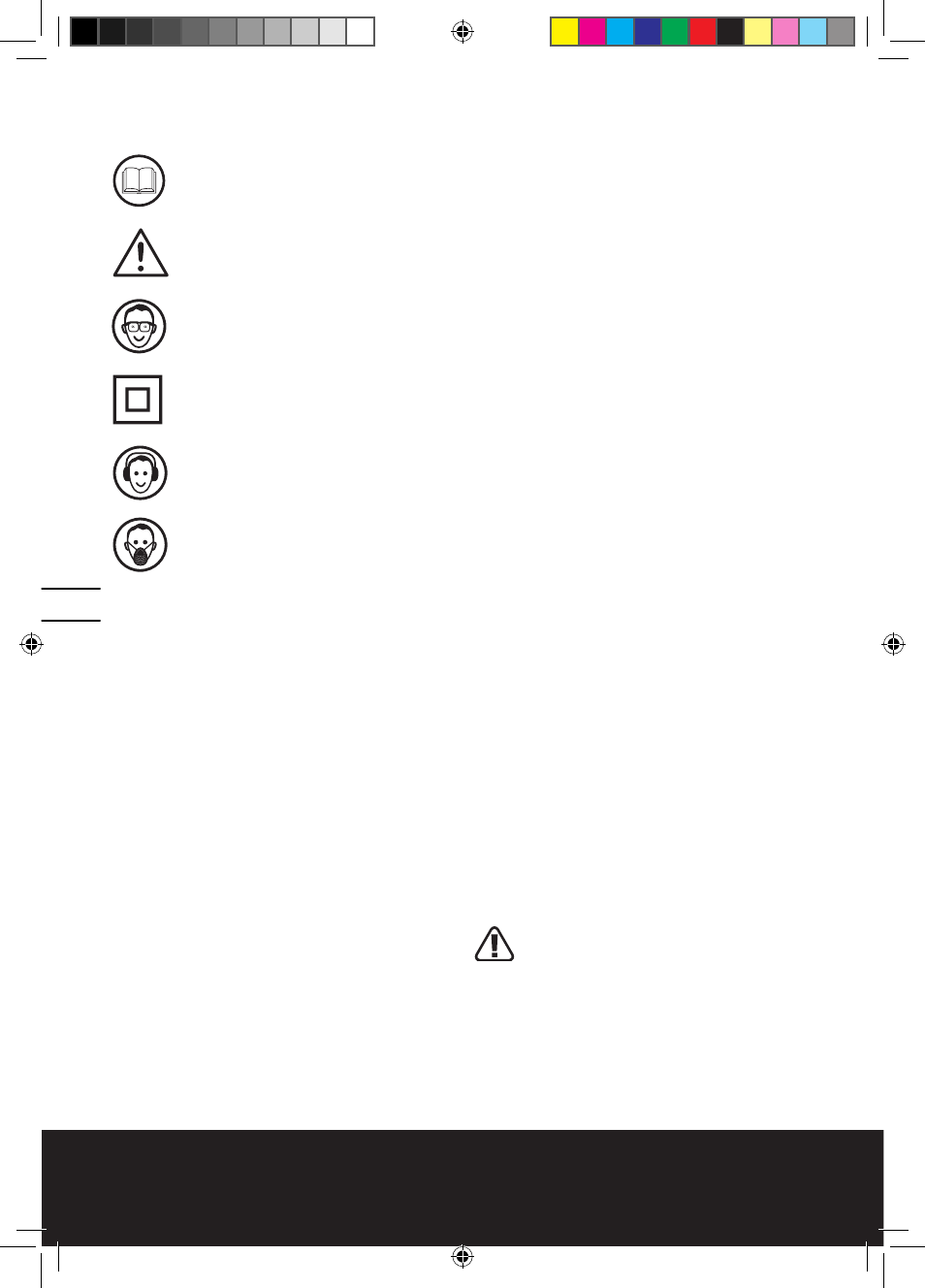

Read the manual
Warning
Wear eye protection
Double insulation
Wear ear protection
Wear dust mask
