11

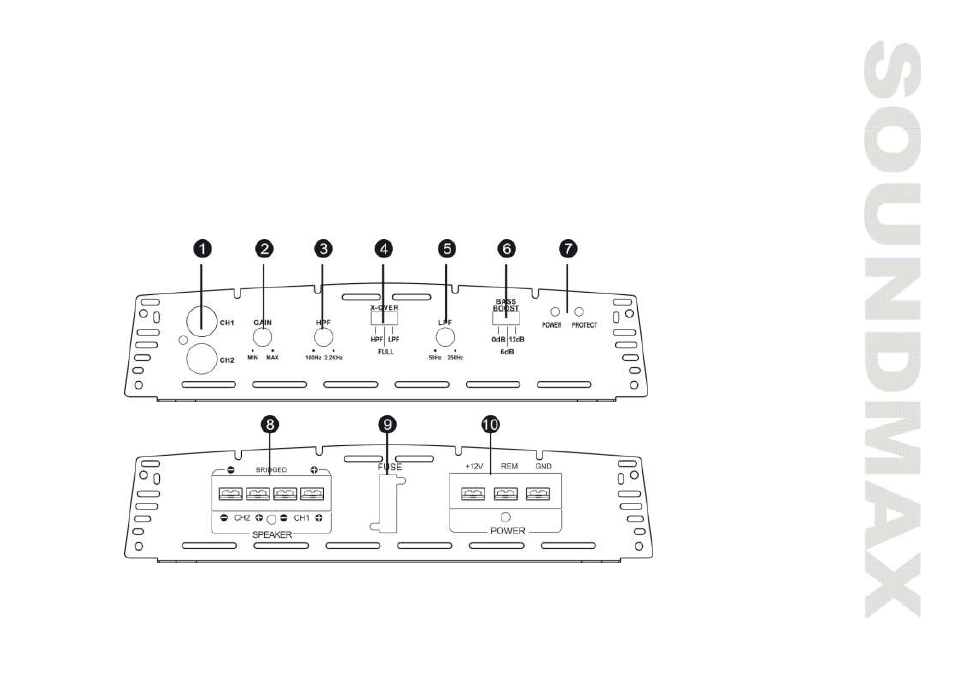

Operating elements and in/outputs
(1) CH1/CH2 inputs
(2) GAIN control
(3) High-pass filter (HPF) adjusting knob, the frequency ranges from 100Hz to 2.2kHz
(4) X-over switch (HPF/FLAT/LPF)
(5) Low-pass filter (LPF) adjusting knob, the frequency ranges from 50Hz to 250Hz
(6) Bass-boost control
(7) Indicator light (Green light means amplifier is working. Red light means self-protection mode of the
amplifier).
(8) Speaker connecting terminals
(9) Fuse
(10) +12 Power terminal, REM Remote turn-on terminal, GND Ground terminal.
Fig. 5
