Shoulder Press Assembly Guide: Assembling the Equipment
9
Installing the Center Upright Assembly
Attaching the center upright assembly and the accompanying seat mechanism
completes the frame of the equipment.
To attach the assembly:
1. Position the assembly on the base frame and against the crossbar as
shown in the following figure.

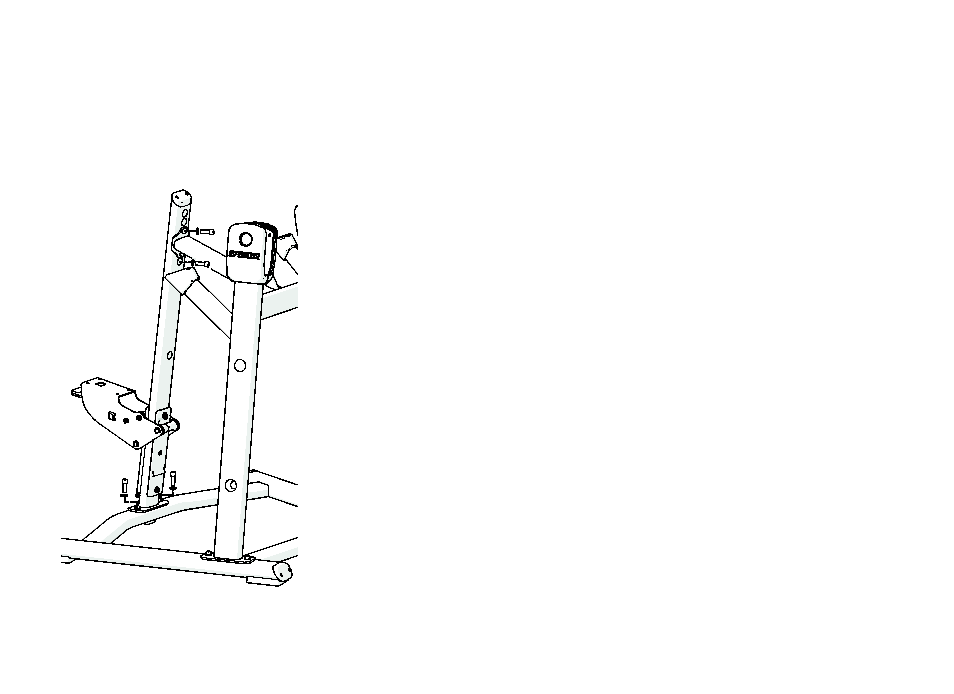

Figure 6: Center upright attachment
2. Place two M12 x 35 mm socket head cap screws and two 13 mm flat
washers into the screw holes in the base frame. Partially tighten the
fasteners.
3. Place two M12 x 35mm socket head cap screws and two 13mm flat
washers into the screw holes in the crossbar. Partially tighten the
fasteners.
4. Check that the frame is correctly aligned, then tighten all fasteners
completely.
