Replacement flaps available online
b) In Walls
Follow the instructions for “Wood and PVC/uPVC/Metal”, by using the
enclosed cutting template. Please note that additional tools, materials and
competent DIY skills may be required.
FOR SAFETY REASONS IT IS NOT RECOMMENDED TO FIT THIS
PRODUCT IN GLASS.

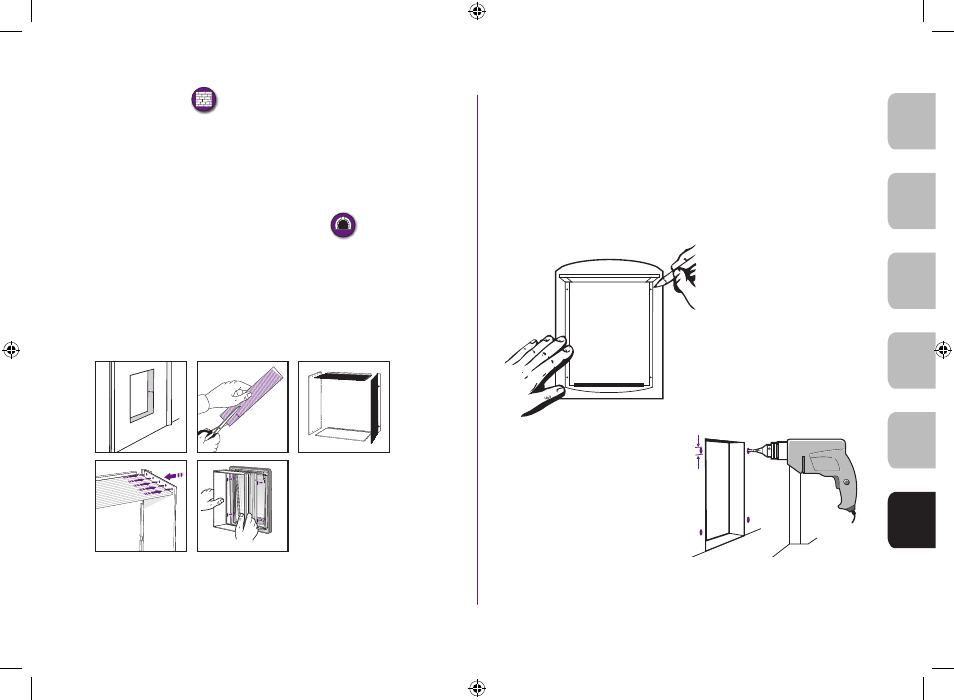

Optional tunnel fitting
For
Small
variants of this pet door, an optional tunnel extension suitable
for most thickness of doors up to 50 mm (2”) is available to purchase if
required. Please contact PetSafe
®
Customer Care Centre.
Measure the depth of the hole cut in your door and cut the 4 tunnel
pieces to this depth (X). Connect the 4 tunnel pieces together in a square
shape as indicated and fix the tunnel onto the external frame (with flap)
of the pet door.
Fitting your pet door
Your PetSafe
®
pet door is fitted with the closing panel on the
inside of your house.
If using the optional tunnel, it should be fitted at this stage - please refer to
the details on the previous page.
From the outside of the house, temporarily place the external frame (with
flap) into the hole and mark the screw holes as indicated
(Fig. 4).
Remove the pet door
and drill the holes with a
5 mm (
3
/
16
”) drill
bit
(Fig. 5).
5 mm
(
3
/
16
")
FIG.4
FIG.5
Fits brick walls
Optional tunnel
x
x
PLEASE NOTE: additional
sanding/trimming of the
cut out aperture may be
required when fitting the
tunnel. It is recommended
that the tunnels be glued on
to the frame and each other.
